Front Airbag Sensor: Installation: Installation

HINT:

• Use the same procedure for the RH side and LH side.
• The procedure listed below is for the LH side.

1. INSTALL FRONT AIRBAG SENSOR
   1. Check that the ignition switch is off.
   2. Check that the cable is disconnected from the negative (-) battery terminal.
      WARNING:

      Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

   3. Insert the pin (stopper) into the body hole.
      Fig 1: Installing Front Airbag Sensor Using SST

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION



      *1	Fulcrum Length

   4. Using SST, install the front airbag sensor with the bolt.
      • SST: 09961-00950

      without SST

      Torque: 9.0 N*m (92 kgf*cm, 80 in.*lbf)

      with SST

      Torque: 5.6 N*m (57 kgf*cm, 50 in.*lbf)

      NOTE:

      • Use a torque wrench with a fulcrum length of 250 mm (9.84 in.).
      • This torque value is effective when SST is parallel to the torque wrench.
      • If the front airbag sensor has been dropped, or there are any cracks, dents or other defects in the case or connector, replace it with a new one.
      • When installing the front airbag sensor, be careful that the SRS wiring does not interfere with or is not pinched between other parts.
      • Make sure that the pin (stopper) is securely inserted into the body hole.
      • Tighten the bolt while holding the front airbag sensor because the front airbag sensor pin (stopper) is easily damaged.
   5. Connect the connector to the front airbag sensor.
      NOTE:

      When connecting the airbag connector, take care not to damage the airbag wire harness.

      1. Before connecting the connector, check that the position of the white housing lock is correct as shown in the illustration.
         Fig 2: Identifying Housing Lock Position (White Part)

         Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Be sure to engage the connectors until they are locked (When locking, make sure that a click sound can be heard).

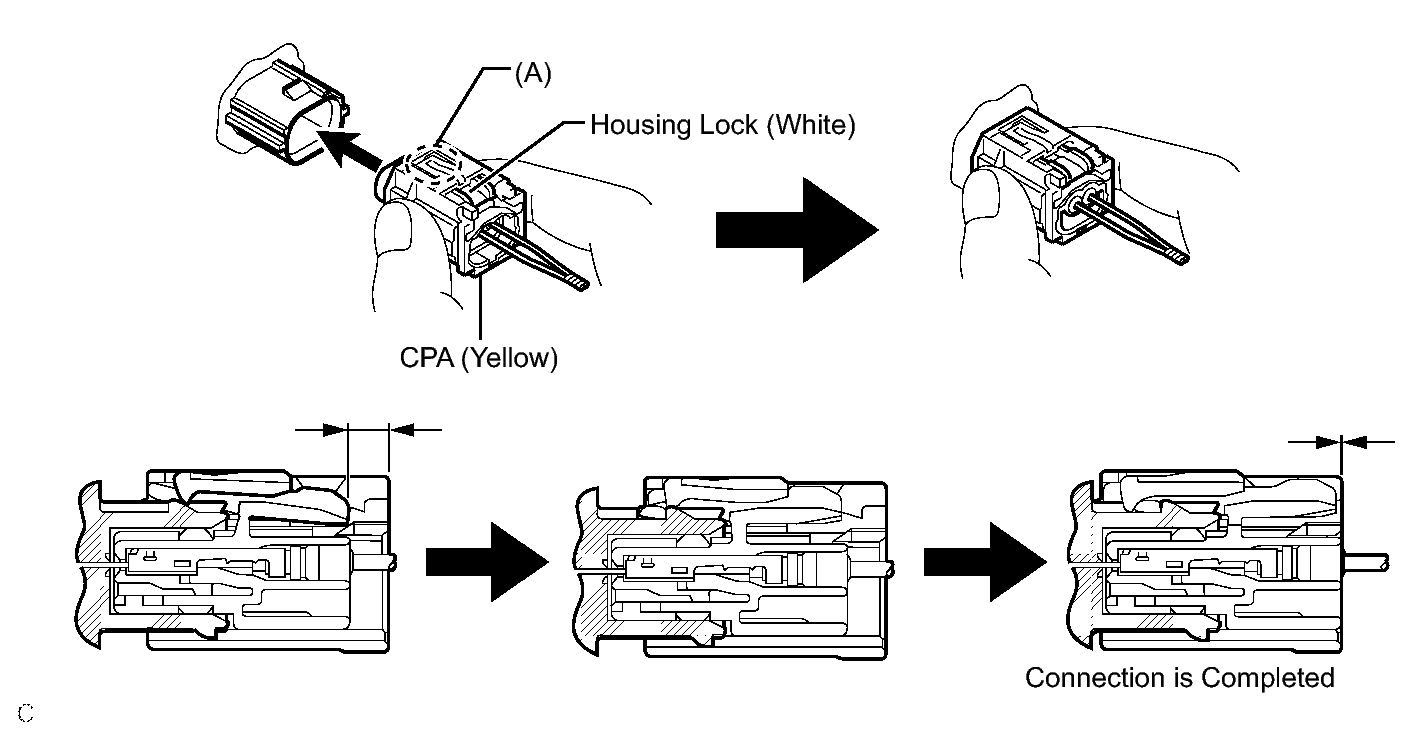

         Fig 3: Holding White Housing Lock And Part

         Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

         HINT:

         When engaged, the white housing lock will slide. Be sure not to hold the white housing lock and part (A), as it may result in an insecure fit.

   6. Check that there is no looseness in the installation parts of the front airbag sensor.
   7. Install the radiator side deflector LH with the 2 claws as shown in the illustration.
      Fig 4: Identifying 2 Claws

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. INSTALL RADIATOR GRILLE  . Refer to INSTALLATION - Step 1
3. INSTALL COOL AIR INTAKE DUCT SEAL  . Refer to INSTALLATION - Step 3
4. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
   NOTE:

   When disconnecting the cable, some systems need to be initialized after the cable is reconnected. Refer to INITIALIZATION .

5. PERFORM DIAGNOSTIC SYSTEM CHECK
   1. Perform a diagnostic system check. Refer to DTC CHECK / CLEAR .
6. INSPECT SRS WARNING LIGHT
   1. Inspect the SRS warning light. Refer to DIAGNOSIS SYSTEM .
