Air Conditioning (H/B): Notes

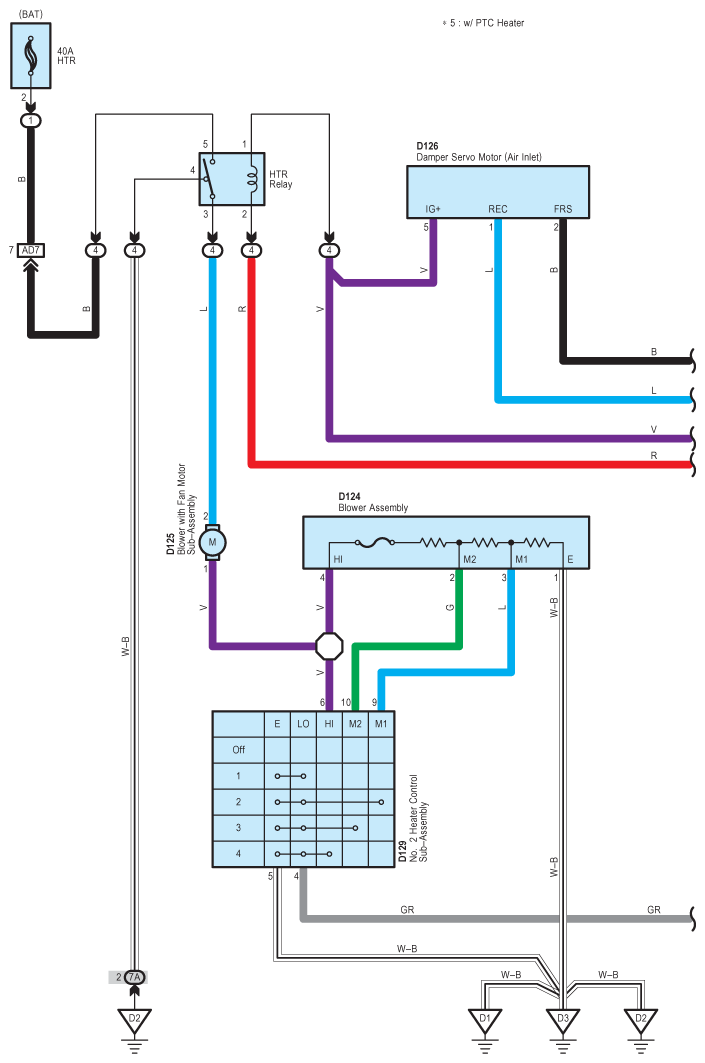

Fig 1: Air Conditioning (H/B) - Circuit Diagram (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

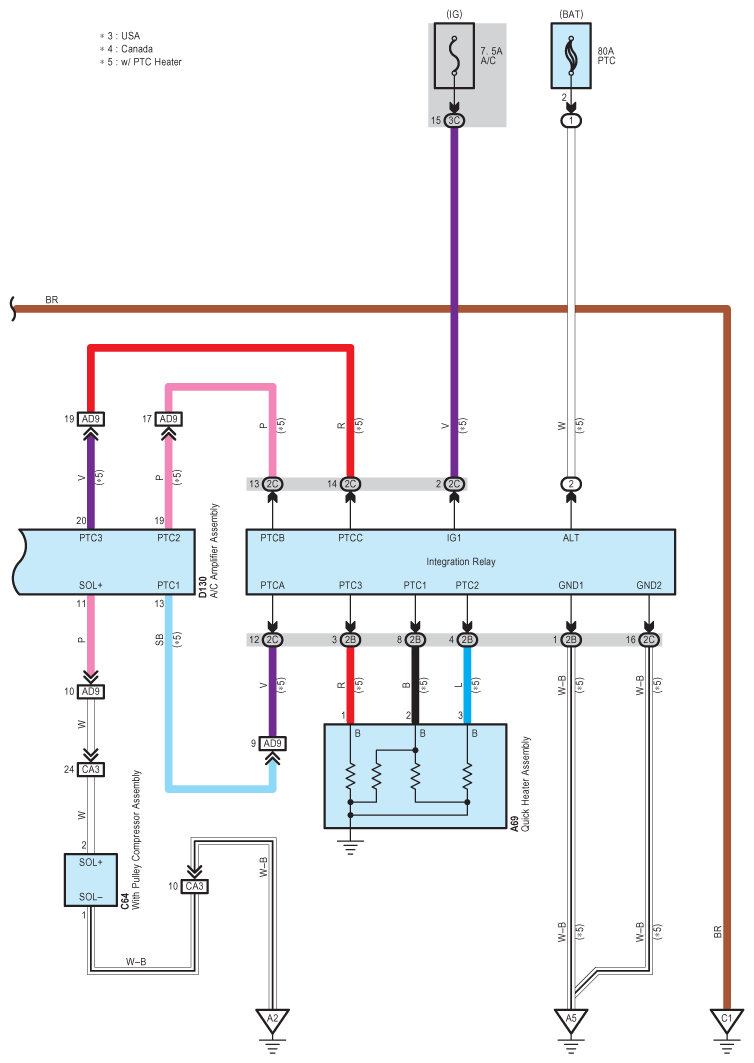

Fig 2: Air Conditioning (H/B) - Circuit Diagram (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

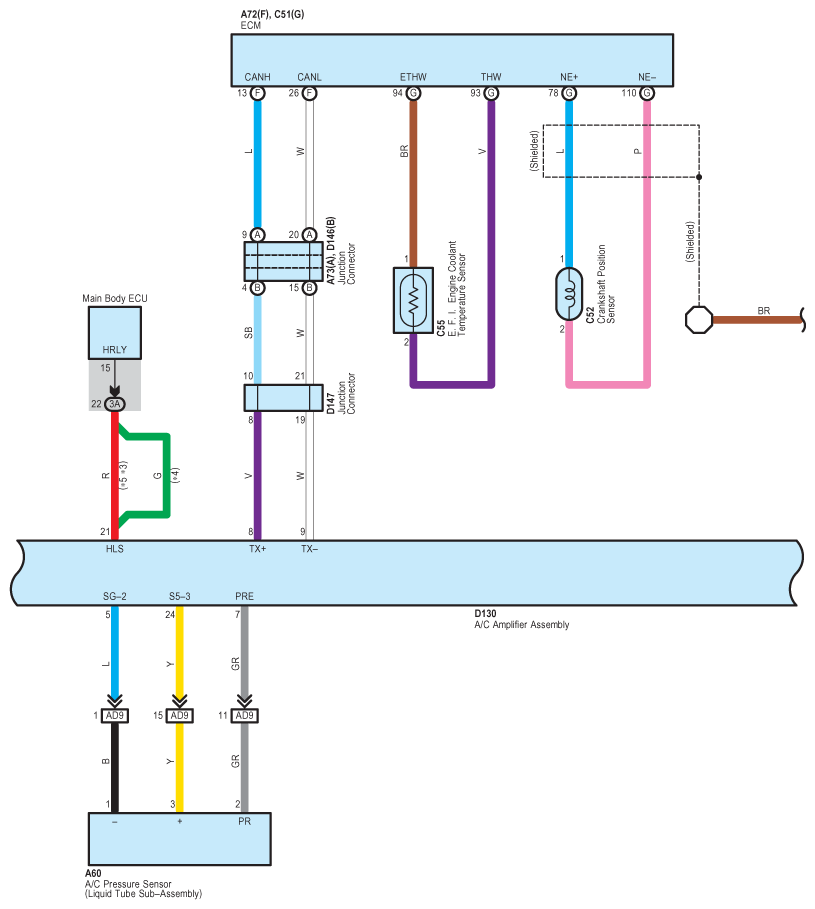

Fig 3: Air Conditioning (H/B) - Circuit Diagram (3 Of 4)

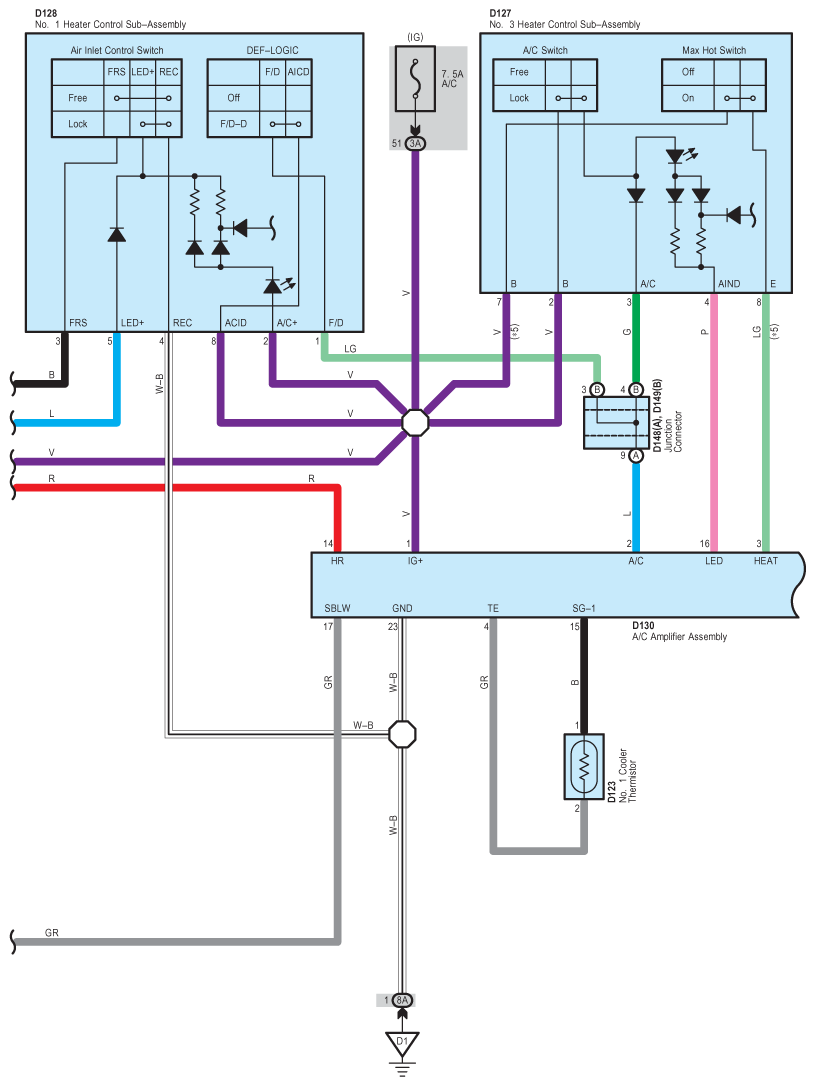

Fig 4: Air Conditioning (H/B) - Circuit Diagram (4 Of 4)
