Charging (H/B): Notes

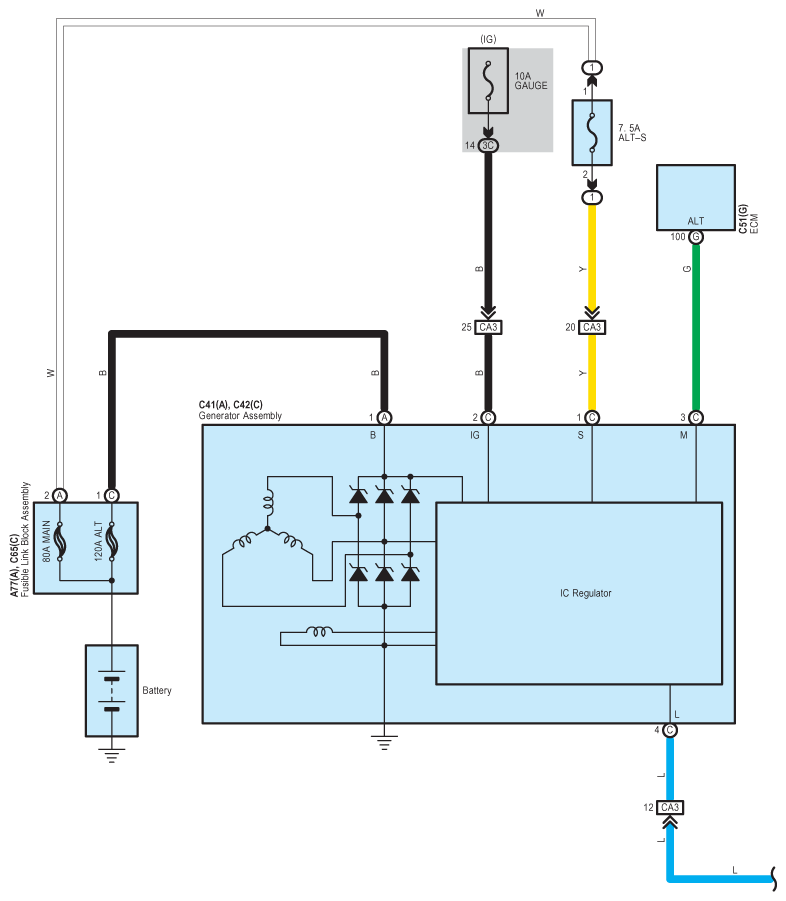

Fig 1: Charging (H/B) - Circuit Diagram (1 Of 2)
G08949244Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

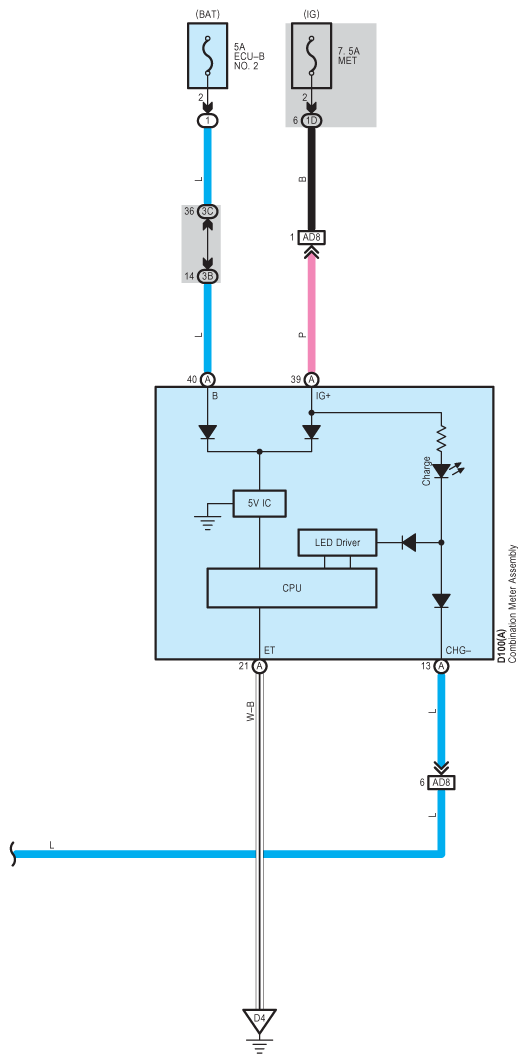

Fig 2: Charging (H/B) - Circuit Diagram (2 Of 2)
G08949245Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
