OEM System Circuits
›
Charging (S/D)
›
Notes
Charging (S/D): Notes

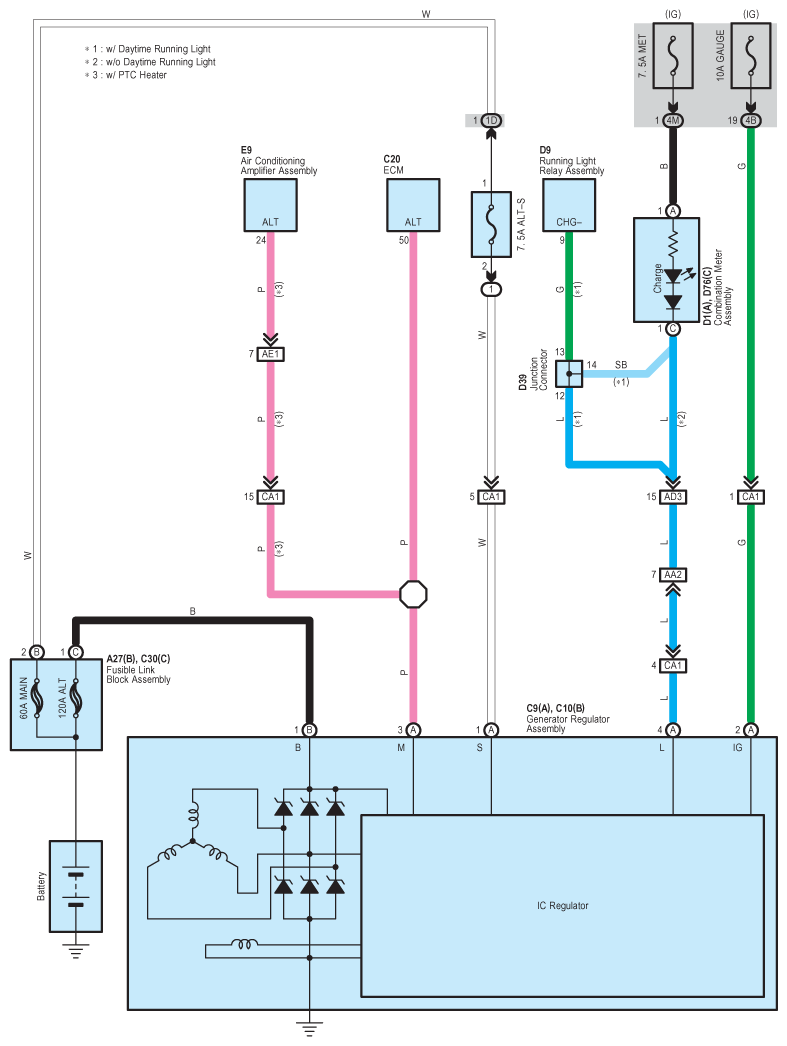

Fig 1: Charging (S/D) - Circuit Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
