OEM System Circuits
›
Headlight (S/D)
›
Notes
Headlight (S/D): Notes

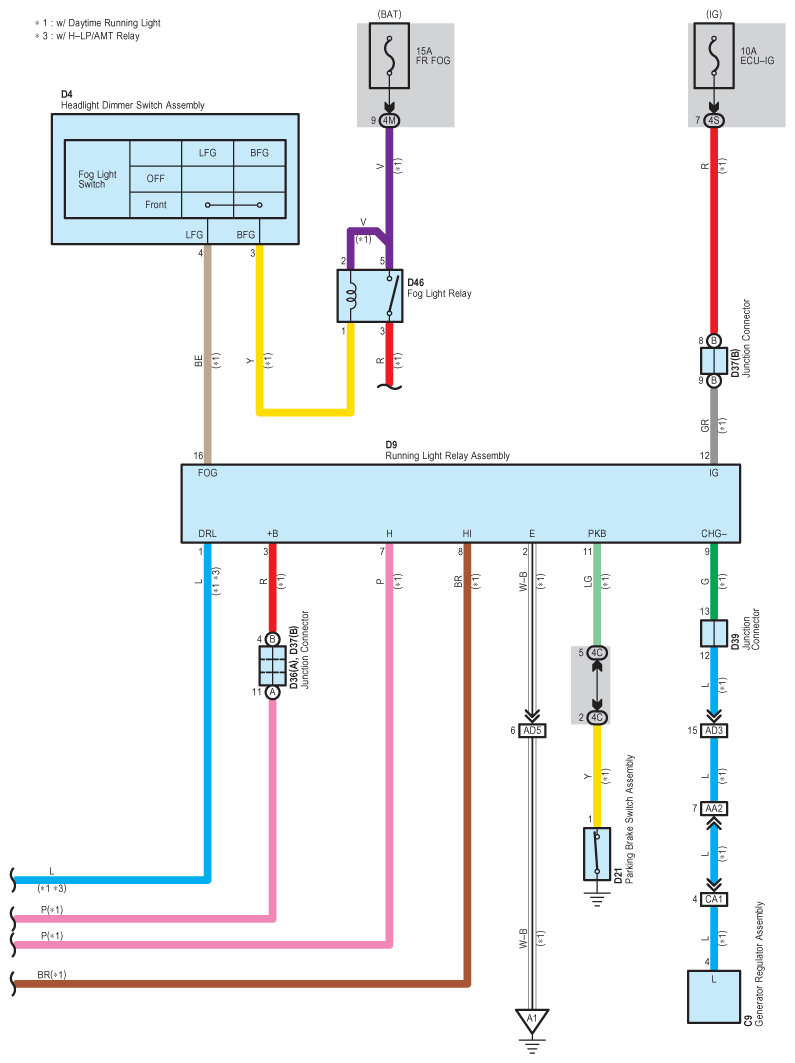

Fig 1: Headlight (S/D) - Circuit Diagram (1 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

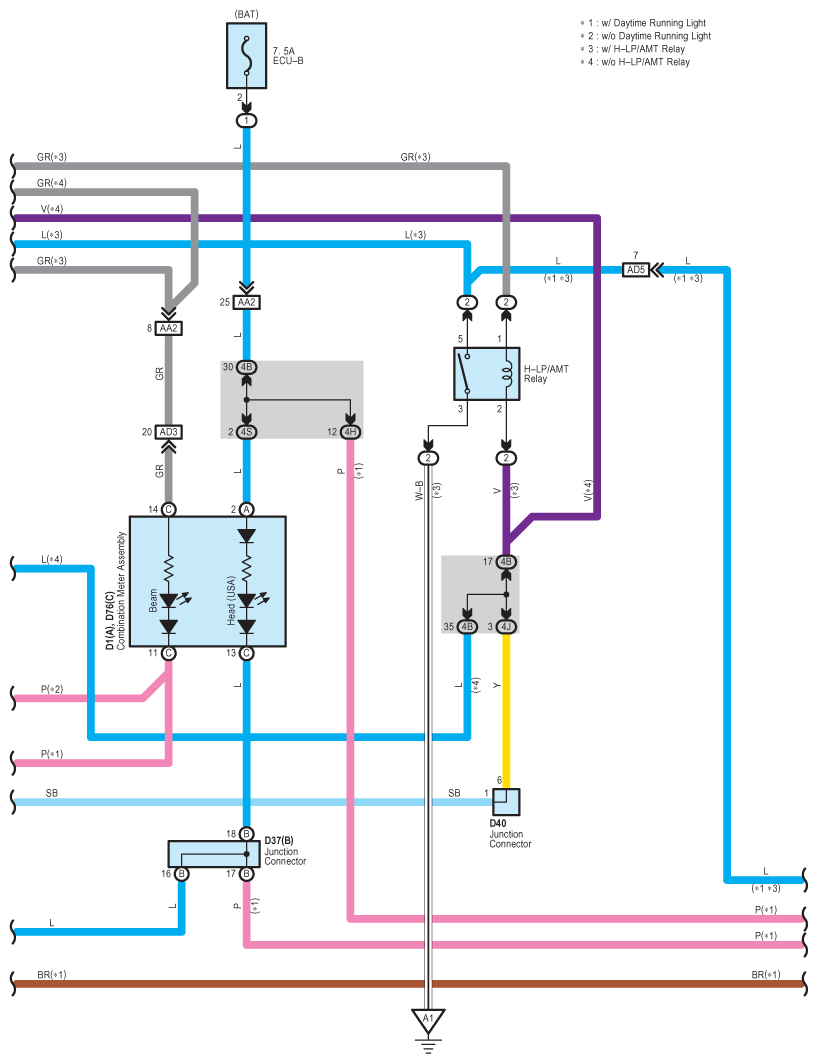

Fig 2: Headlight (S/D) - Circuit Diagram (2 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

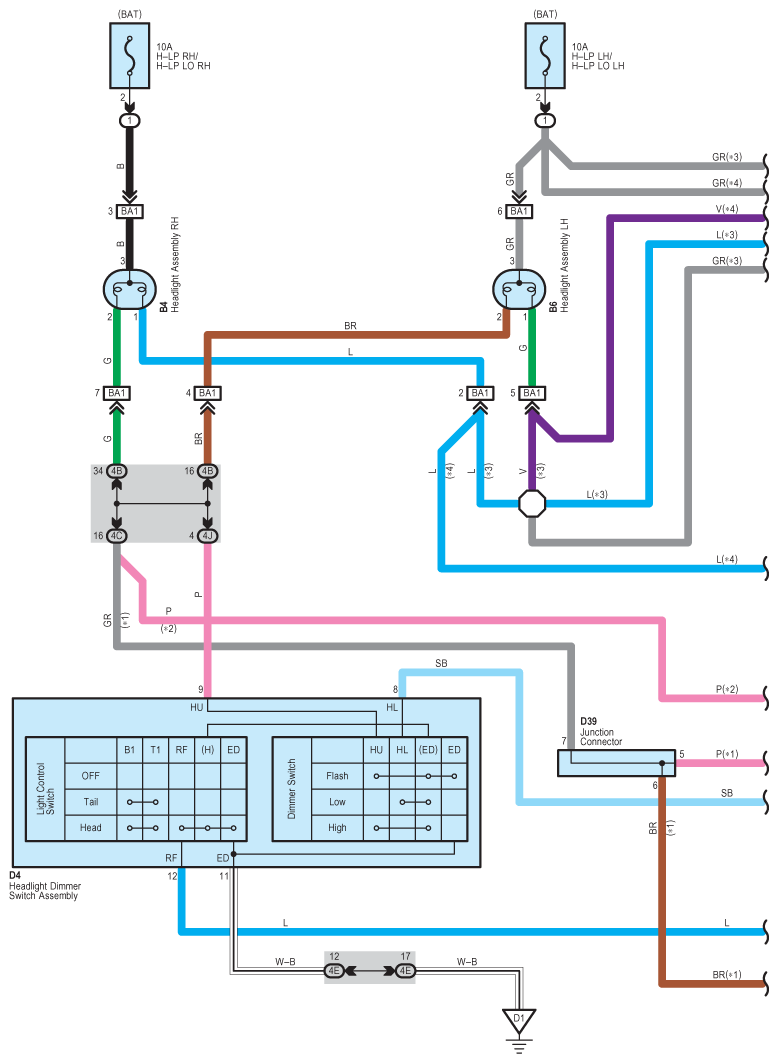

Fig 3: Headlight (S/D) - Circuit Diagram (3 Of 3)
