Horn (H/B): Notes

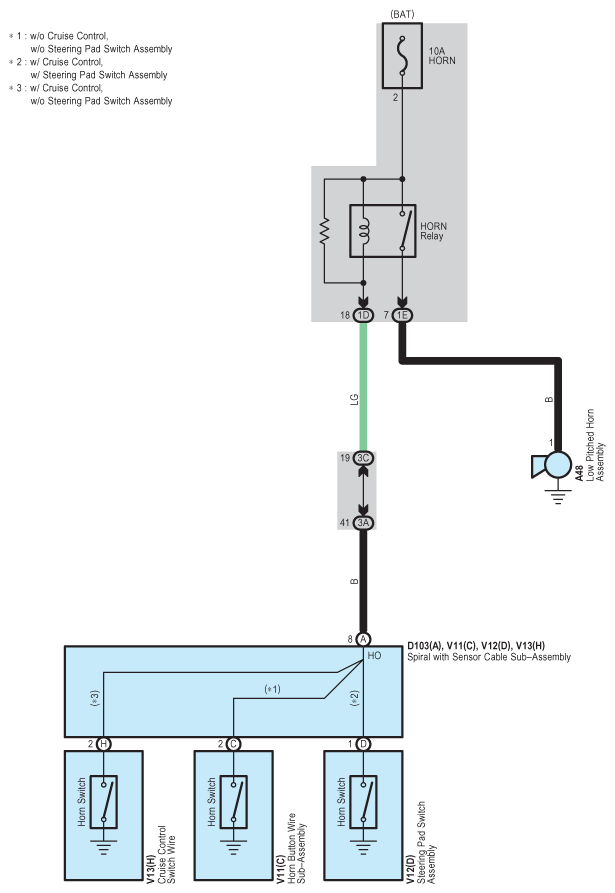

Fig 1: Horn (H/B) - Circuit Diagram

G08949346

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
