Yaris Base, Automatic Trans
›
Repair and Diagnosis
›
Electrical
›
Body Electrical
›
OEM System Circuits
›
Power Source (S/D)
›
Notes
Power Source (S/D): Notes

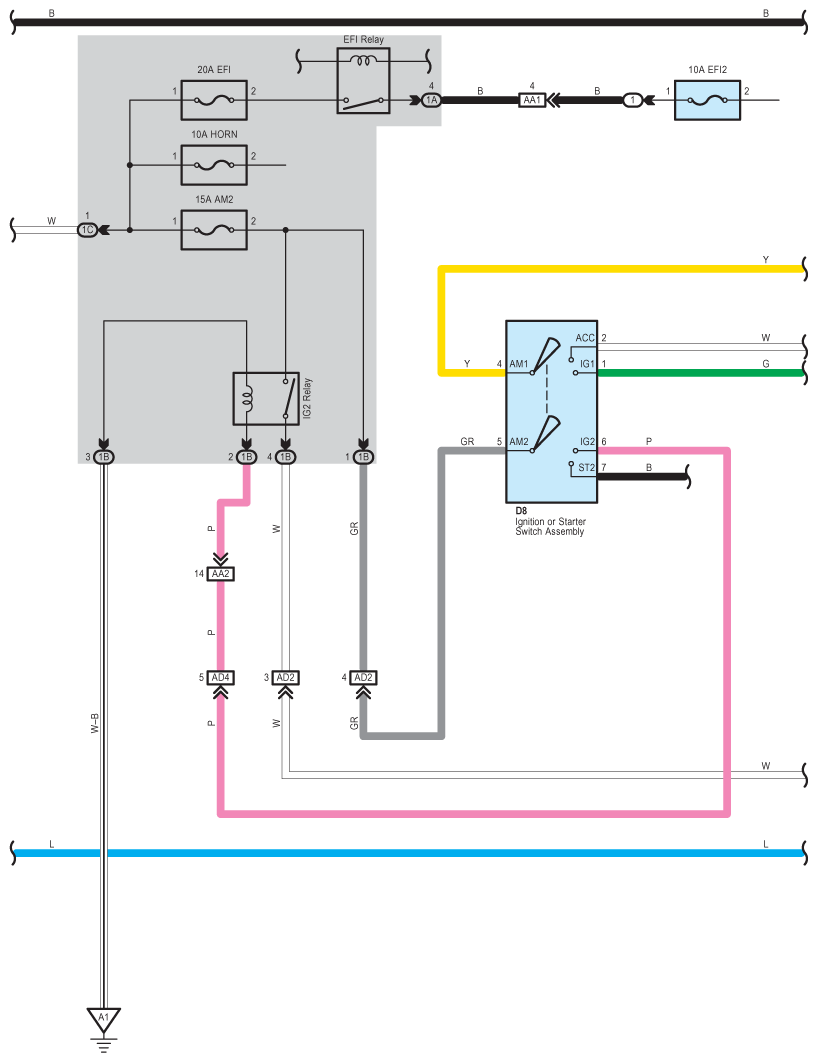

Fig 1: Power Source (S/D) - Circuit Diagram (1 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

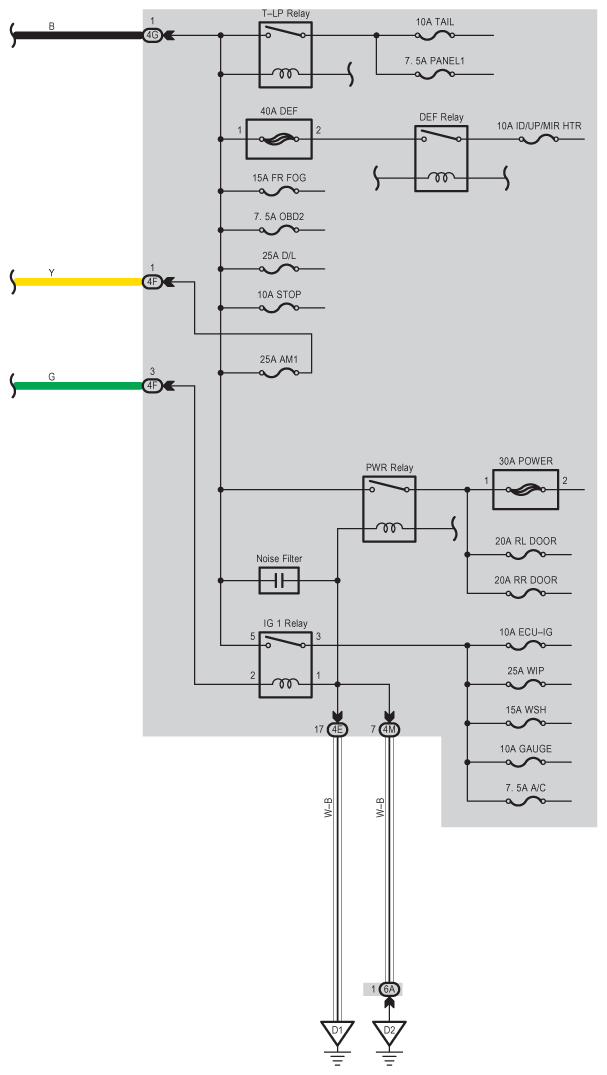

Fig 2: Power Source (S/D) - Circuit Diagram (2 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

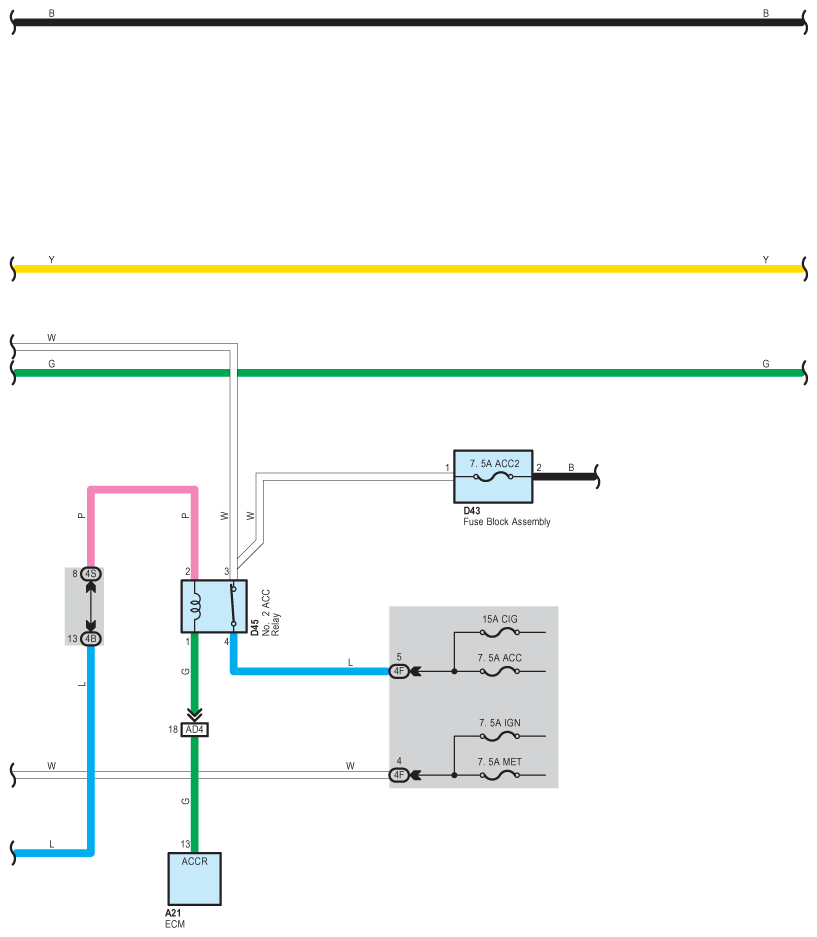

Fig 3: Power Source (S/D) - Circuit Diagram (3 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

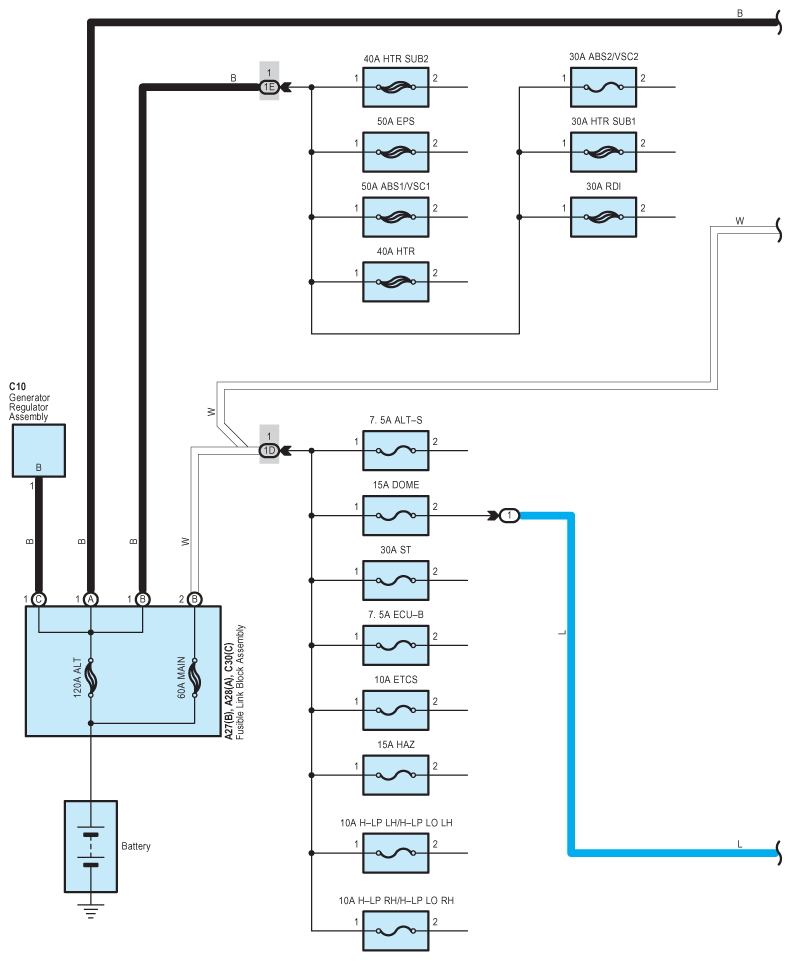

Fig 4: Power Source (S/D) - Circuit Diagram (4 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
