Seat Belt Warning (H/B): Notes

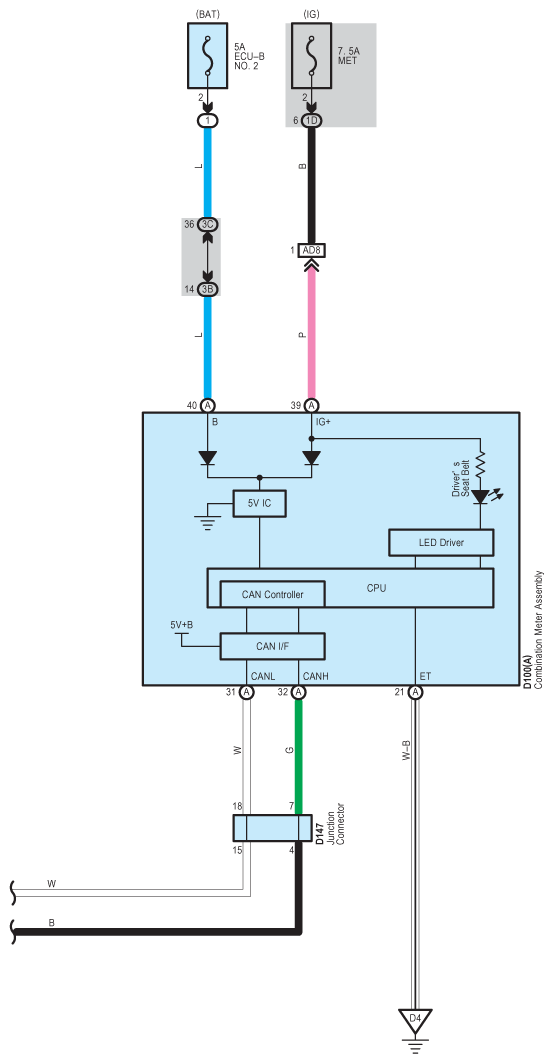

Fig 1: Seat Belt Warning (H/B) - Circuit Diagram (1 Of 3)
G08949340Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

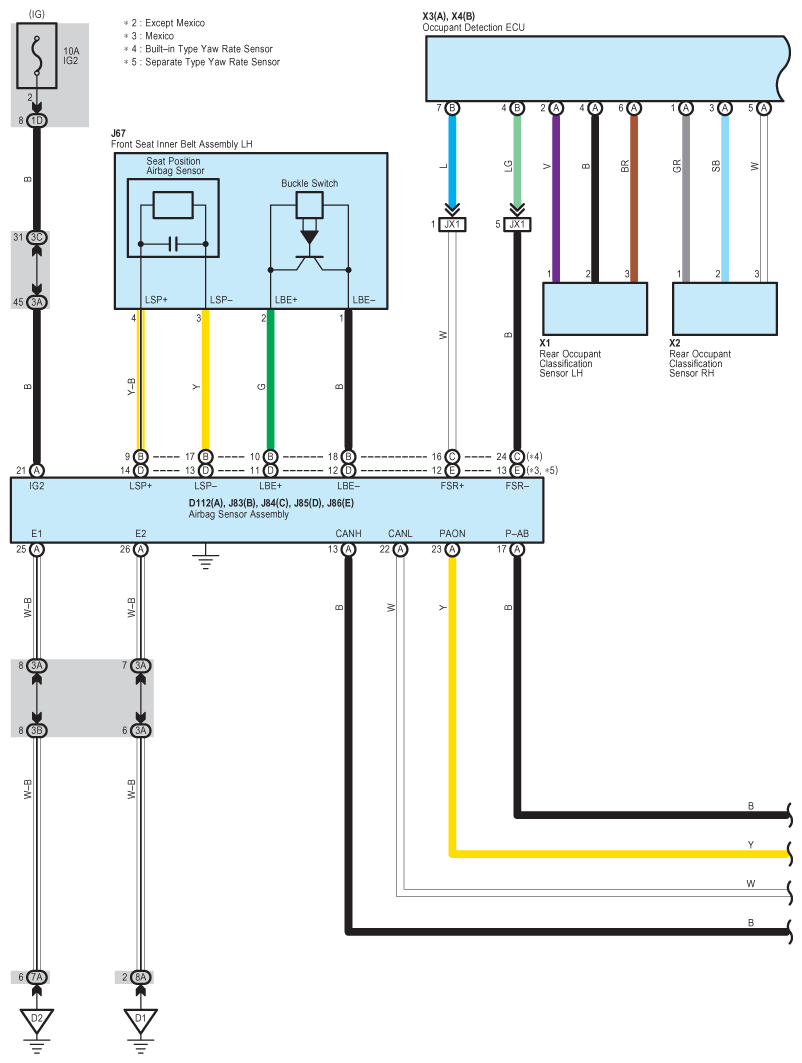

Fig 2: Seat Belt Warning (H/B) - Circuit Diagram (2 Of 3)
G08949341Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

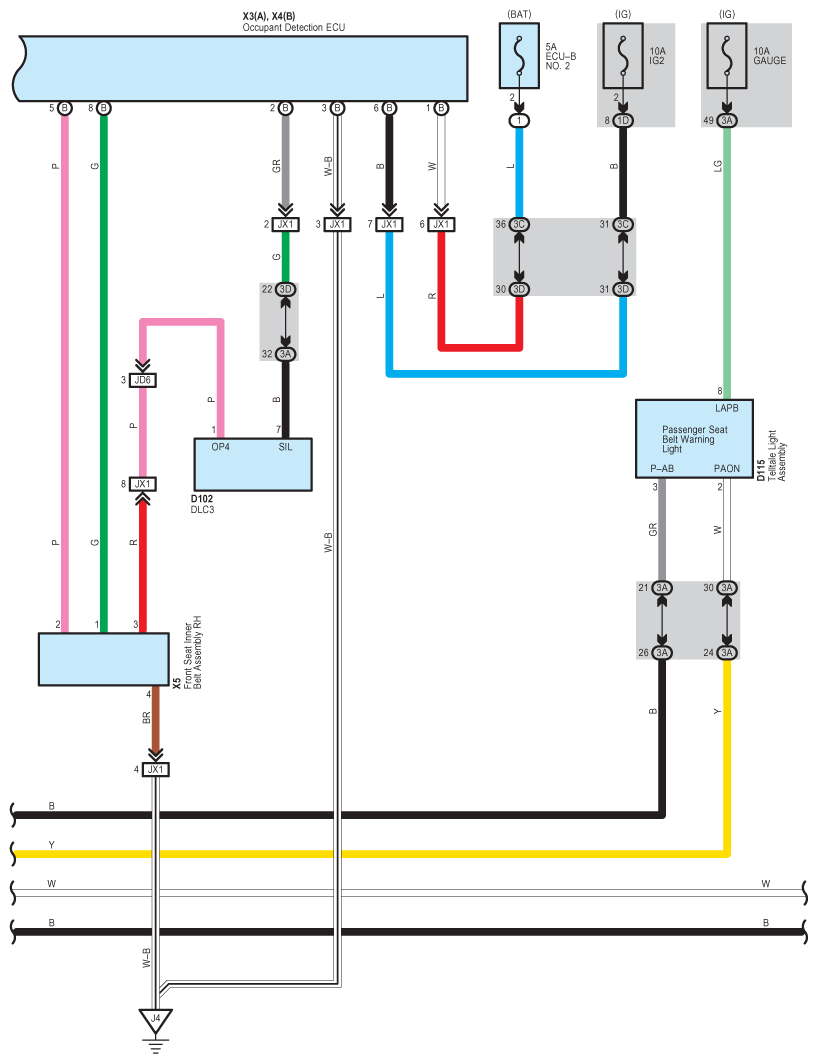

Fig 3: Seat Belt Warning (H/B) - Circuit Diagram (3 Of 3)
G08949342Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
