CAMSHAFT POSITION SENSOR (for Hatchback): Removal: Removal

REMOVE NO. 2 CYLINDER HEAD COVER See step 1
REMOVE AIR CLEANER CAP SUB-ASSEMBLY WITH NO. 1 AIR CLEANER HOSE See step 3
REMOVE BATTERY

Fig 1: Locating Battery Clamp & Nuts
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Disconnect the battery terminal.
2. Remove the 2 nuts and the battery clamp.
3. Remove the battery.
REMOVE CAMSHAFT POSITION SENSOR
1. Disconnect the camshaft position sensor connector.

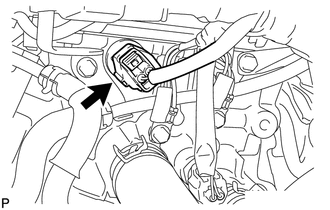

  Fig 2: Identifying Camshaft Position Sensor Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the bolt and camshaft position sensor.

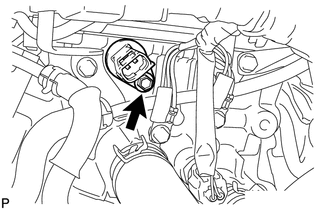

  Fig 3: Identifying Camshaft Position Sensor
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
