CRANKSHAFT POSITION SENSOR (for Hatchback): Components: Illustration

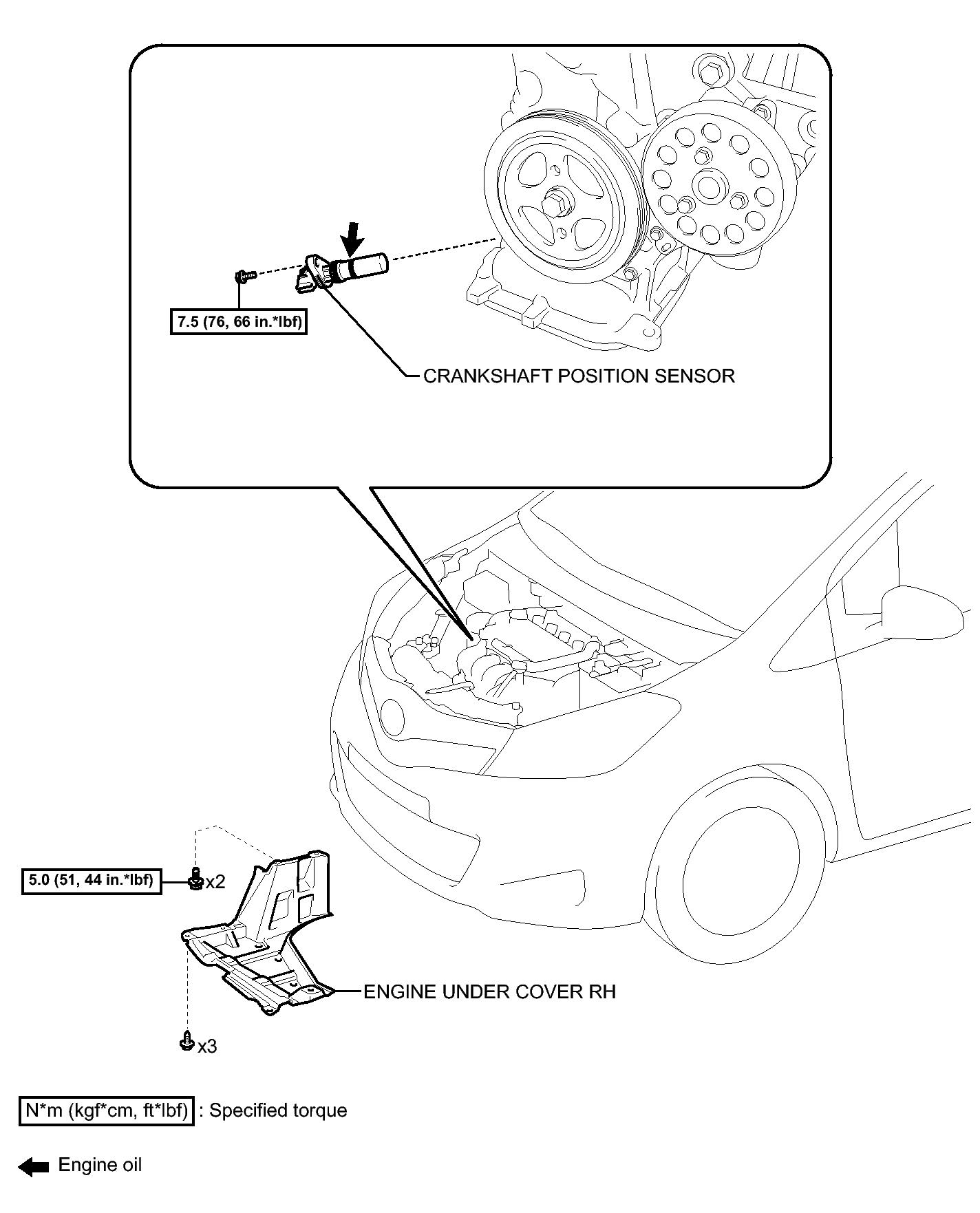

Fig 1: Identifying Crankshaft Position Sensor (For Hatchback) Replacement Components With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
