ECM (for Hatchback): Components: Illustration

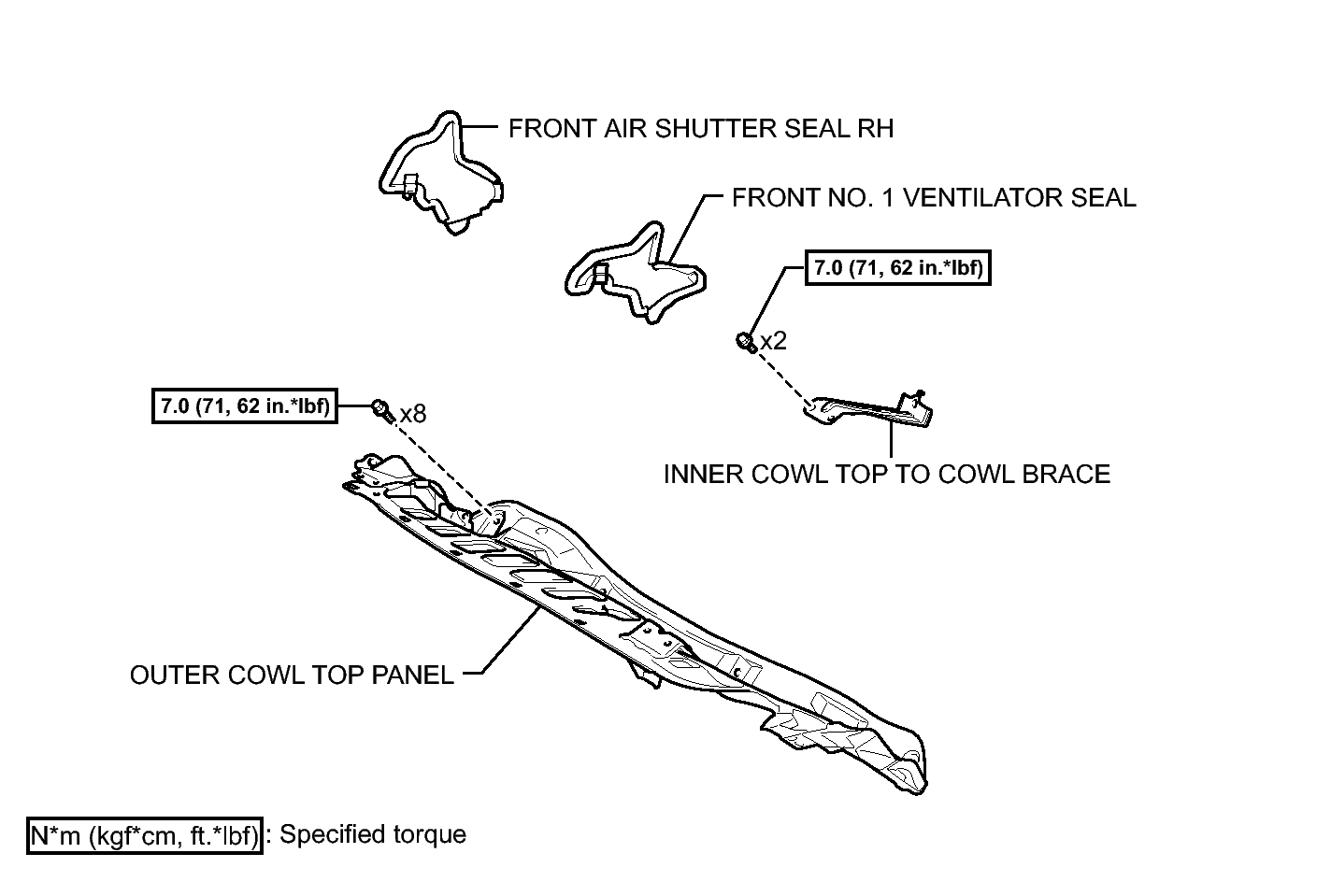

Fig 1: Identifying ECM (For Hatchback) Replacement Components With Torque Specifications (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

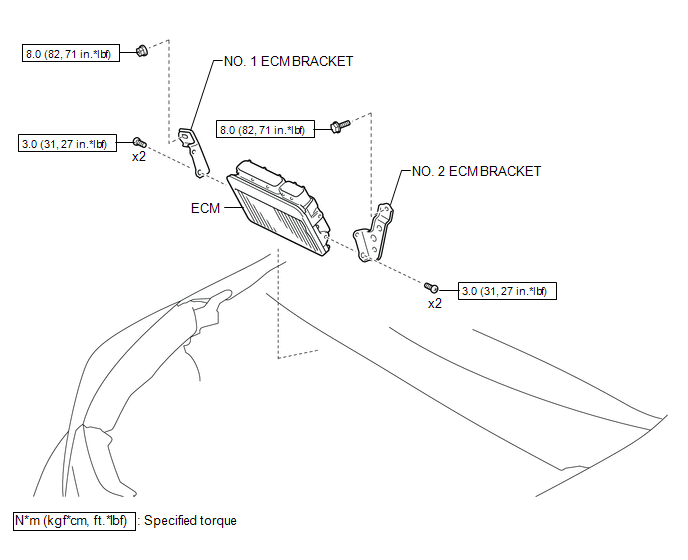

Fig 1: Identifying ECM (For Hatchback) Replacement Components With Torque Specifications (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
