IGNITION COIL AND SPARK PLUG (for Sedan): Components: Illustration

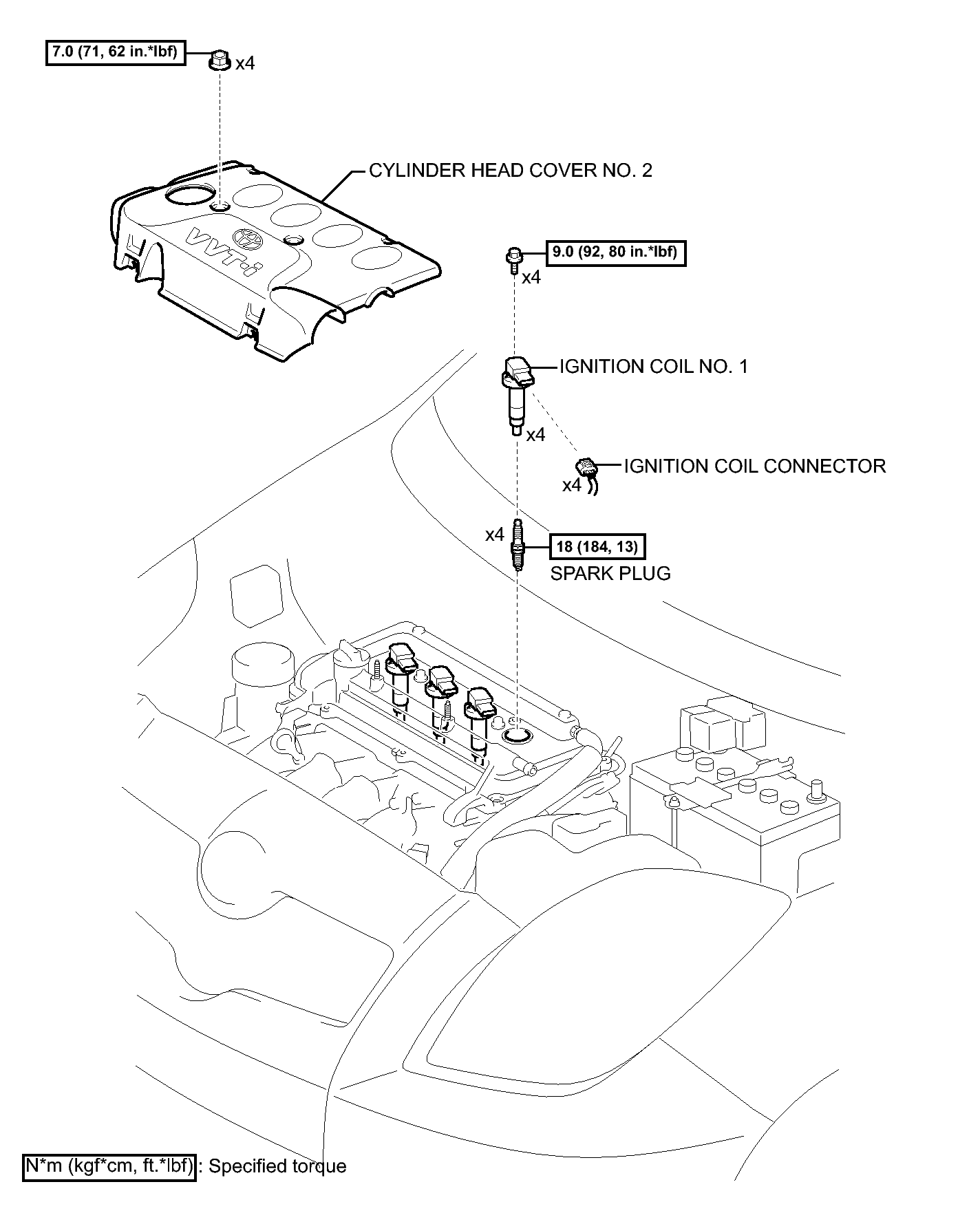

Fig 1: Identifying Ignition Coil And Spark Plug (For Sedan) Replacement Components With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
