Ground Points: Notes

(H/B - Hatchback) , (S/D - Sedan)

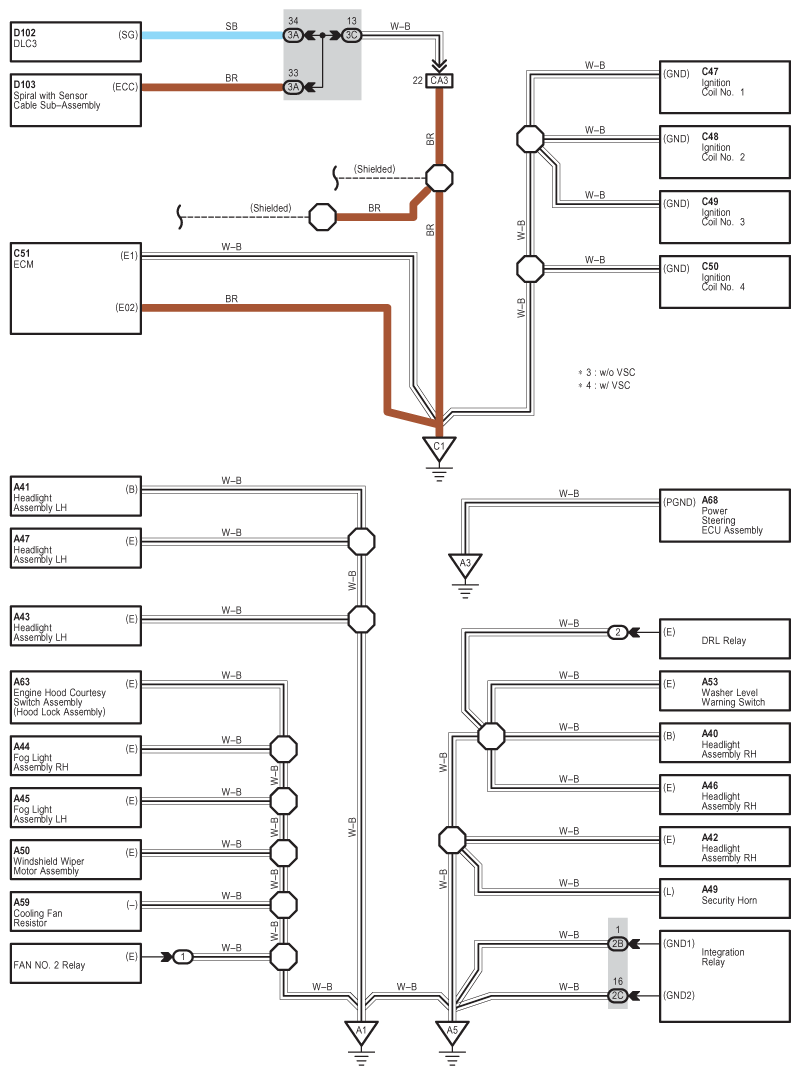

Fig 1: Ground Point Wiring Diagram (H/B; 1 Of 6)

G08949488

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

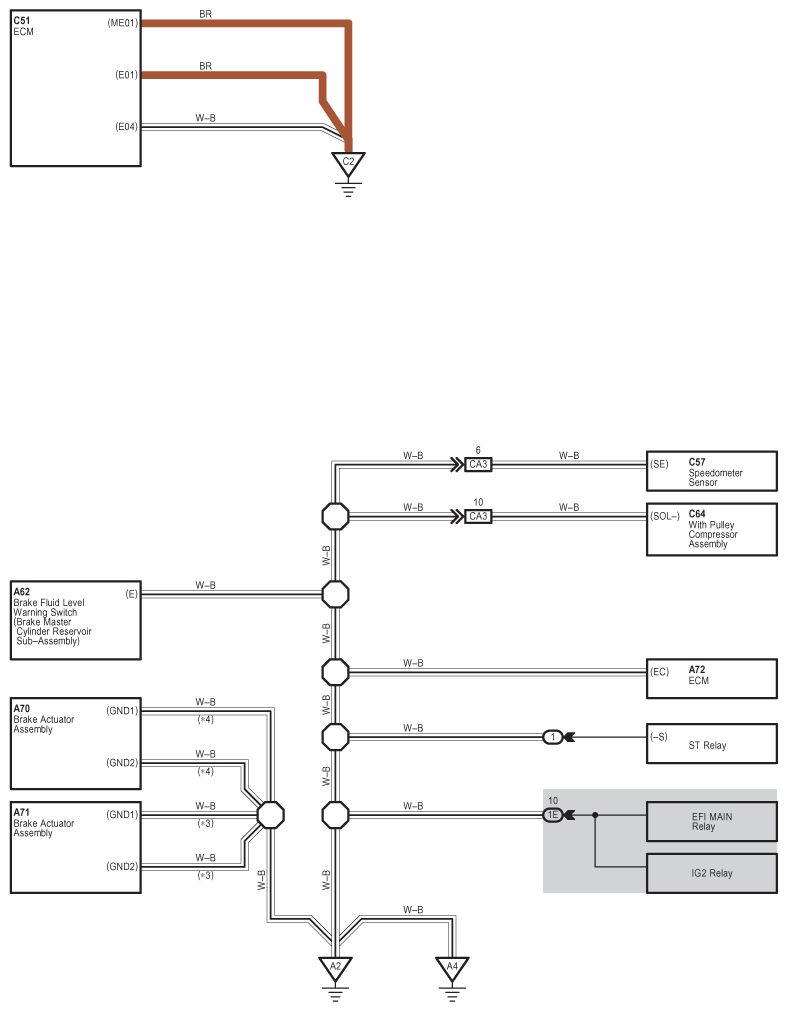

Fig 2: Ground Point Wiring Diagram (H/B; 2 Of 6)

G08949489

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

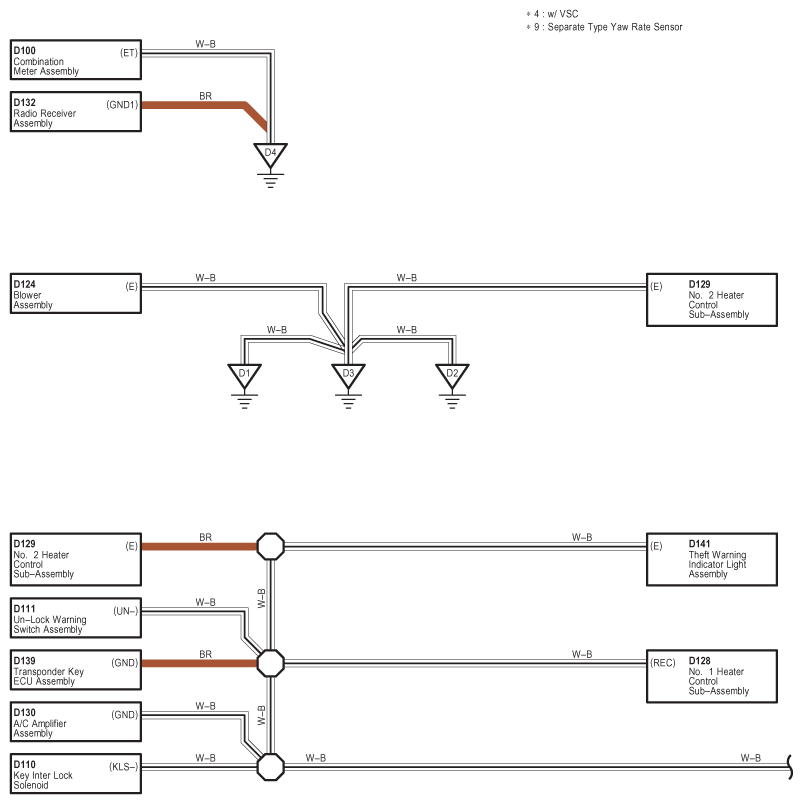

Fig 3: Ground Point Wiring Diagram (H/B; 3 Of 6)

G08949490

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

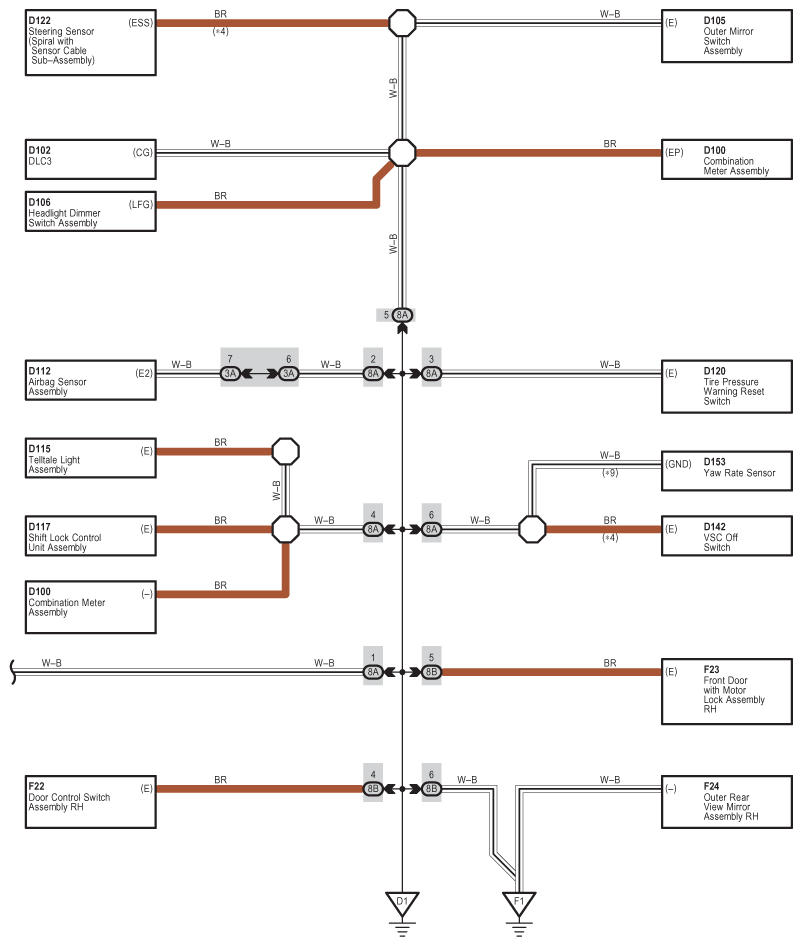

Fig 4: Ground Point Wiring Diagram (H/B; 4 Of 6)

G08949491

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

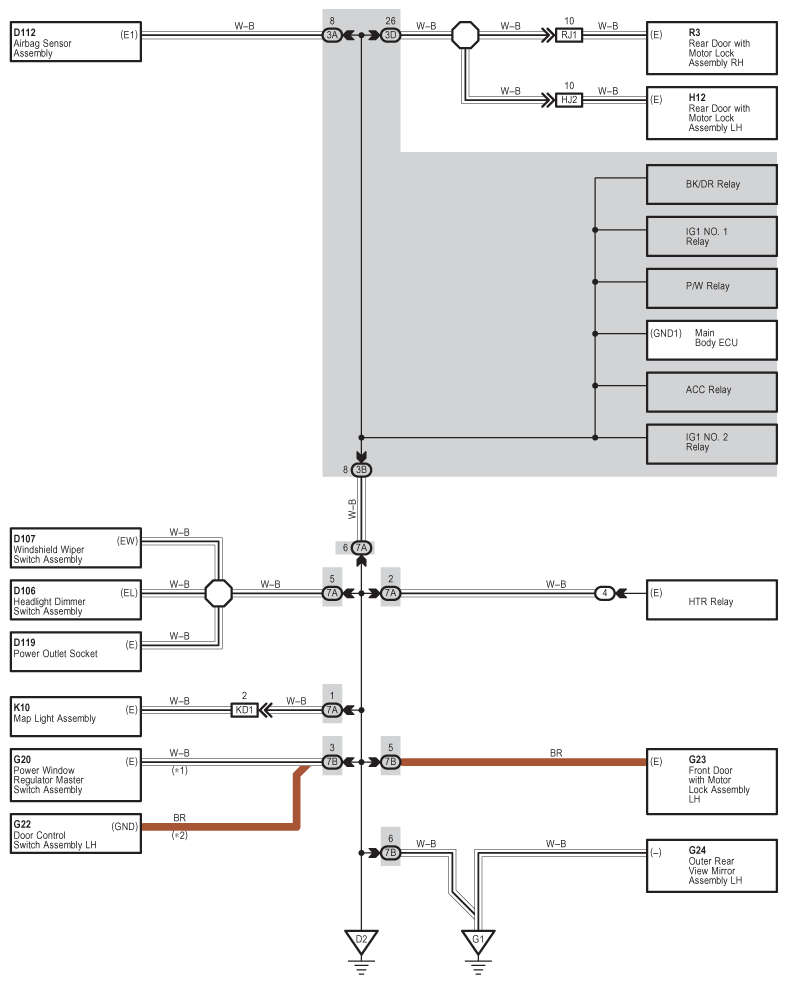

Fig 5: Ground Point Wiring Diagram (H/B; 5 Of 6)

G08949492

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

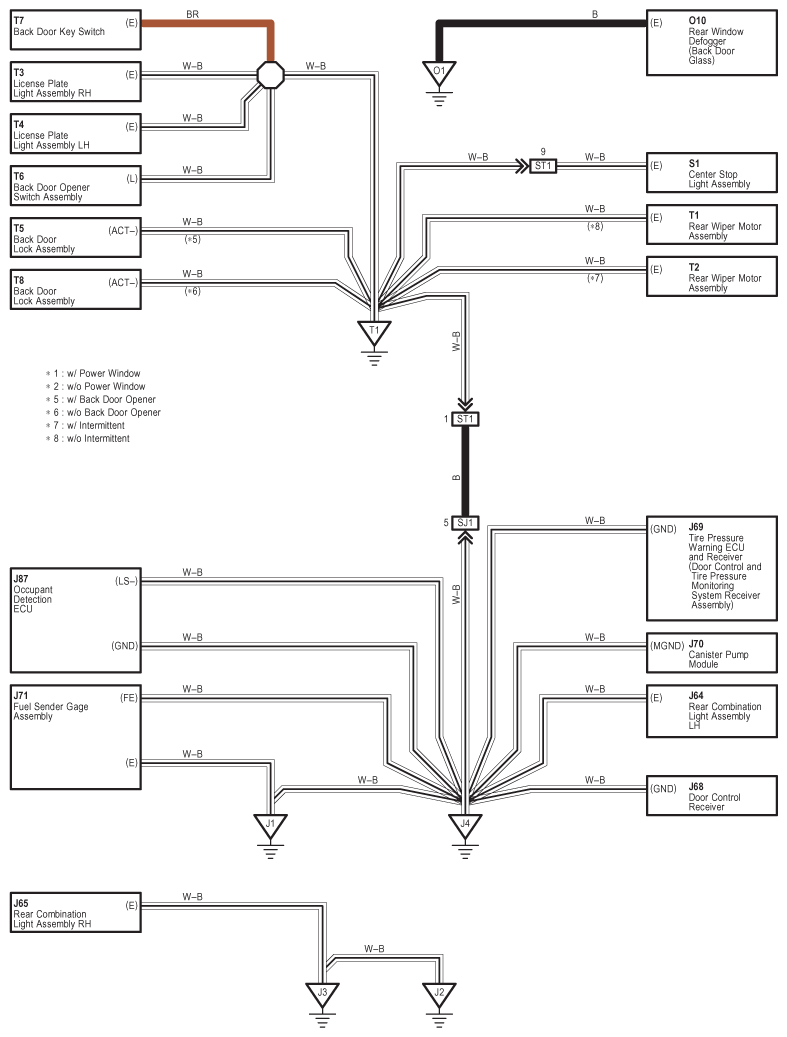

Fig 6: Ground Point Wiring Diagram (H/B; 6 Of 6)

G08949493

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
