Back Door Opener (H/B)
›
Notes
Back Door Opener (H/B): Notes

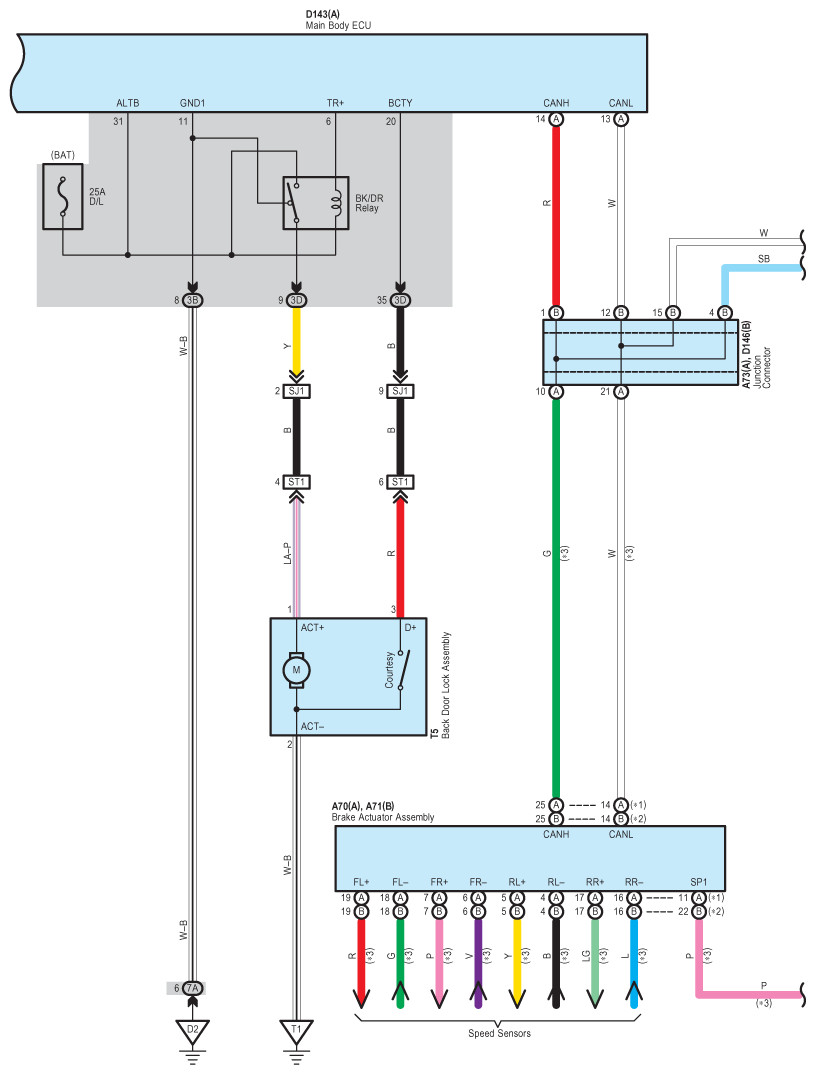

Fig 1: Back Door Opener (H/B) - Circuit Diagram (1 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

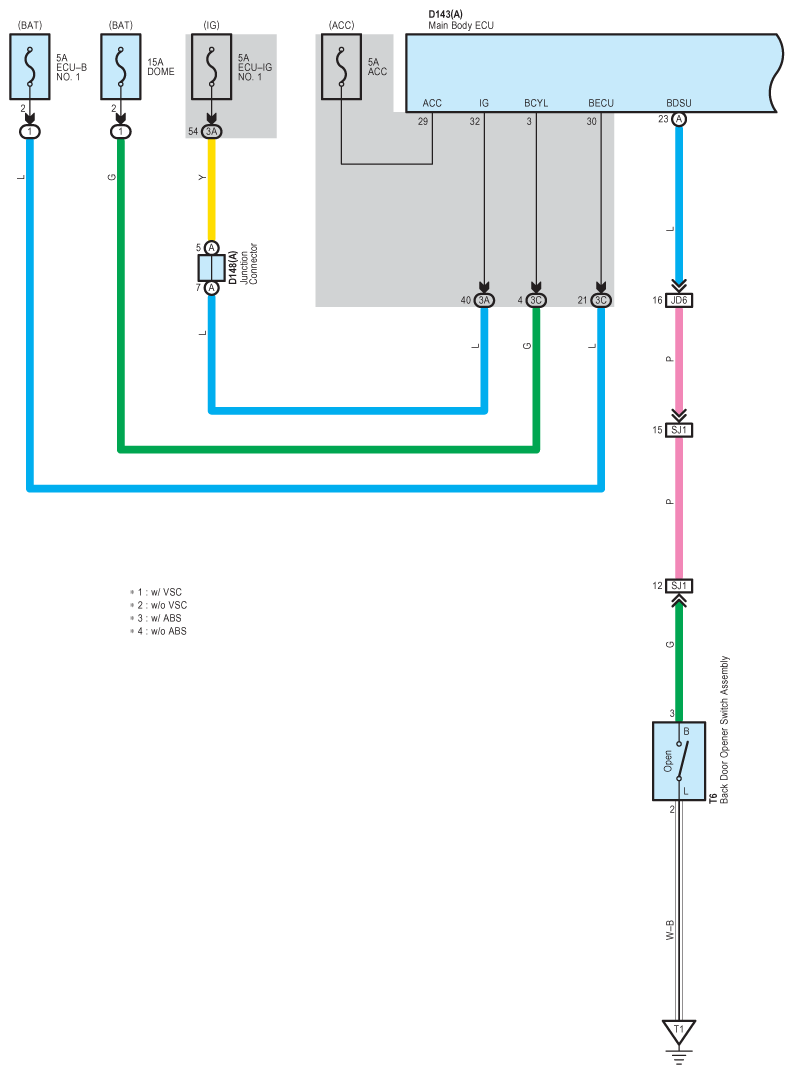

Fig 2: Back Door Opener (H/B) - Circuit Diagram (2 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

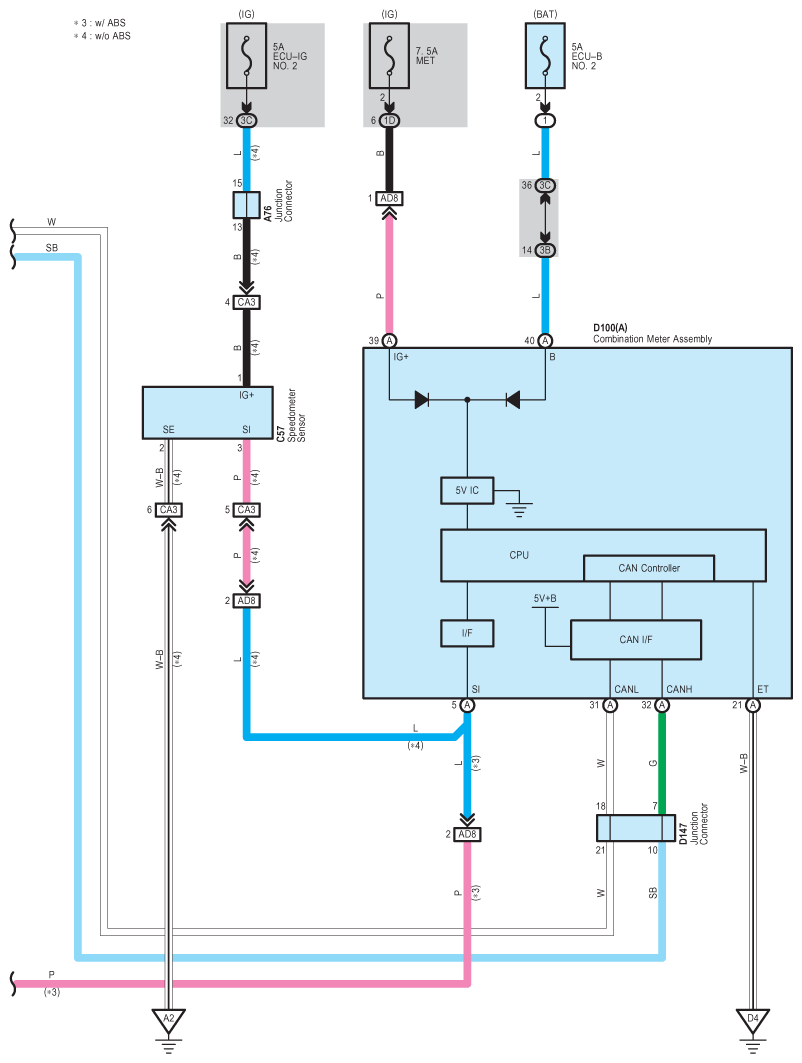

Fig 3: Back Door Opener (H/B) - Circuit Diagram (3 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
