Back-Up Light (H/B): Notes

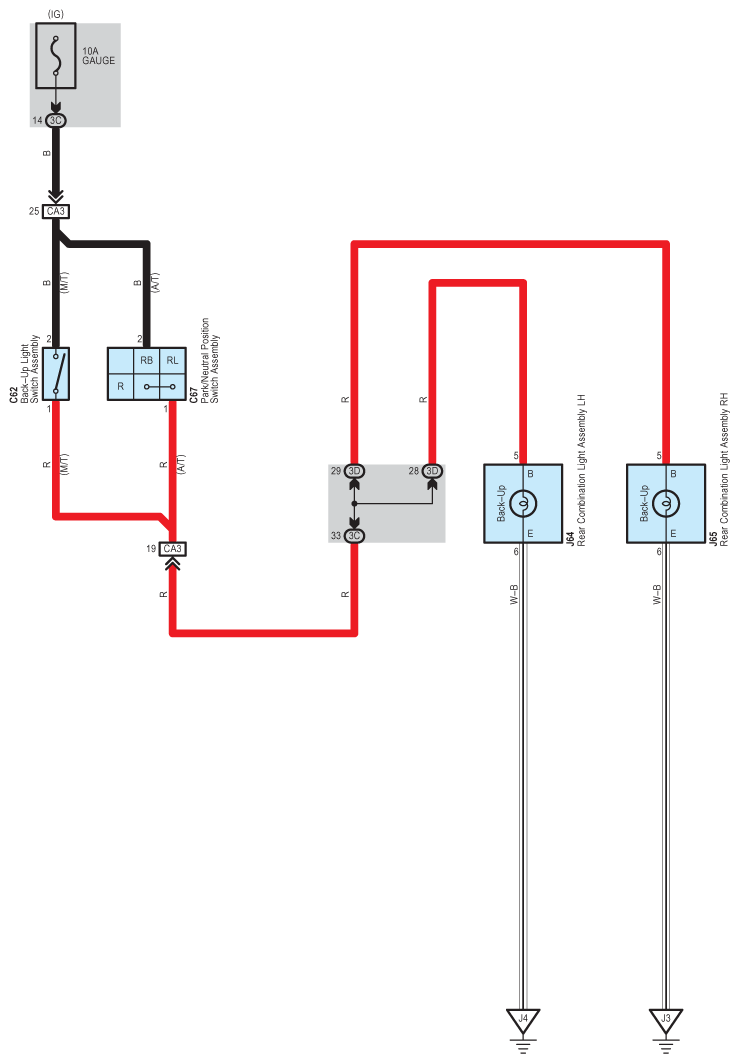

Fig 1: Back-Up Light (H/B) - Circuit Diagram
G08949280Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
