EPS (H/B): Notes

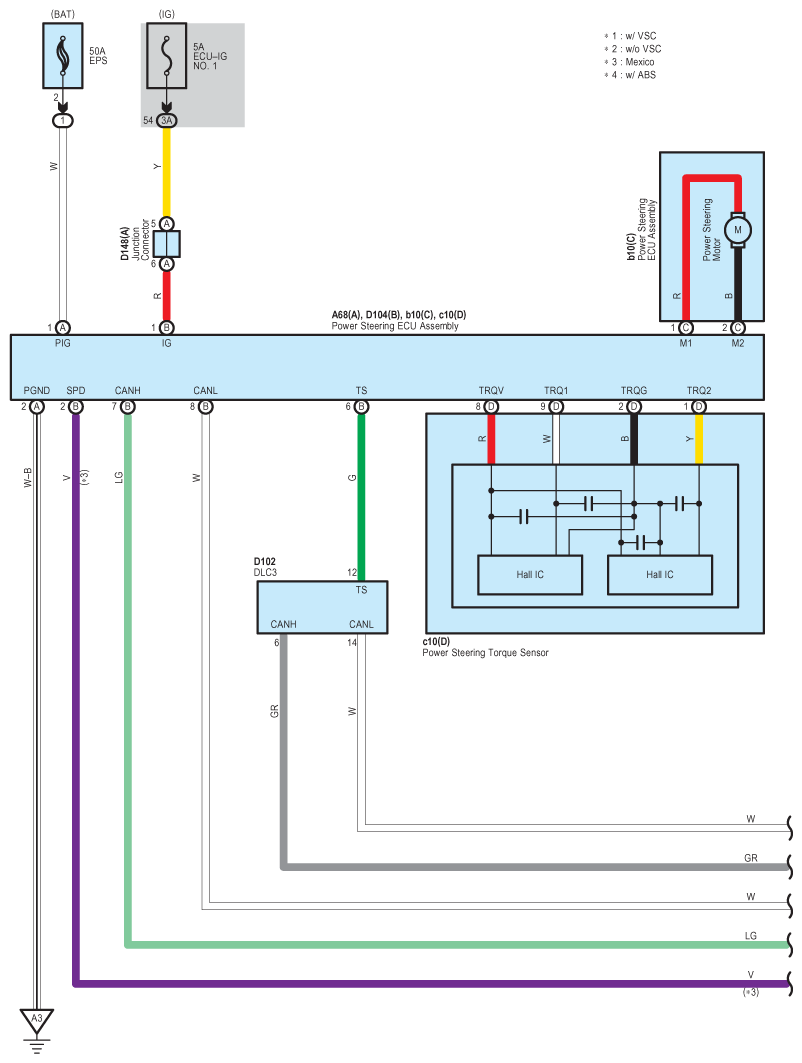

Fig 1: EPS (H/B) - Circuit Diagram (1 Of 3)

G08949309

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

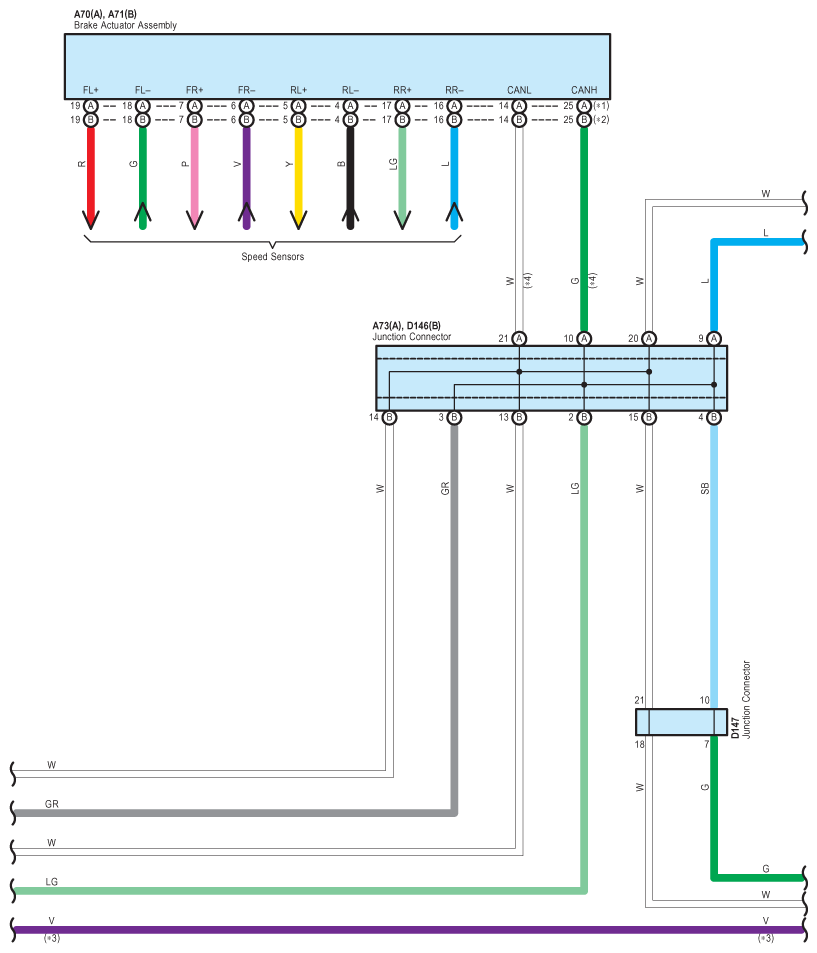

Fig 2: EPS (H/B) - Circuit Diagram (2 Of 3)

G08949310

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

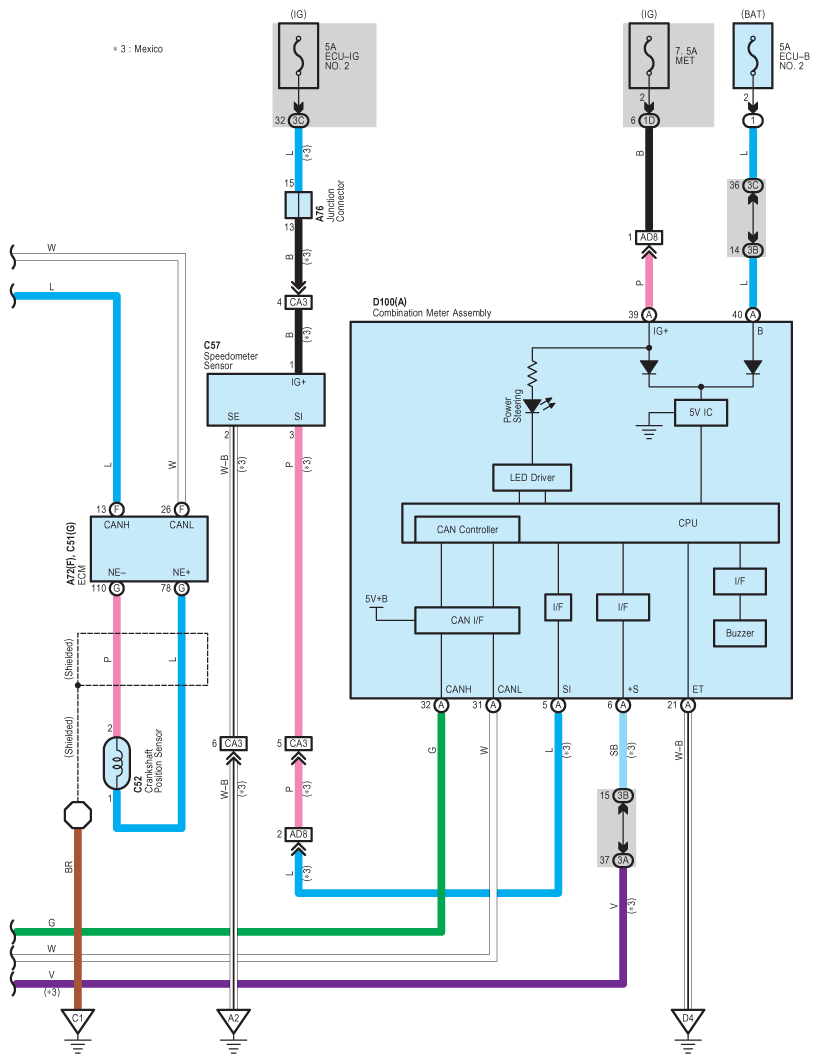

Fig 3: EPS (H/B) - Circuit Diagram (3 Of 3)

G08949311

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
