Turn Signal and Hazard Warning Light (S/D): Notes

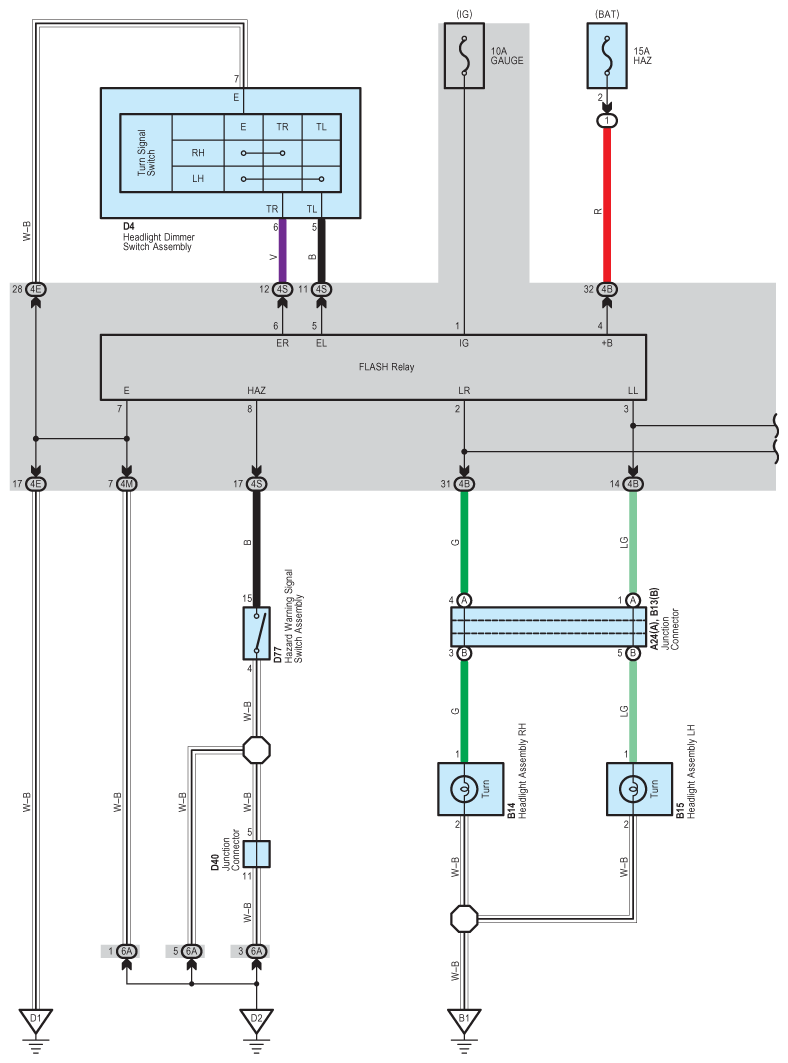

Fig 1: Turn Signal And Hazard Warning Light (S/D) - Circuit Diagram (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

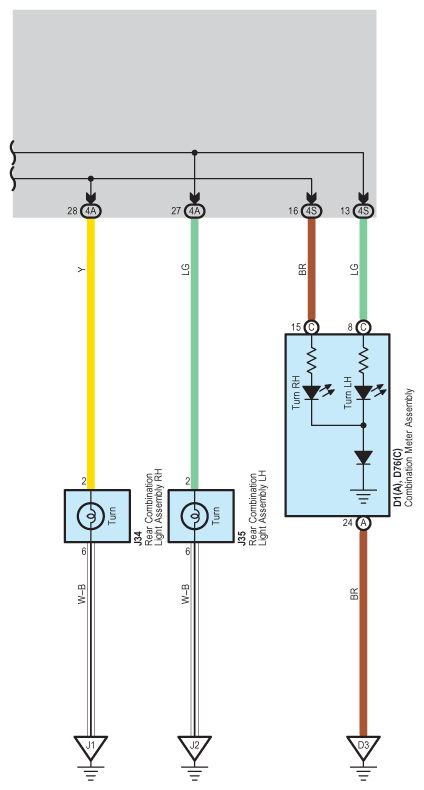

Fig 2: Turn Signal And Hazard Warning Light (S/D) - Circuit Diagram (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
