Ignition (H/B): Notes

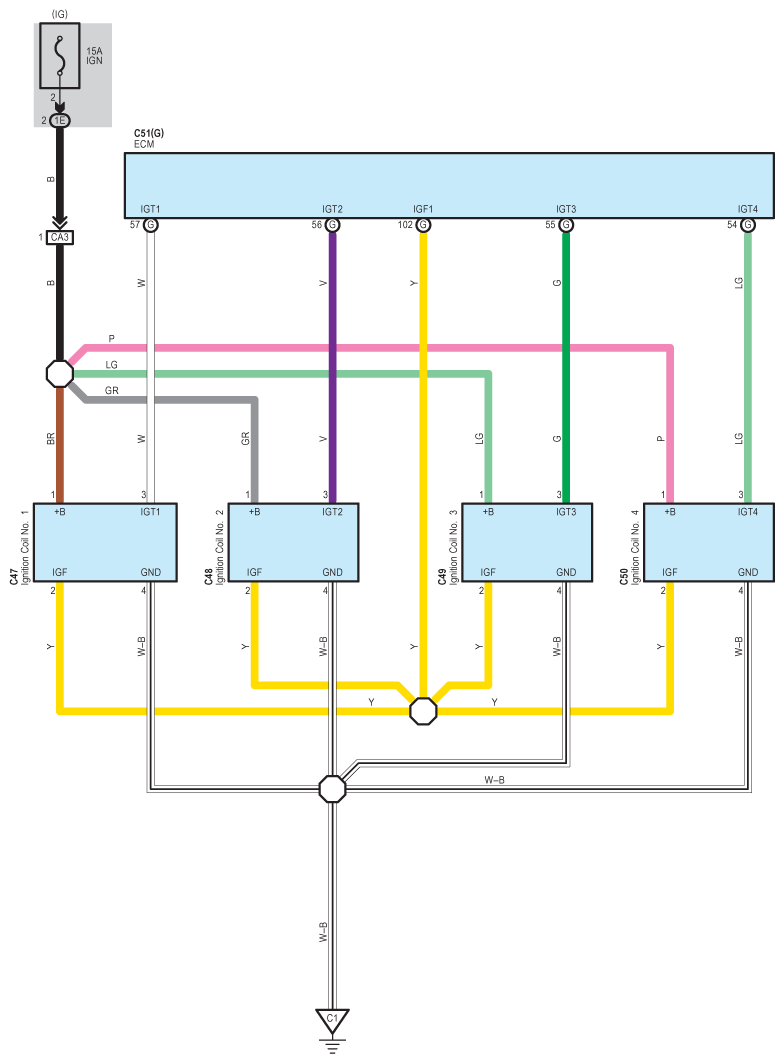

Fig 1: Ignition (H/B) - Circuit Diagram
G08949246Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
