Starting (H/B): Notes

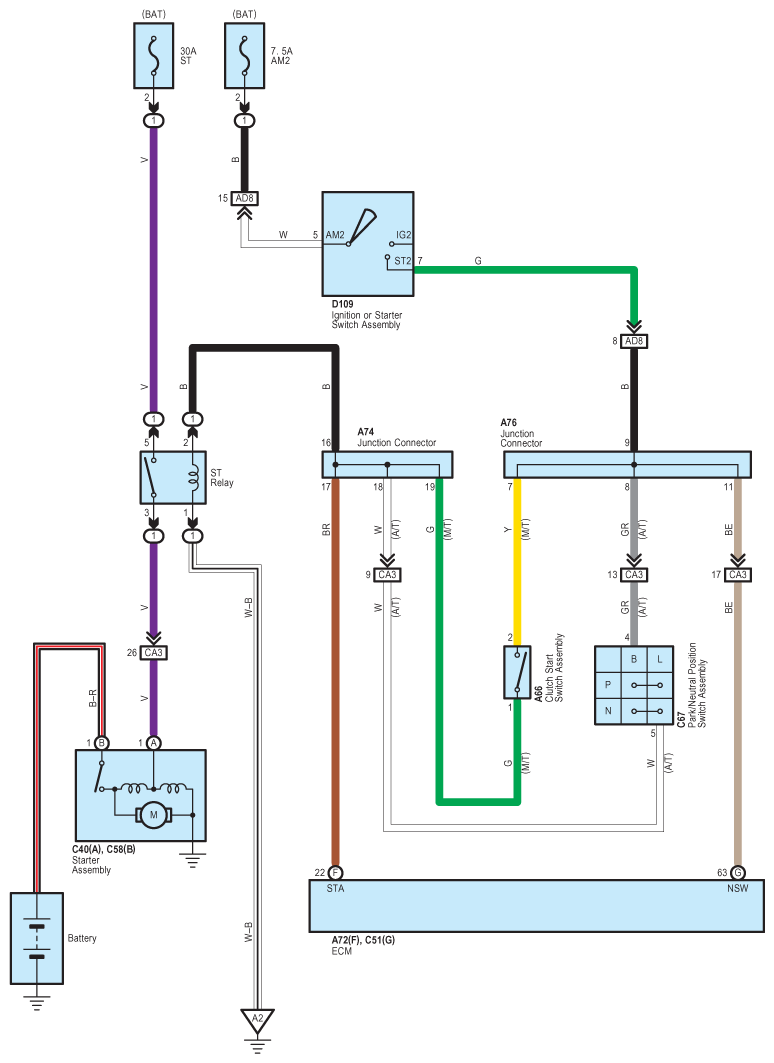

Fig 1: Starting (H/B) - Circuit Diagram

G08949243

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
