Mass Air Flow Meter: Removal: Removal

  1. REMOVE MASS AIR FLOW METER

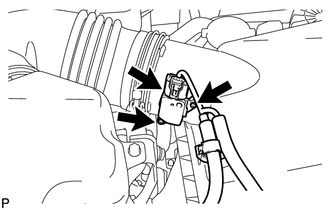

      Fig 1: Identifying MAF Meter Connector & Screws
      GTY180914Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the mass air flow meter connector.
    2. Remove the 2 screws and mass air flow meter.
