System Diagram

WARNING: This page is about a different variant/trim than selected.

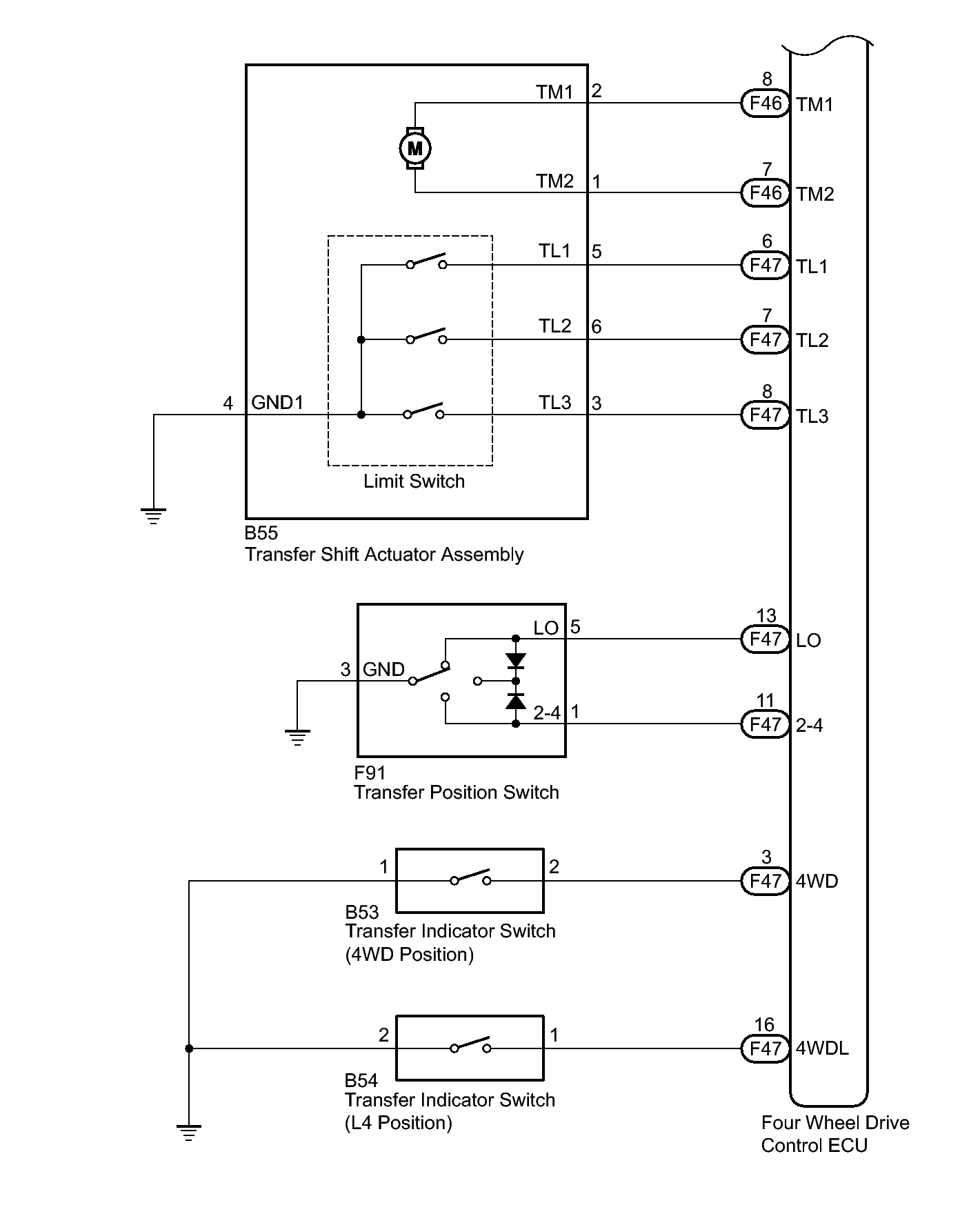

Fig 1: Identifying Touch Select 2-4 & High-Low System Circuit Diagram (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

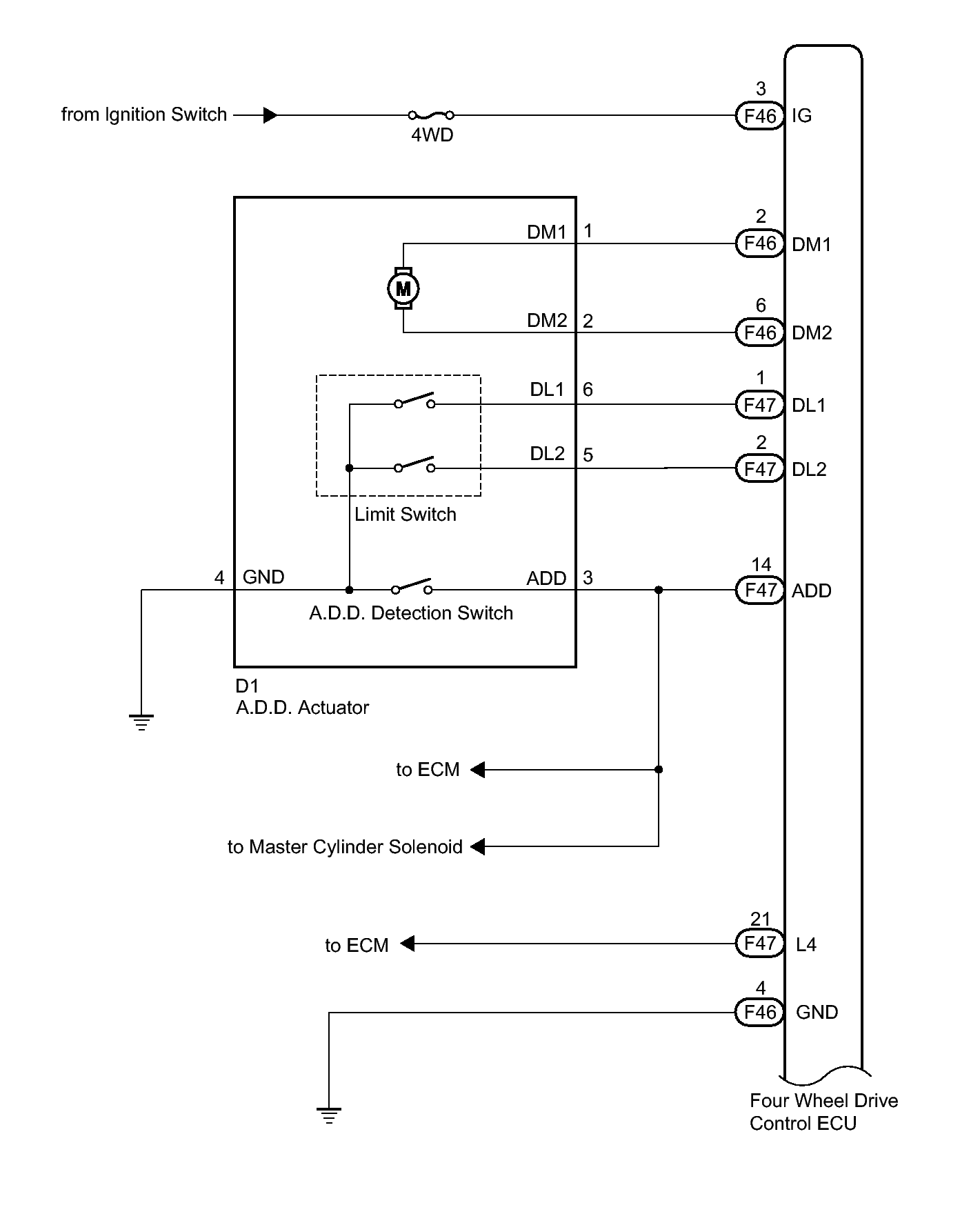

Fig 2: Identifying Touch Select 2-4 & High-Low System Circuit Diagram (2 Of 2)

Fig 3: Identifying Touch Select 2-4 & High-Low System - System Diagram
