4Runner SR5, 4WD
›
Repair and Diagnosis
›
Engine Performance
›
Ignition System (Inspection)
›
Ignition System
›
System Diagram
›
System Diagram
System Diagram

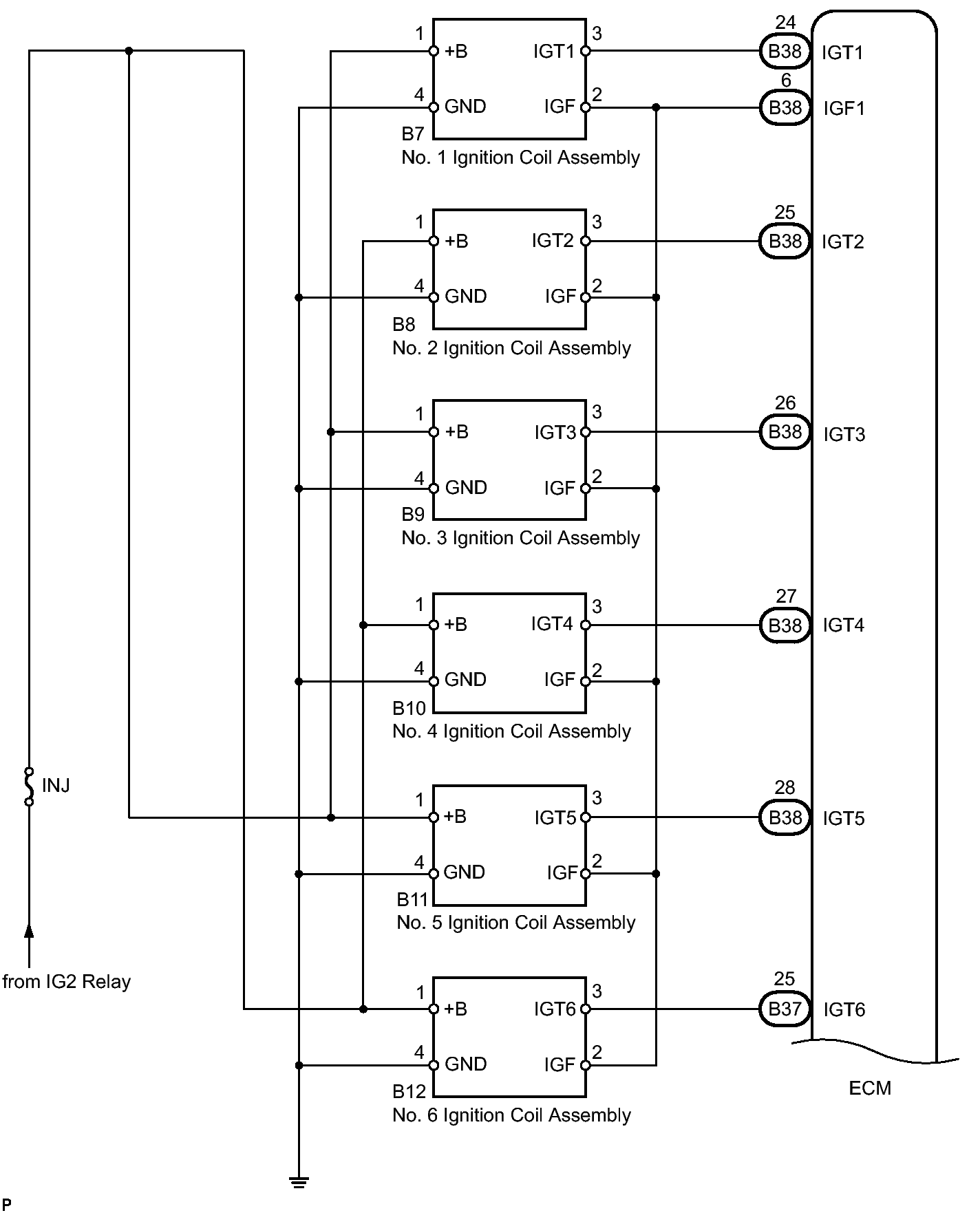

Fig 1: Identifying Ignition System Circuit Diagram (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

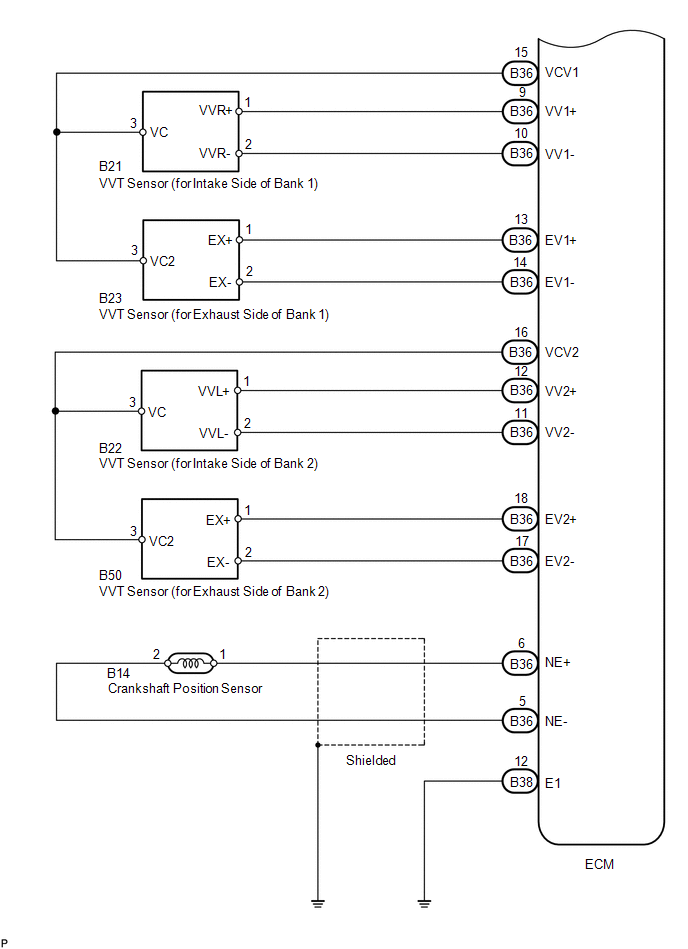

Fig 2: Identifying Ignition System Circuit Diagram (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
