System Diagram

Fig 1: Identifying SFI System Diagram
GTY219160Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Identifying SFI System Diagram
GTY213991Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

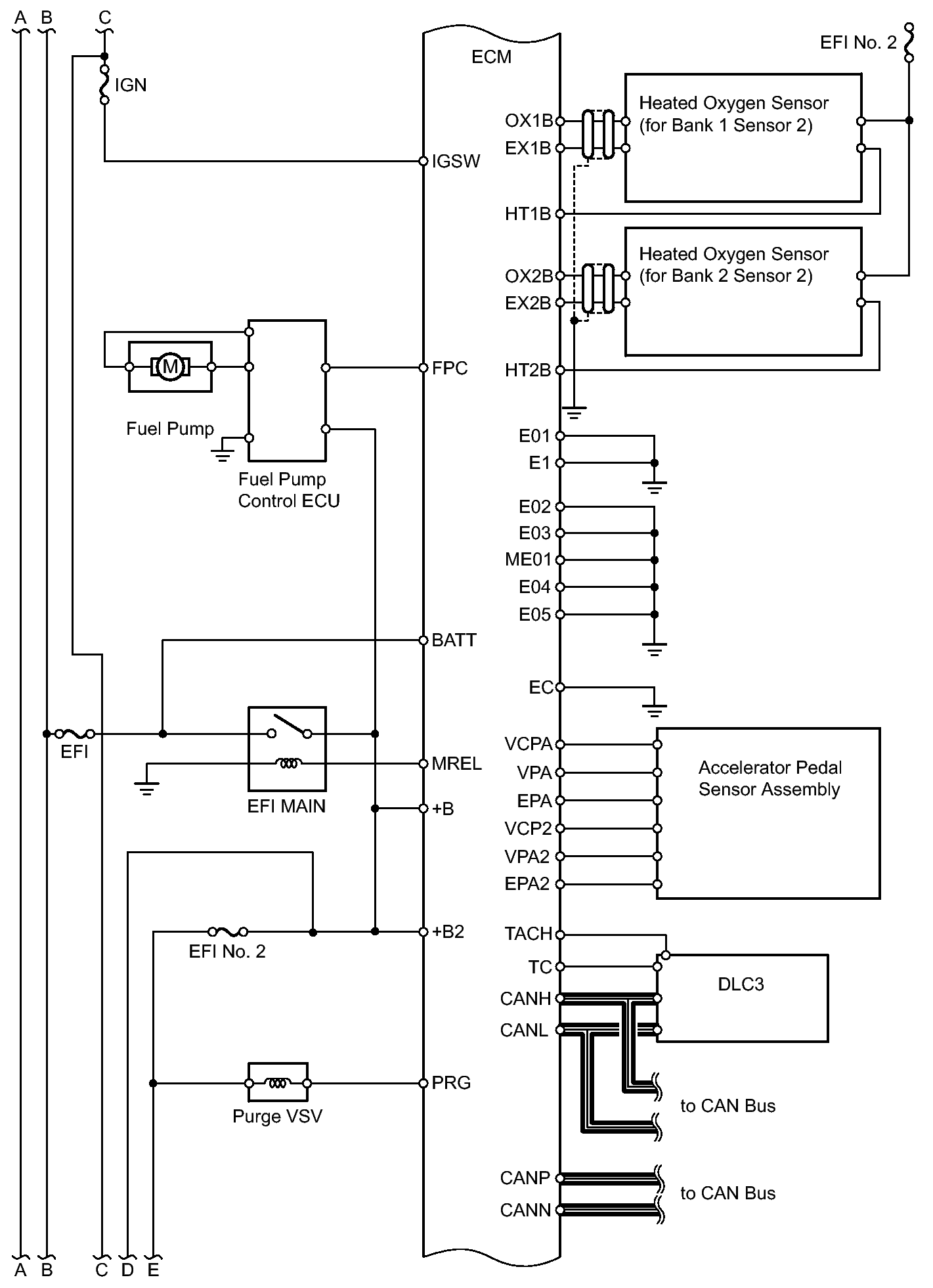

Fig 3: Identifying SFI System Diagram
GTY380610Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

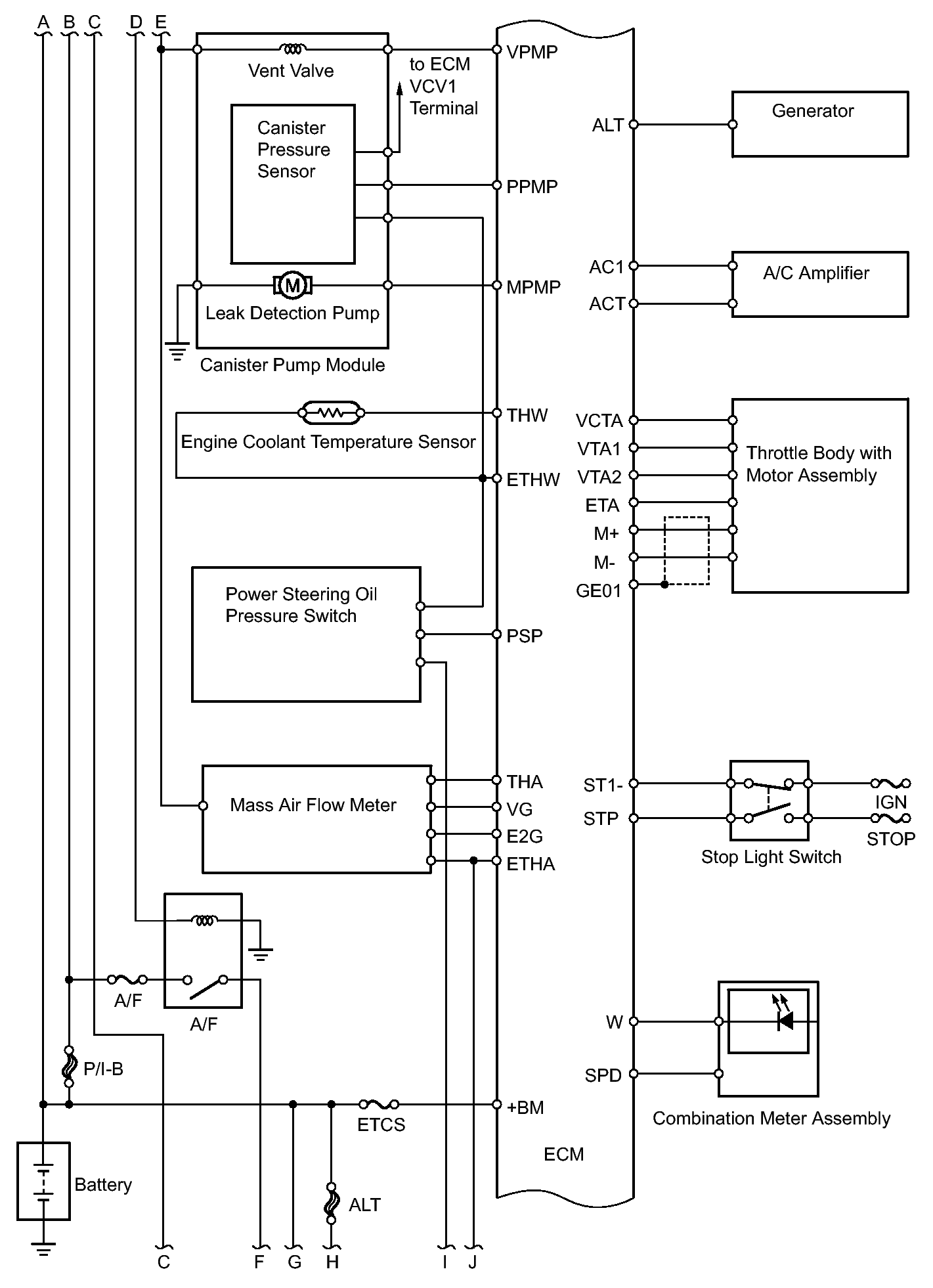

Fig 4: Identifying SFI System Diagram
GTY381354Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

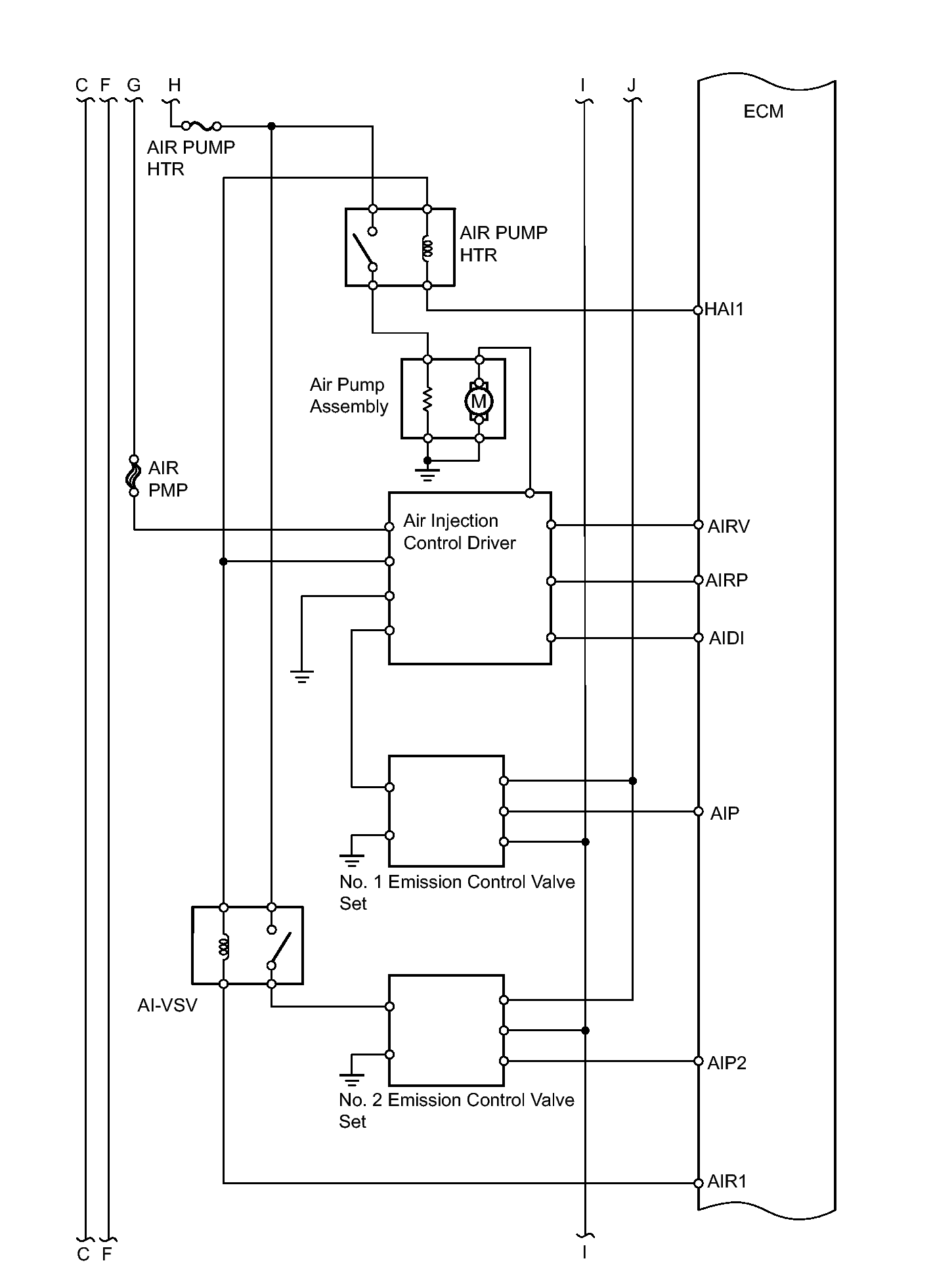

Fig 5: Identifying SFI System Diagram
GTY372184Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

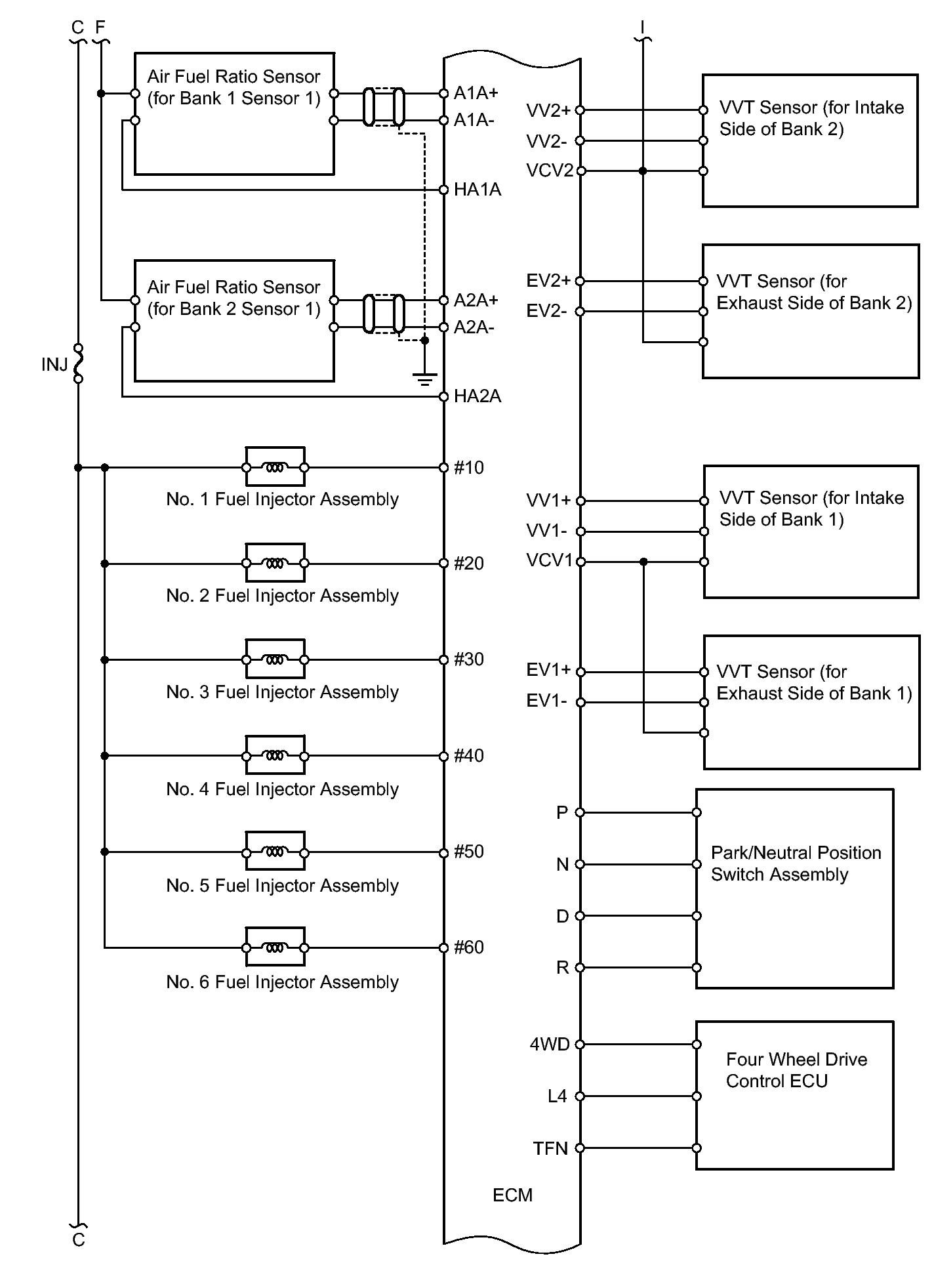

Fig 6: Identifying SFI System Diagram
GTY368460Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

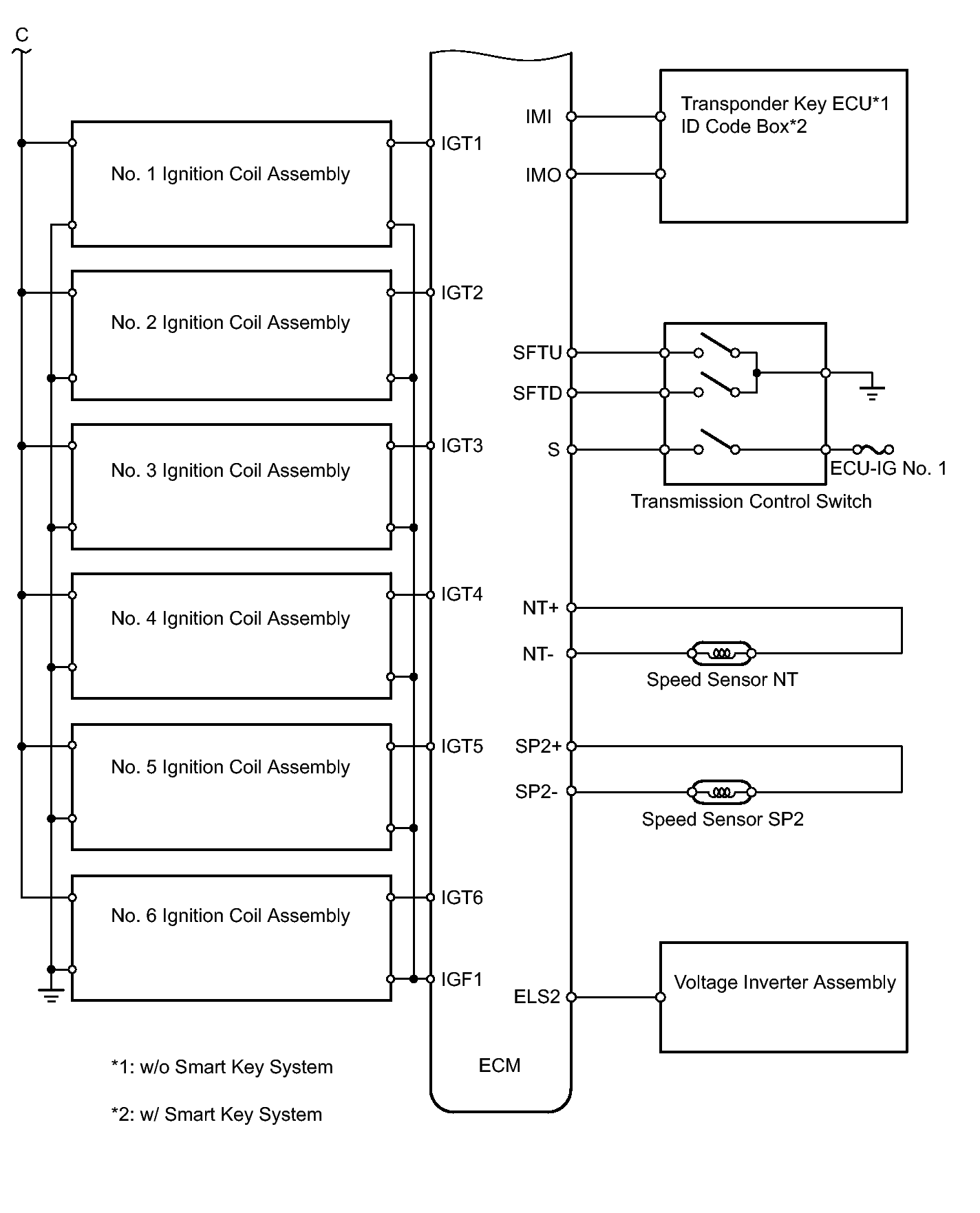

Fig 7: Identifying SFI System Diagram
GTY383960Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
