Accessory Meter: Notes

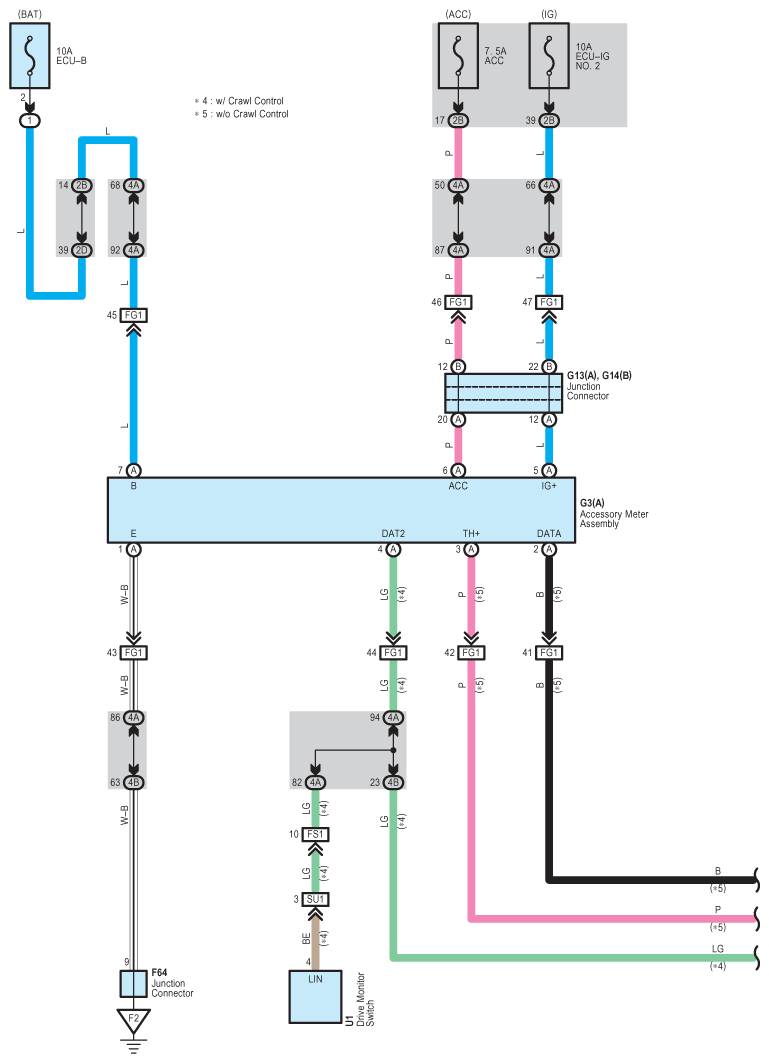

Fig 1: Accessory Meter - Circuit Diagram (1 Of 5)
G08950400Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

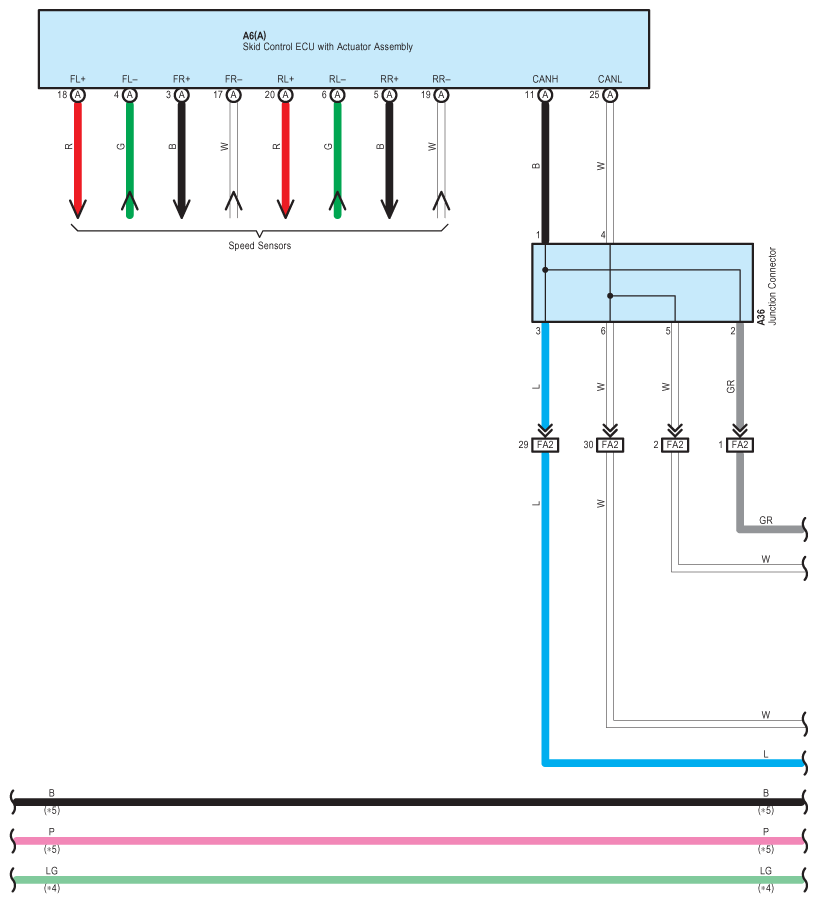

Fig 2: Accessory Meter - Circuit Diagram (2 Of 5)
G08950401Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

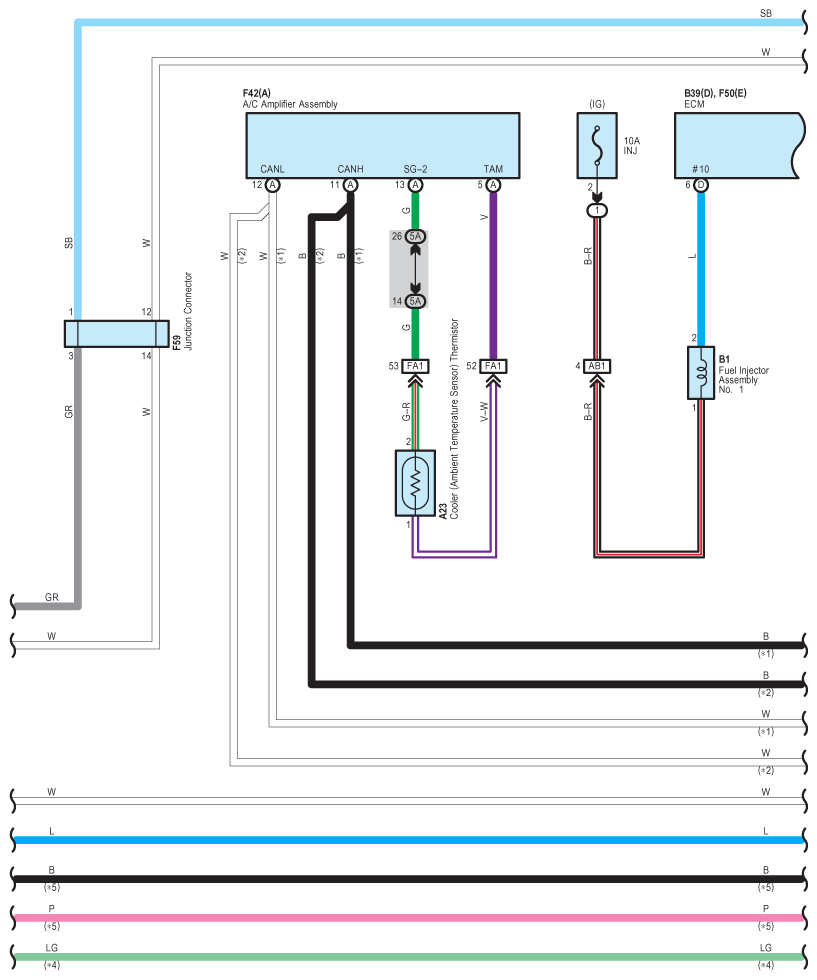

Fig 3: Accessory Meter - Circuit Diagram (3 Of 5)
G08950402Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

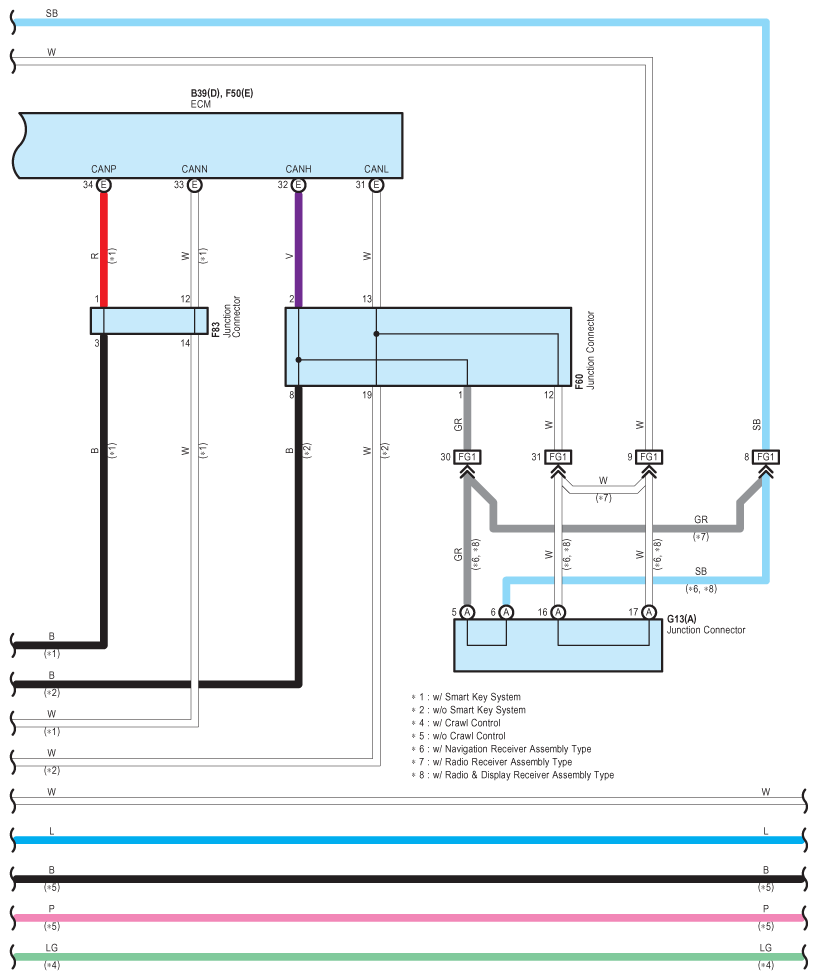

Fig 4: Accessory Meter - Circuit Diagram (4 Of 5)
G08950403Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

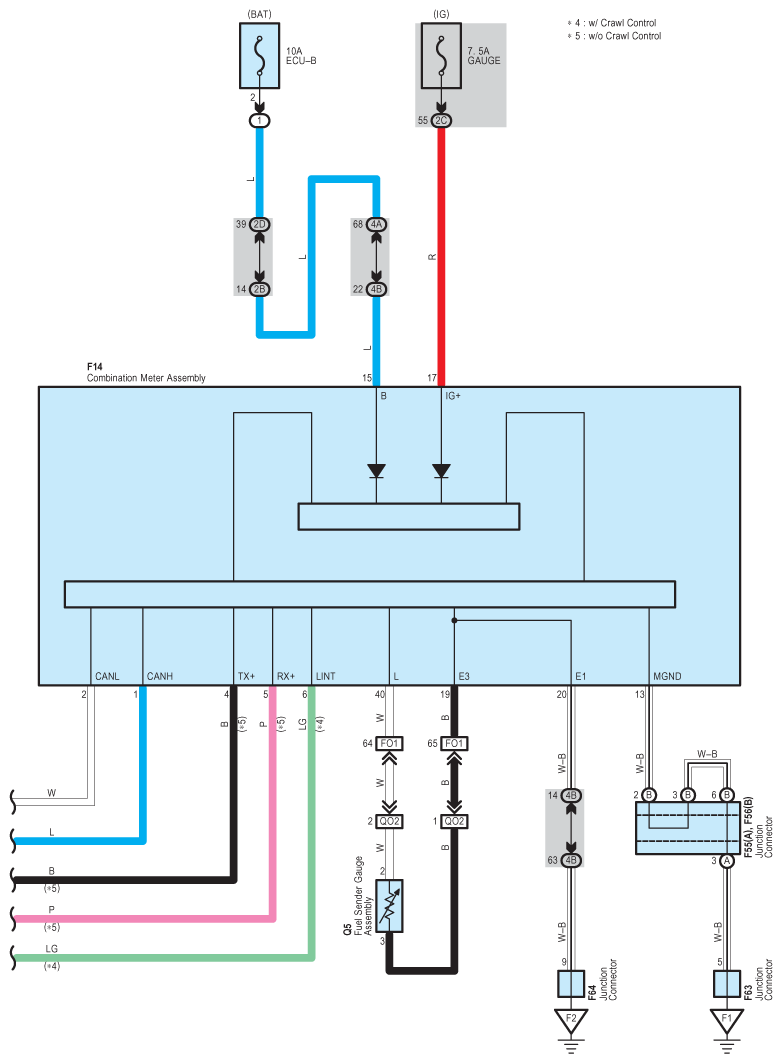

Fig 5: Accessory Meter - Circuit Diagram (5 Of 5)
G08950404Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
