Key Reminder (w/o Smart Key System)
›
Notes
Key Reminder (w/o Smart Key System): Notes

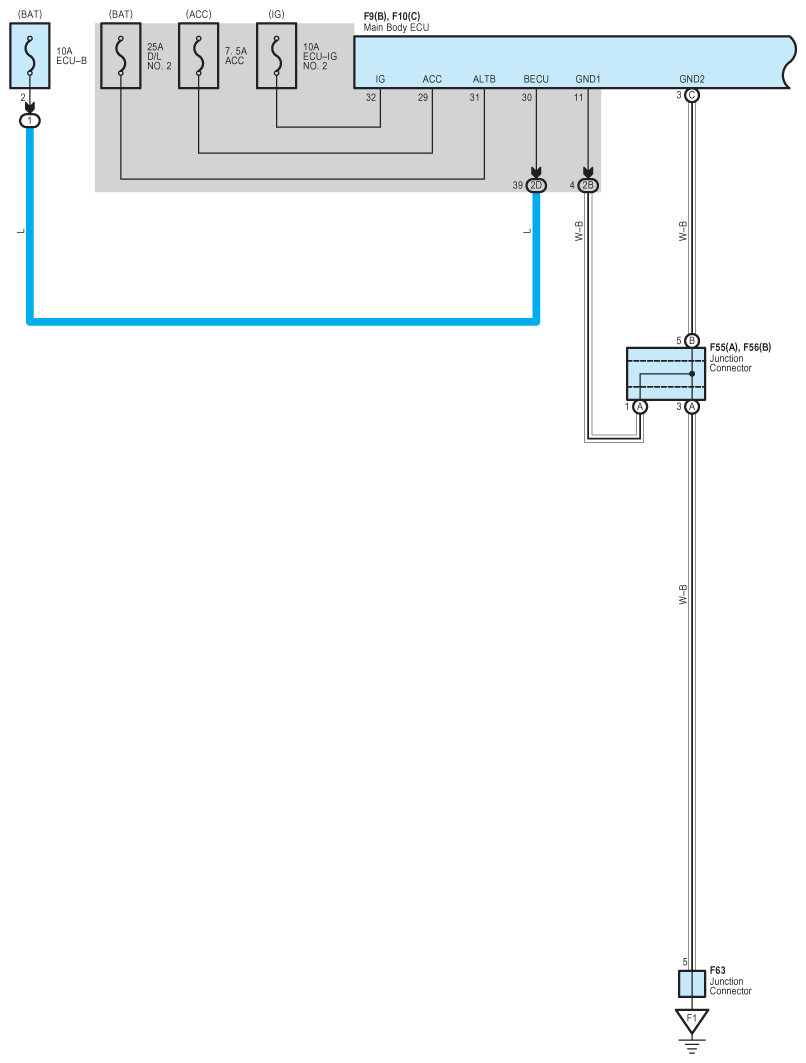

Fig 1: Key Reminder (W/O Smart Key System) - Circuit Diagram (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

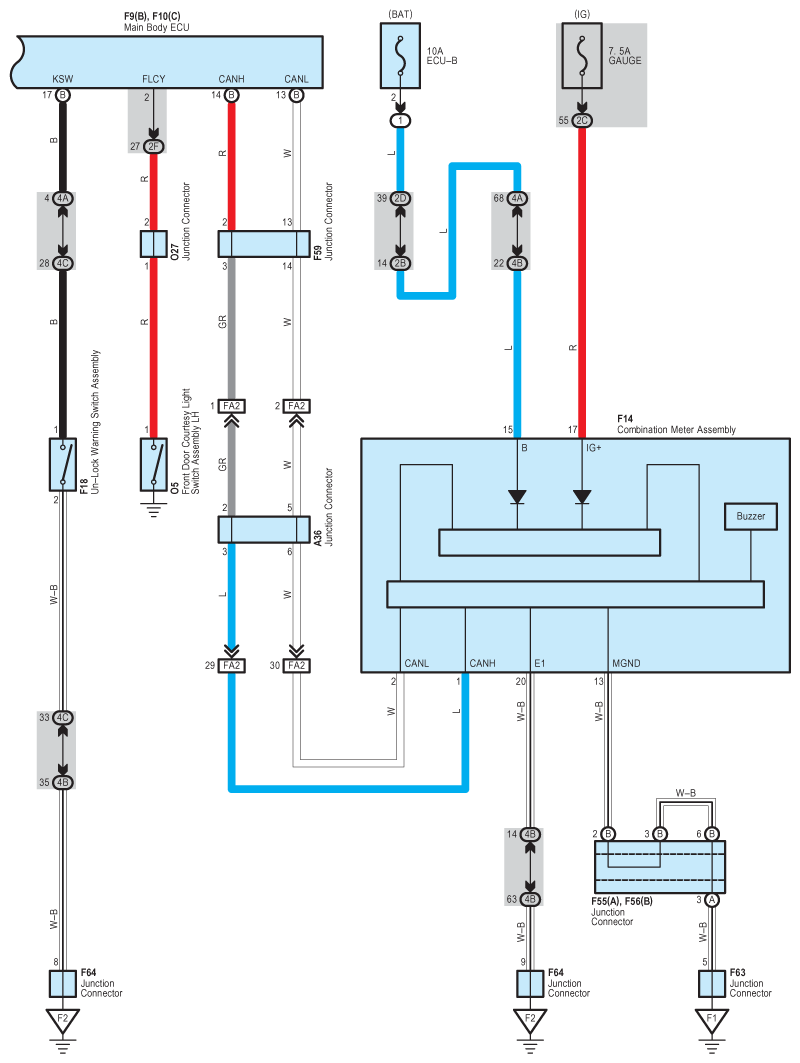

Fig 2: Key Reminder (W/O Smart Key System) - Circuit Diagram (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
