Kinetic Dynamic Suspension System: Notes

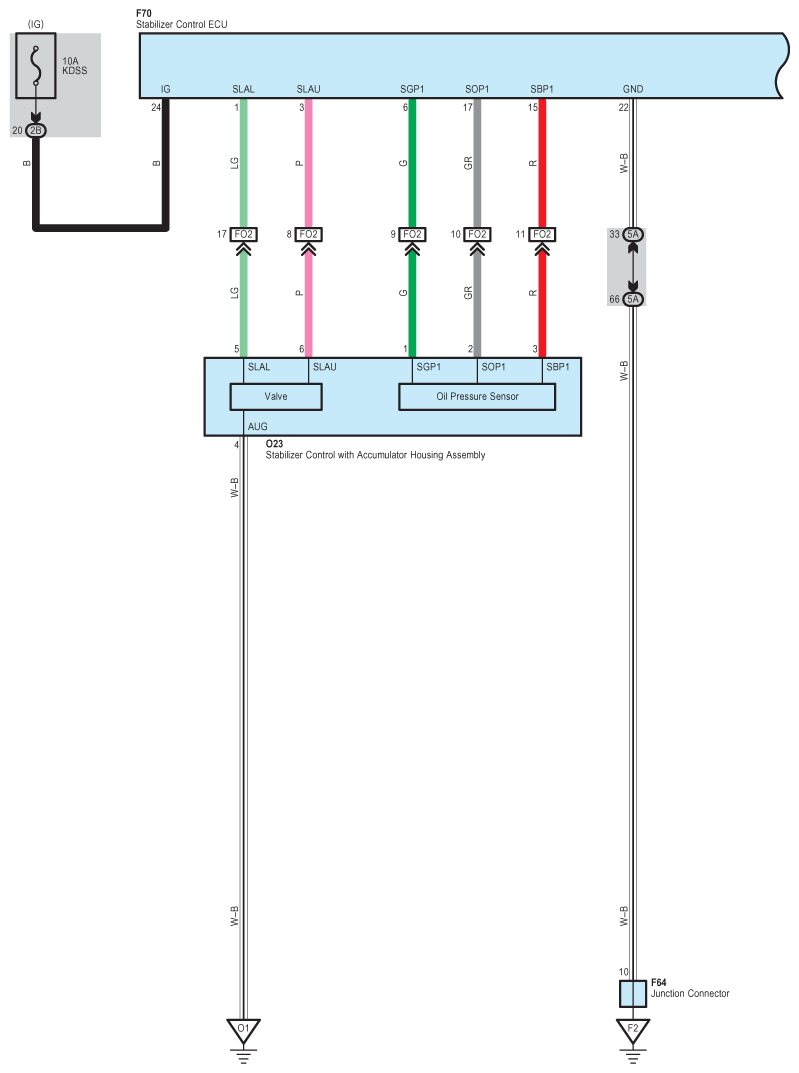

Fig 1: Kinetic Dynamic Suspension System - Circuit Diagram (1 Of 5)
G08950330Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

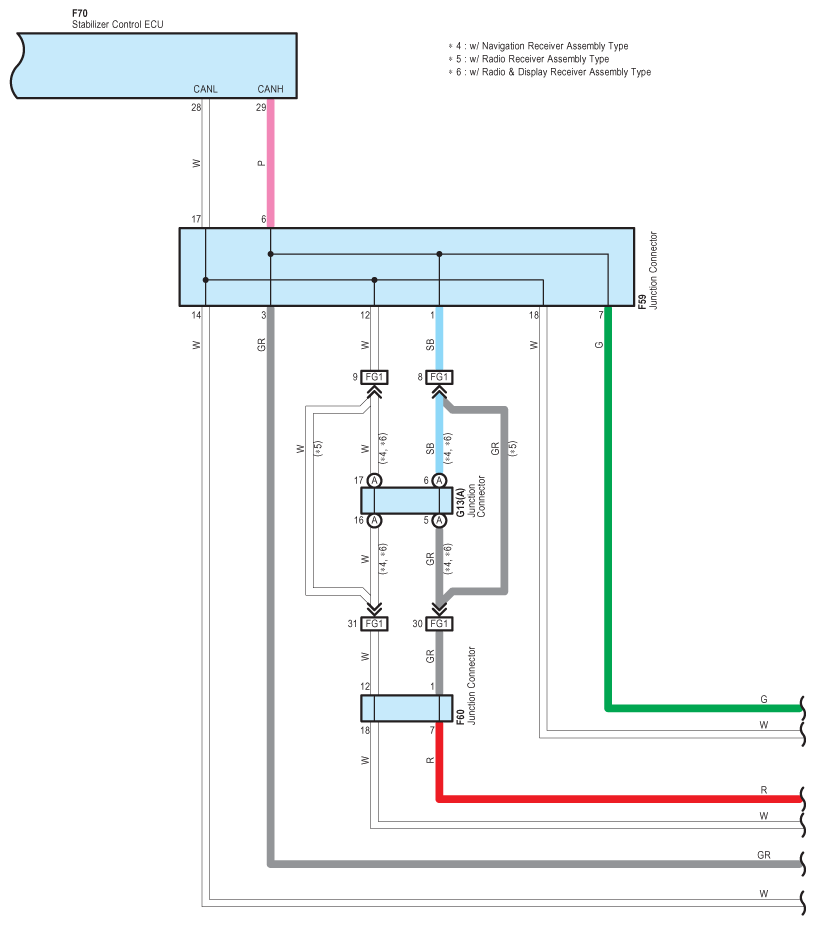

Fig 2: Kinetic Dynamic Suspension System - Circuit Diagram (2 Of 5)
G08950331Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

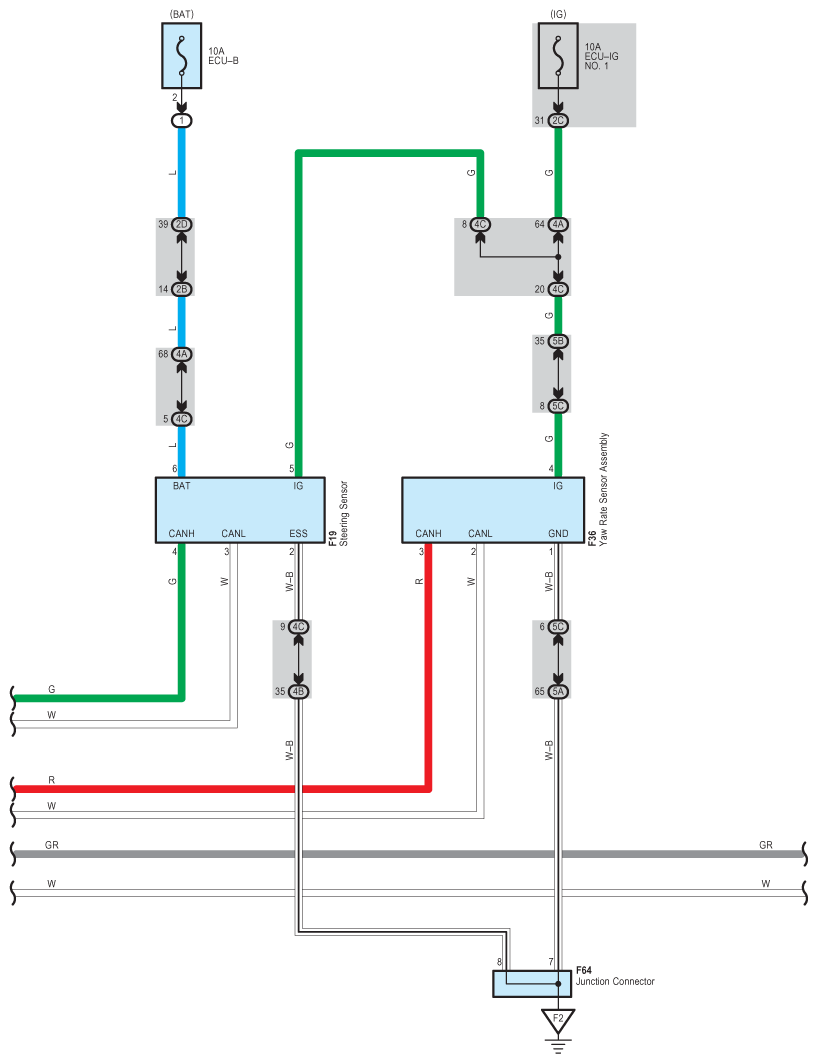

Fig 3: Kinetic Dynamic Suspension System - Circuit Diagram (3 Of 5)
G08950332Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

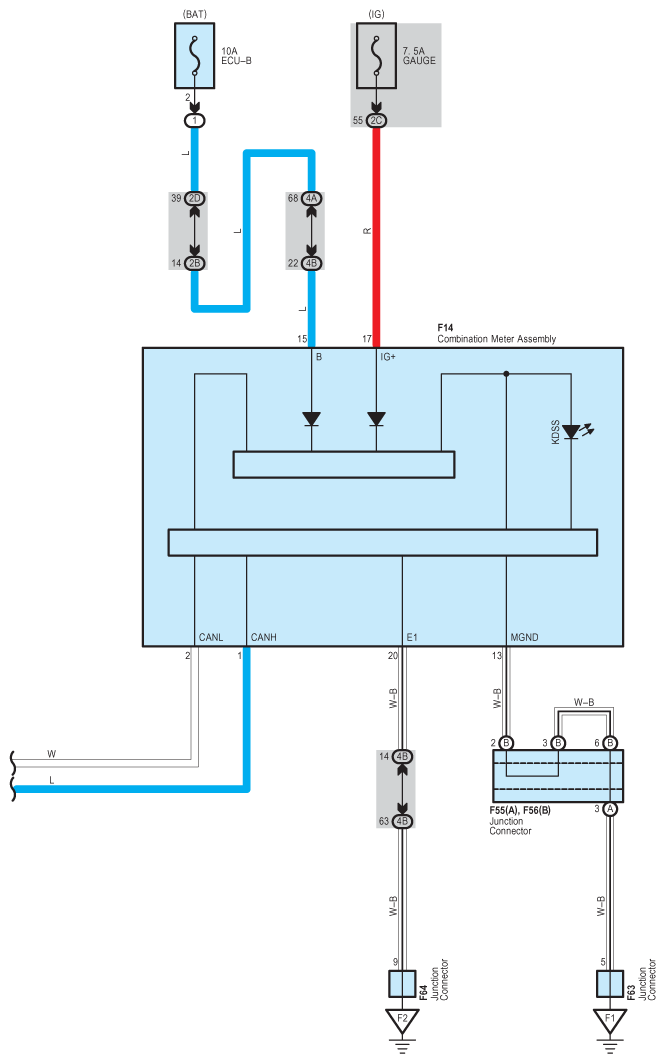

Fig 4: Kinetic Dynamic Suspension System - Circuit Diagram (4 Of 5)
G08950333Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

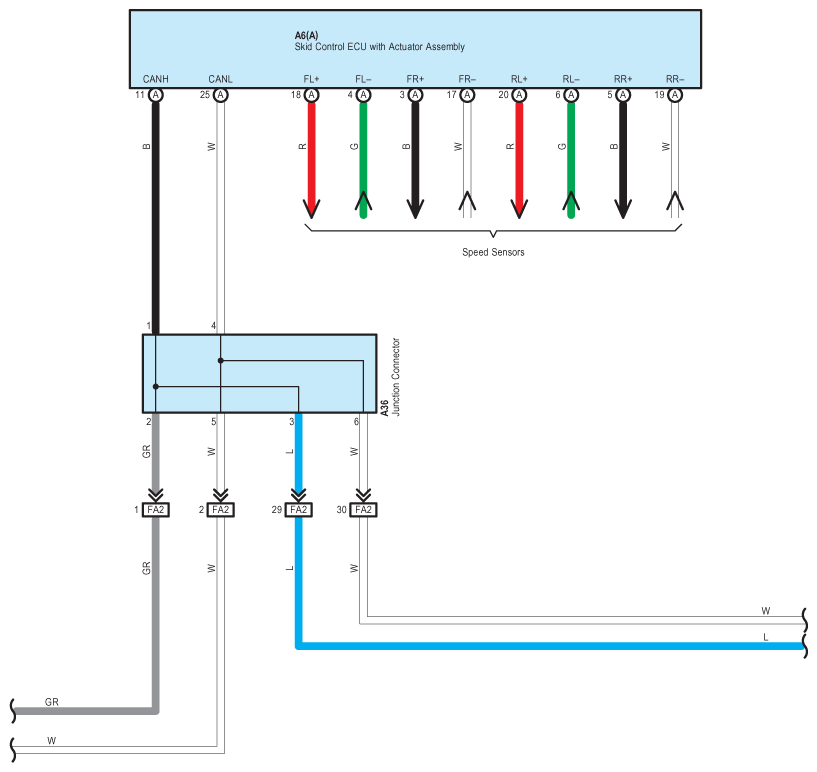

Fig 5: Kinetic Dynamic Suspension System - Circuit Diagram (5 Of 5)
G08950334Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
