Parking Assist (Rear View Monitor w/o Navigation System): Notes

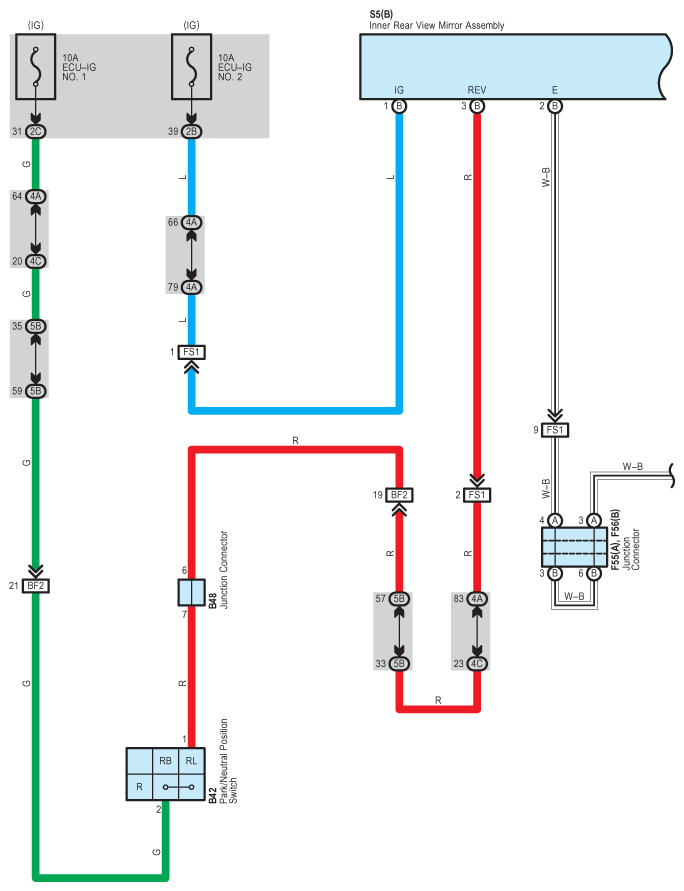

Fig 1: Parking Assist (Rear View Monitor W/O Navigation System) - Circuit Diagram (1 Of 2)
G08950398Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

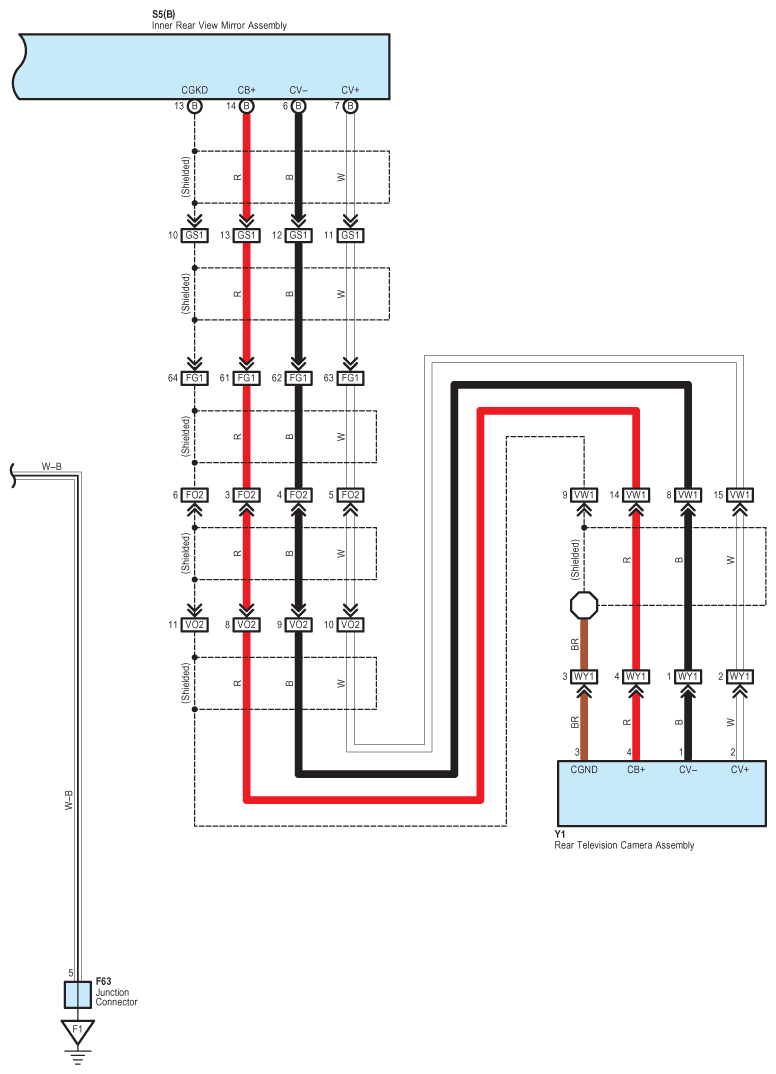

Fig 2: Parking Assist (Rear View Monitor W/O Navigation System) - Circuit Diagram (2 Of 2)
G08950399Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
