Power Steering: Notes

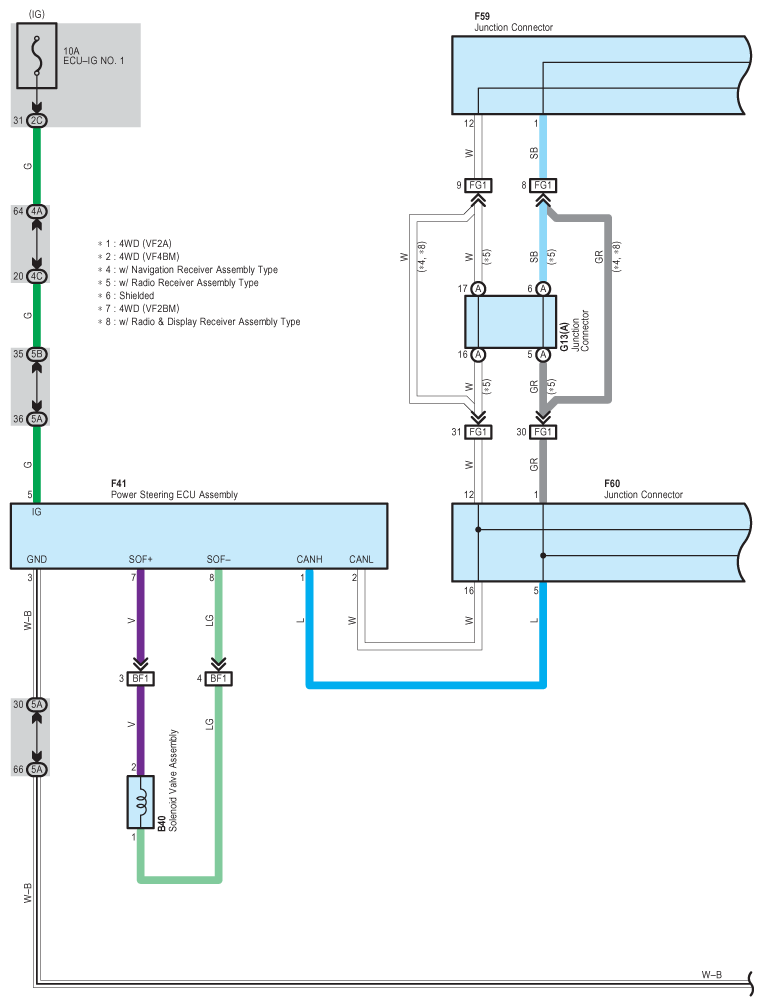

Fig 1: Power Steering - Circuit Diagram (1 Of 5)
G08950350Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Power Steering - Circuit Diagram (2 Of 5)
G08950351Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

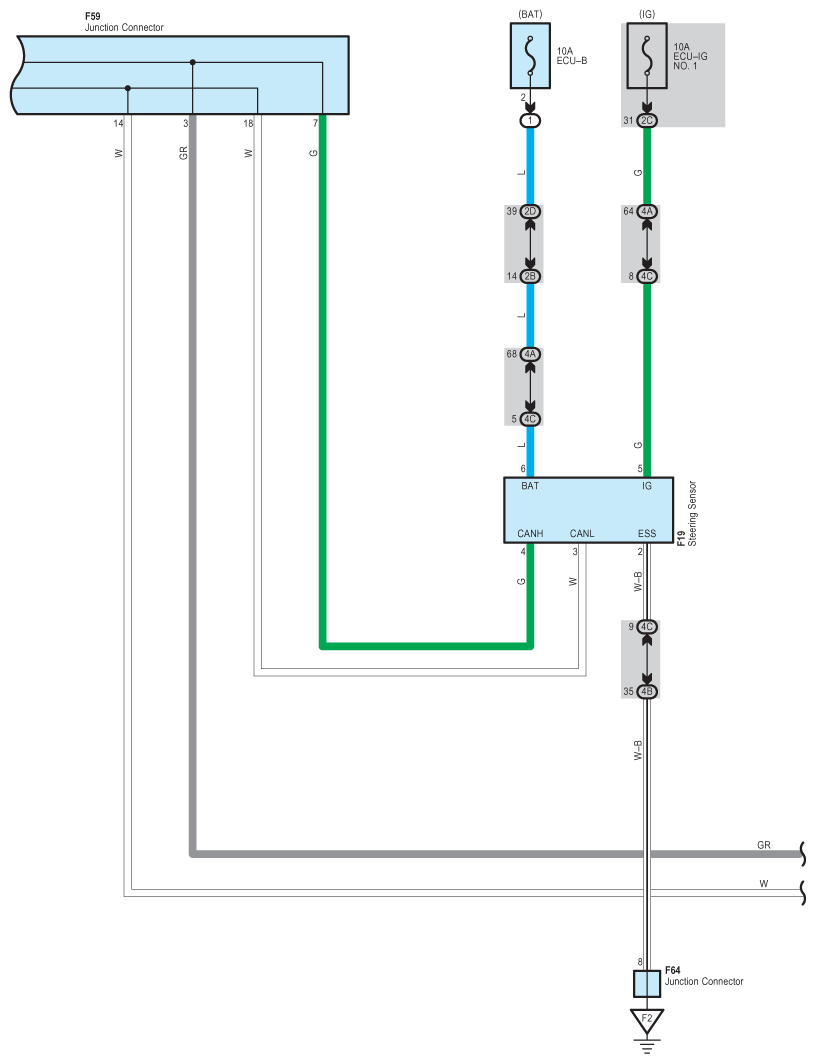

Fig 3: Power Steering - Circuit Diagram (3 Of 5)
G08950352Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

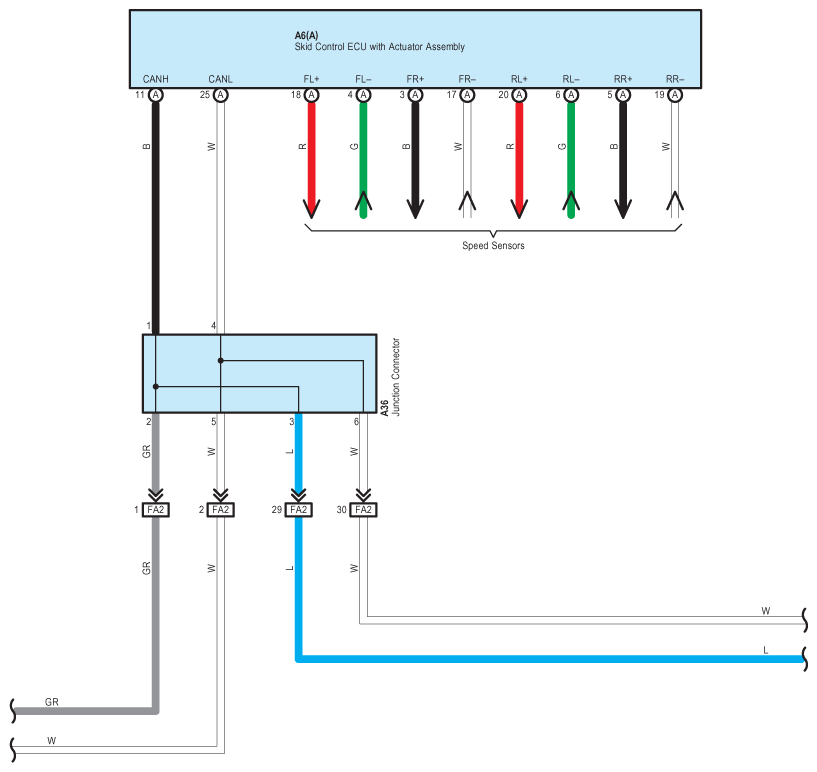

Fig 4: Power Steering - Circuit Diagram (4 Of 5)
G08950353Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

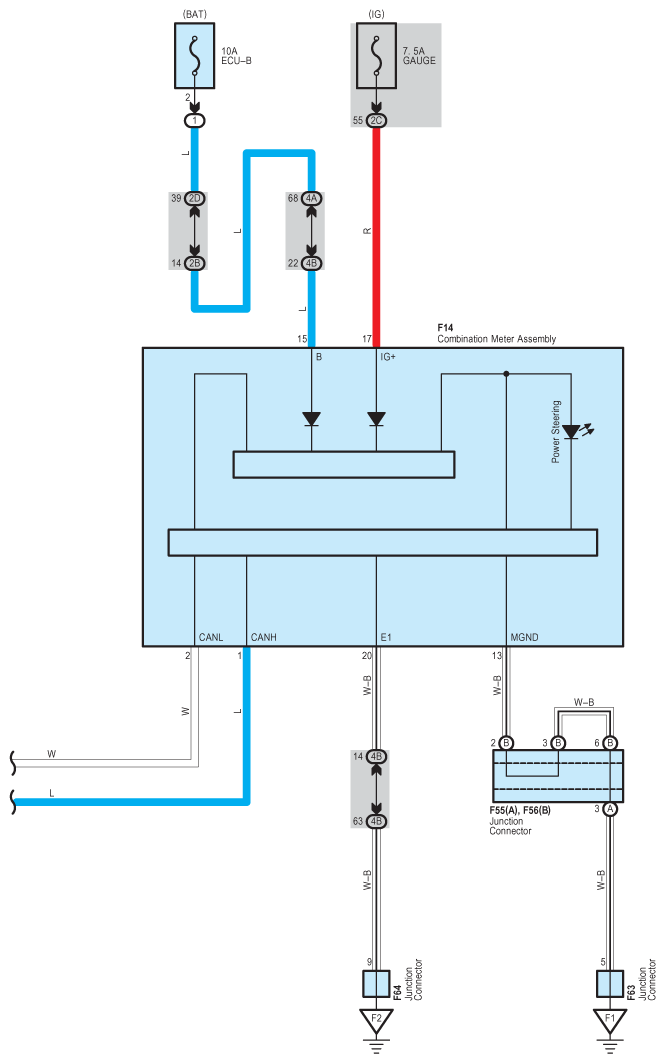

Fig 5: Power Steering - Circuit Diagram (5 Of 5)
G08950354Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
