Parts Location: Illustration

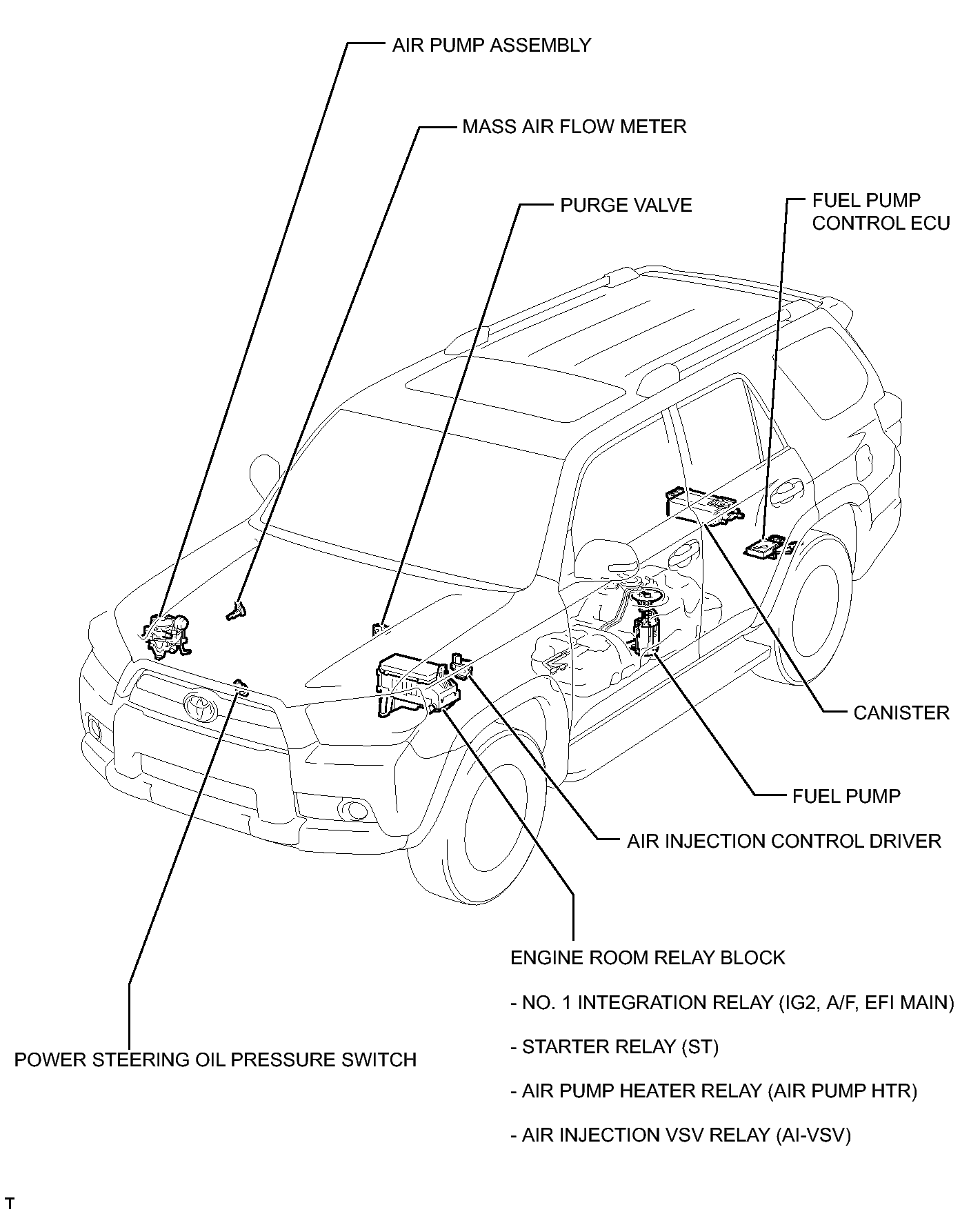

Fig 1: Identifying SFI System Components Location (1 Of 5)
GTY383984Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

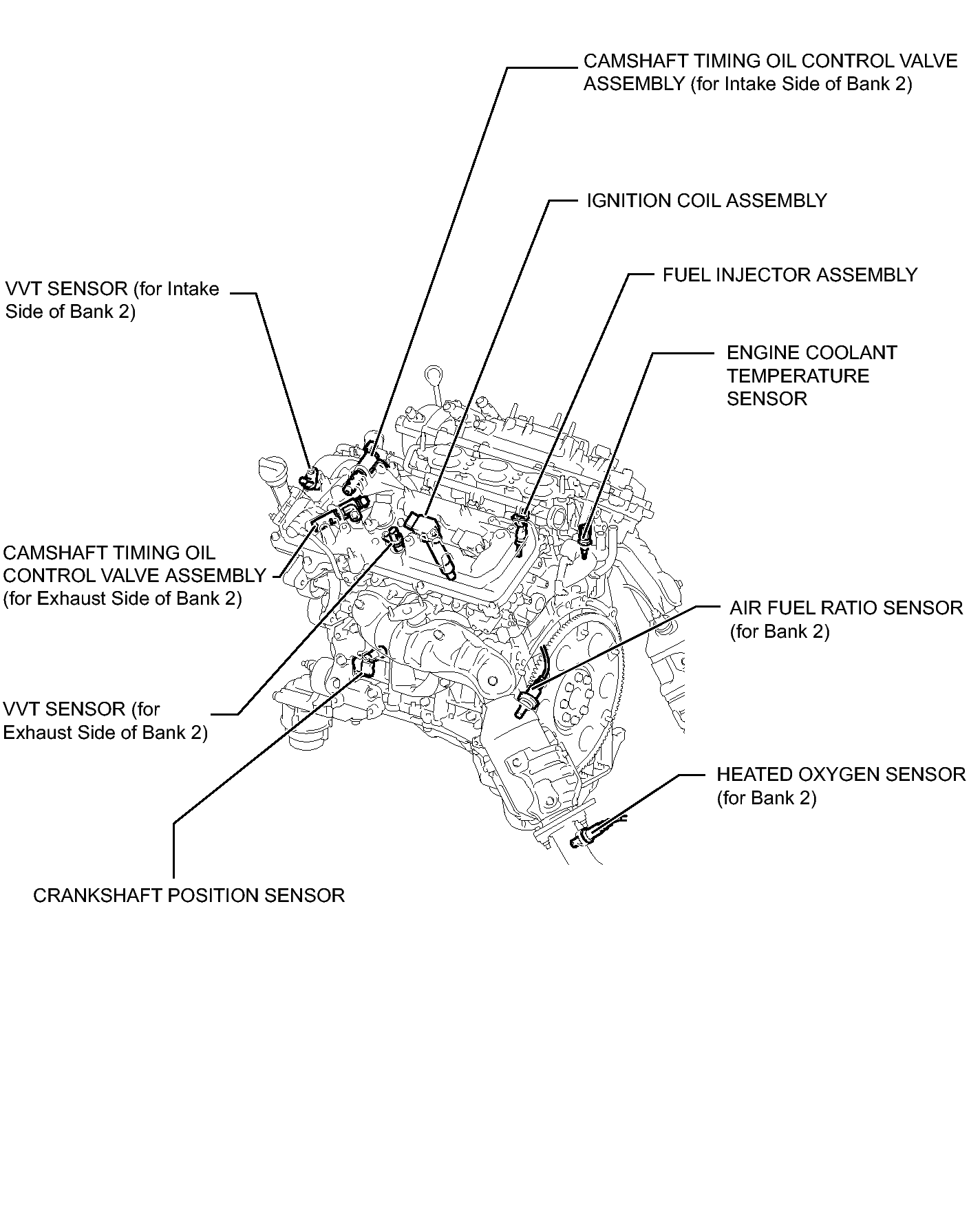

Fig 1: Identifying SFI System Components Location (2 Of 5)
GTY369645Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

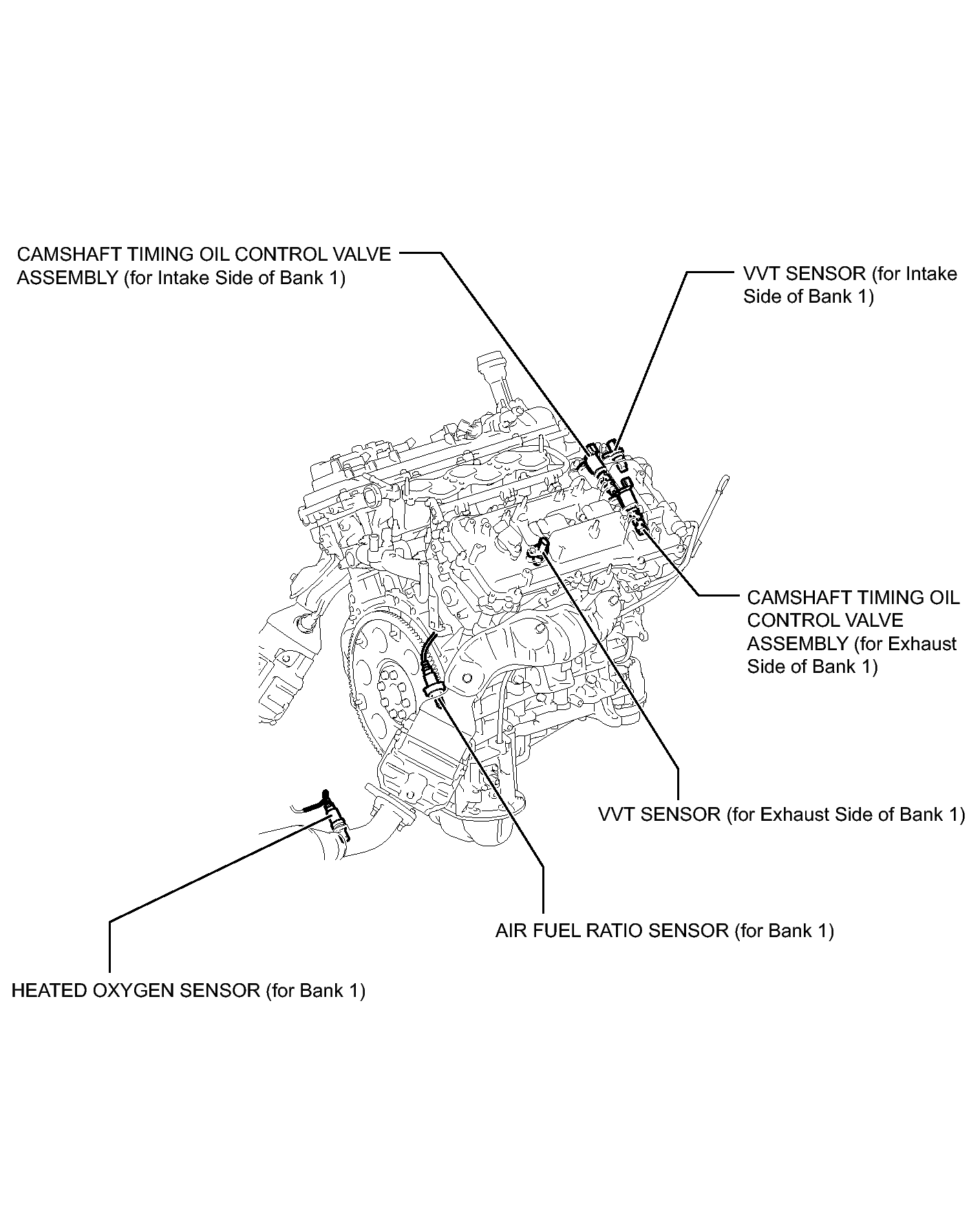

Fig 1: Identifying SFI System Components Location (3 Of 5)
GTY380783Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

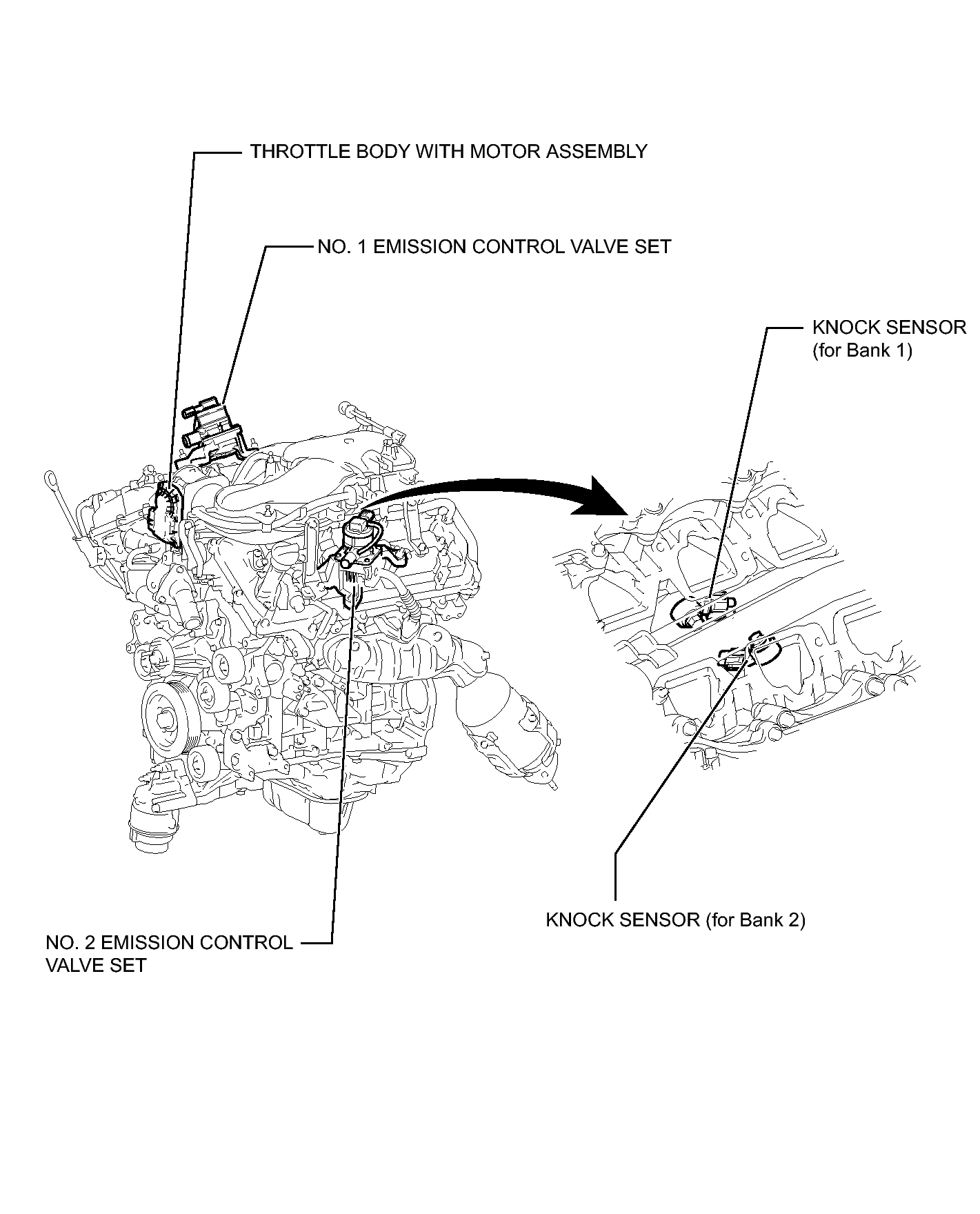

Fig 1: Identifying SFI System Components Location (4 Of 5)
GTY367319Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

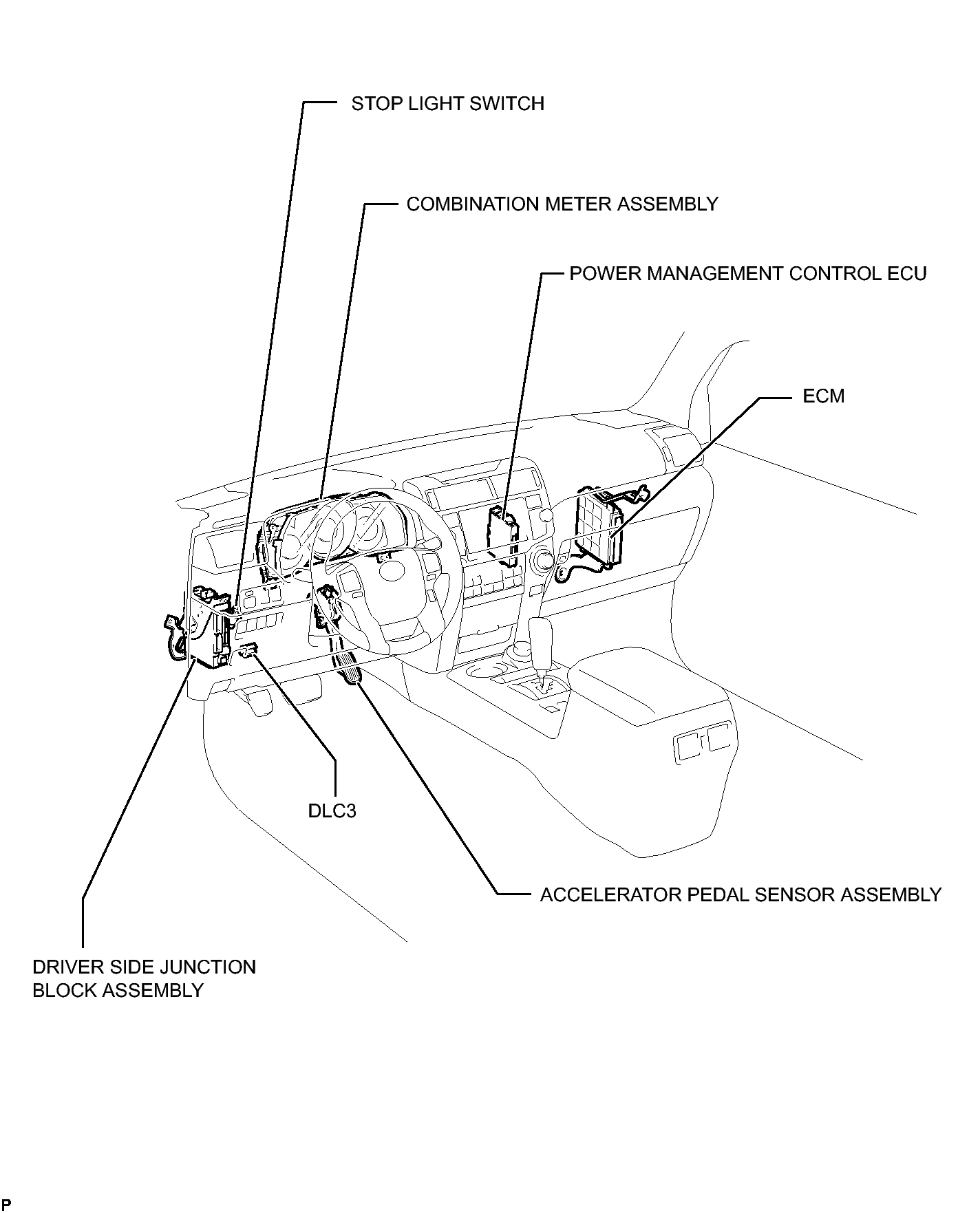

Fig 1: Identifying SFI System Components Location (5 Of 5)
GTY382904Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
