Crankshaft Position Sensor: Removal: Removal

  1. REMOVE COMPRESSOR AND MAGNETIC CLUTCH

    Refer to REMOVAL

  2. REMOVE CRANK POSITION SENSOR
    1. Disconnect the crank position sensor connector.

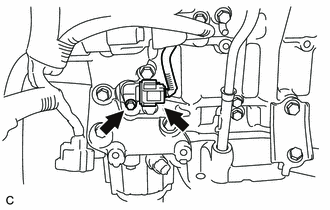

      Fig 1: Locating Crank Position Sensor Connector & Bolt
      GTY315213Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and crank position sensor.
