Parts Location: Illustration

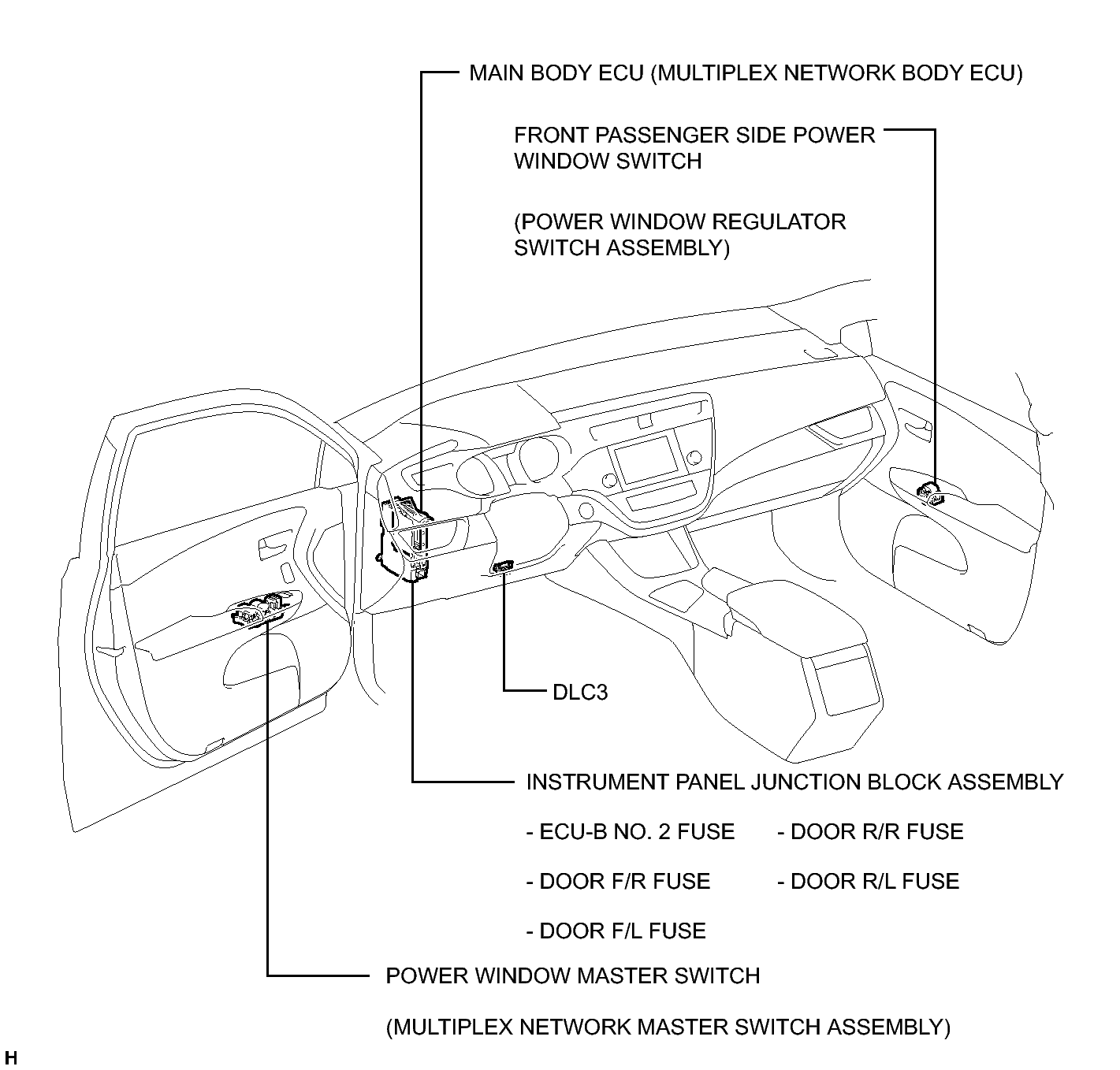

Fig 1: Identifying Power Window Control System Replacement Components Location (1 Of 2)
GTY378621Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

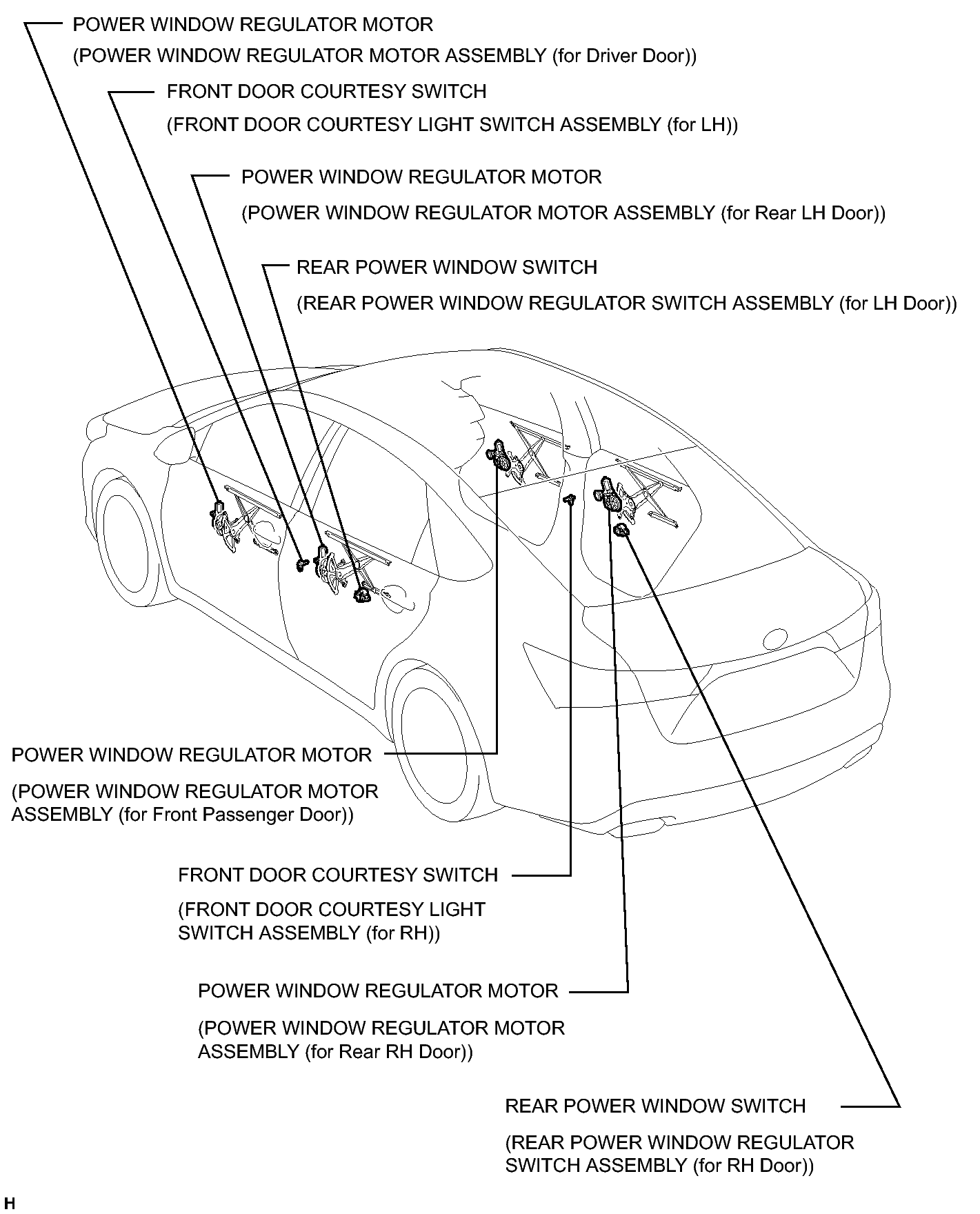

Fig 1: Identifying Power Window Control System Replacement Components Location (2 Of 2)
GTY368858Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
