Safety Connect: Notes

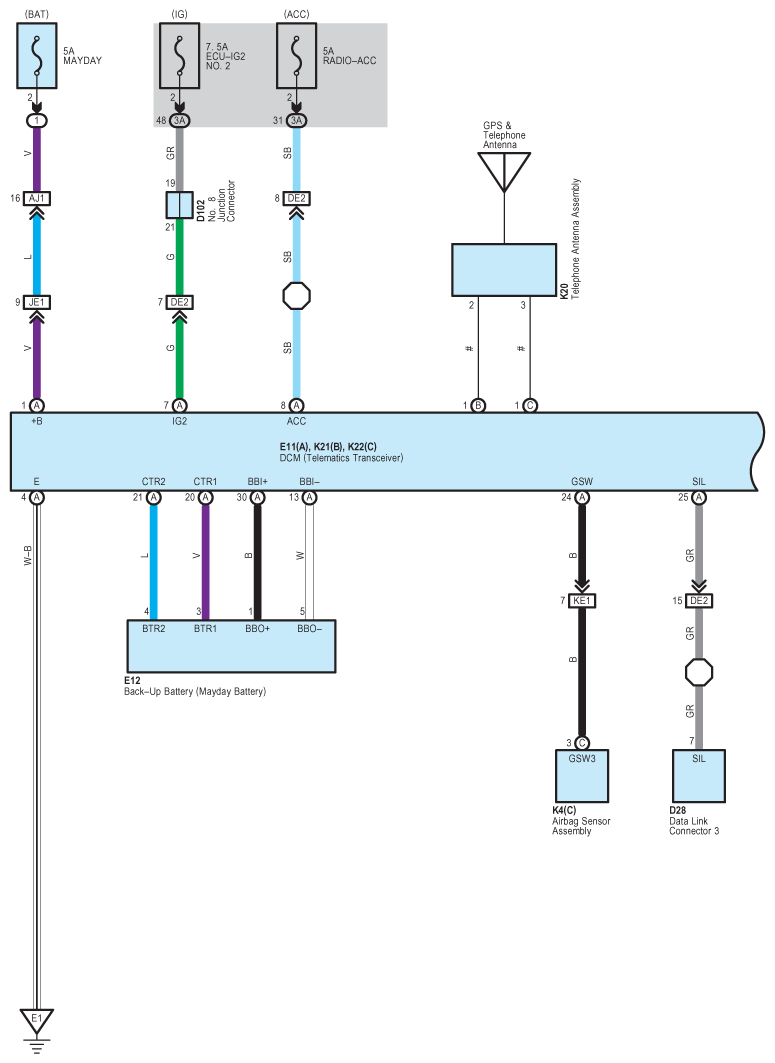

Fig 1: Safety Connect System Wiring Diagram (1 Of 5)
G09095544Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Safety Connect System Wiring Diagram (2 Of 5)
G09095545Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

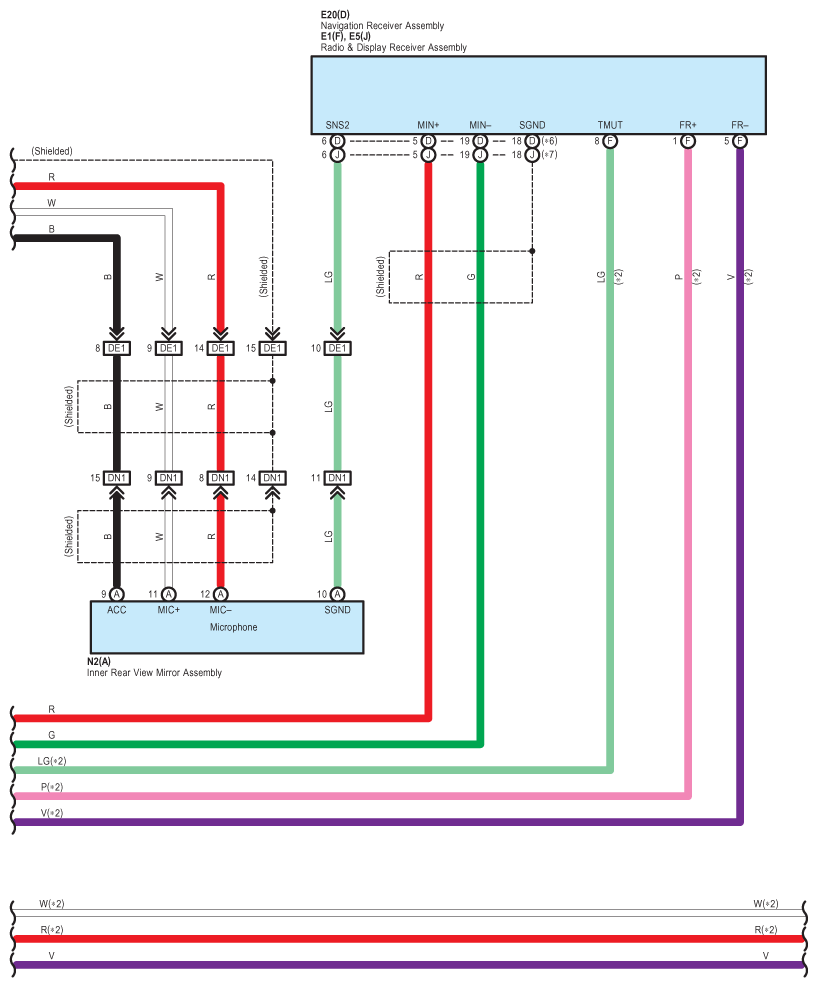

Fig 3: Safety Connect System Wiring Diagram (3 Of 5)
G09095546Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

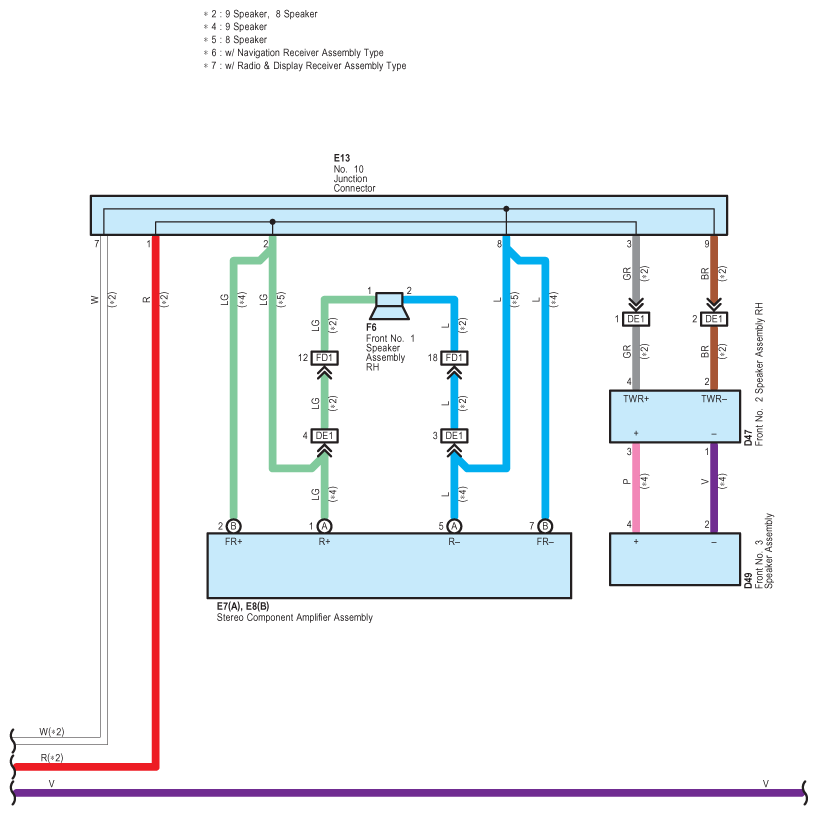

Fig 4: Safety Connect System Wiring Diagram (4 Of 5)
G09095547Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

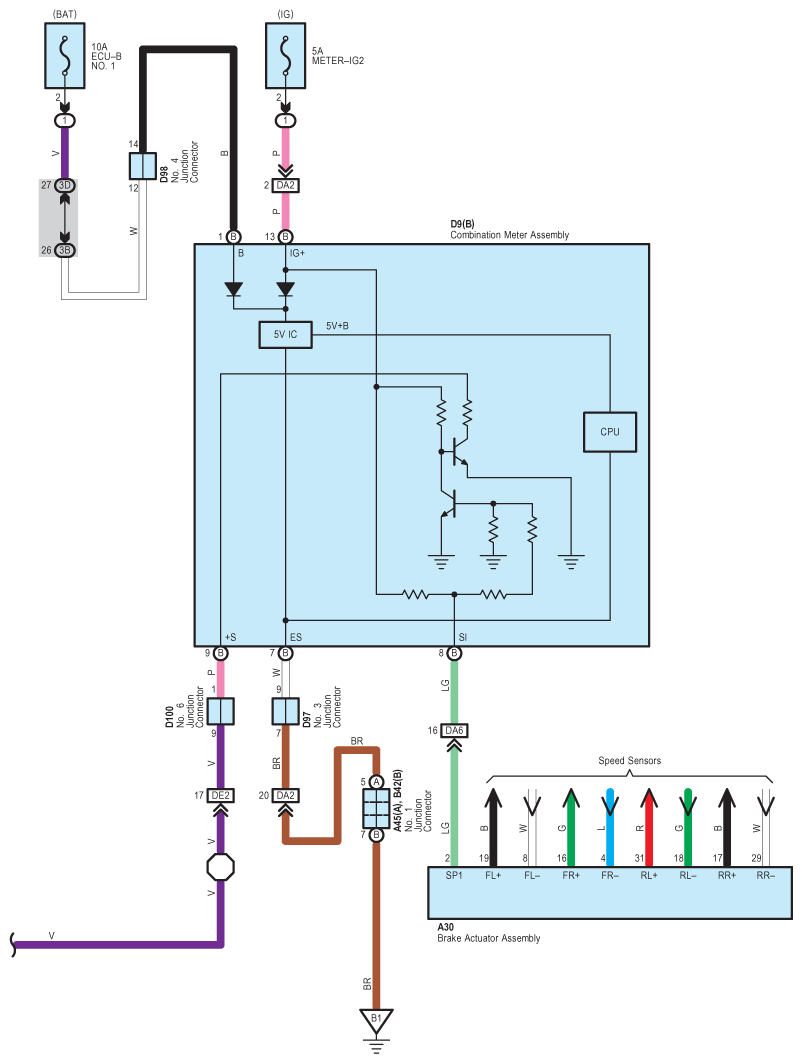

Fig 5: Safety Connect System Wiring Diagram (5 Of 5)
G09095548Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
