Engine Control System (Service Information) (Except Hybrid): ECM: Components: Illustration

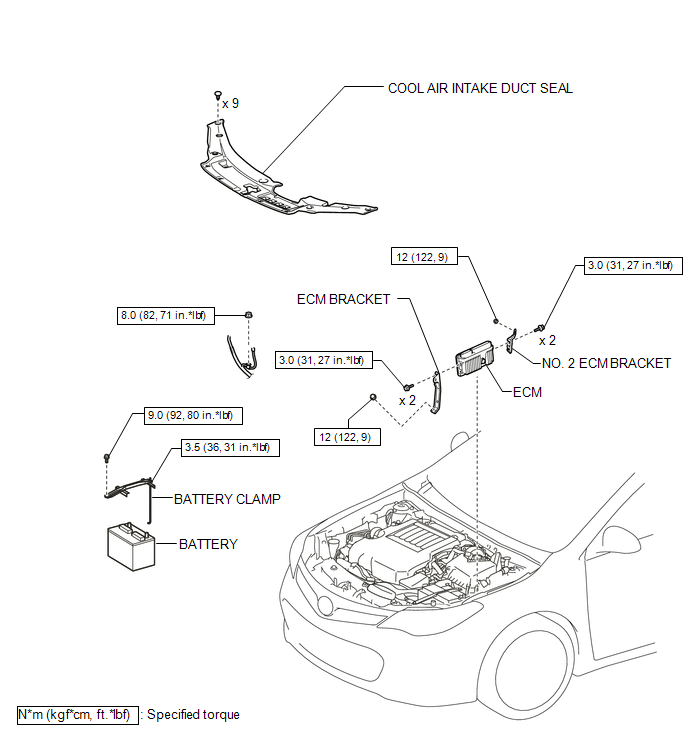

Fig 1: Identifying ECM Replacement Components With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
