Power Source: Notes

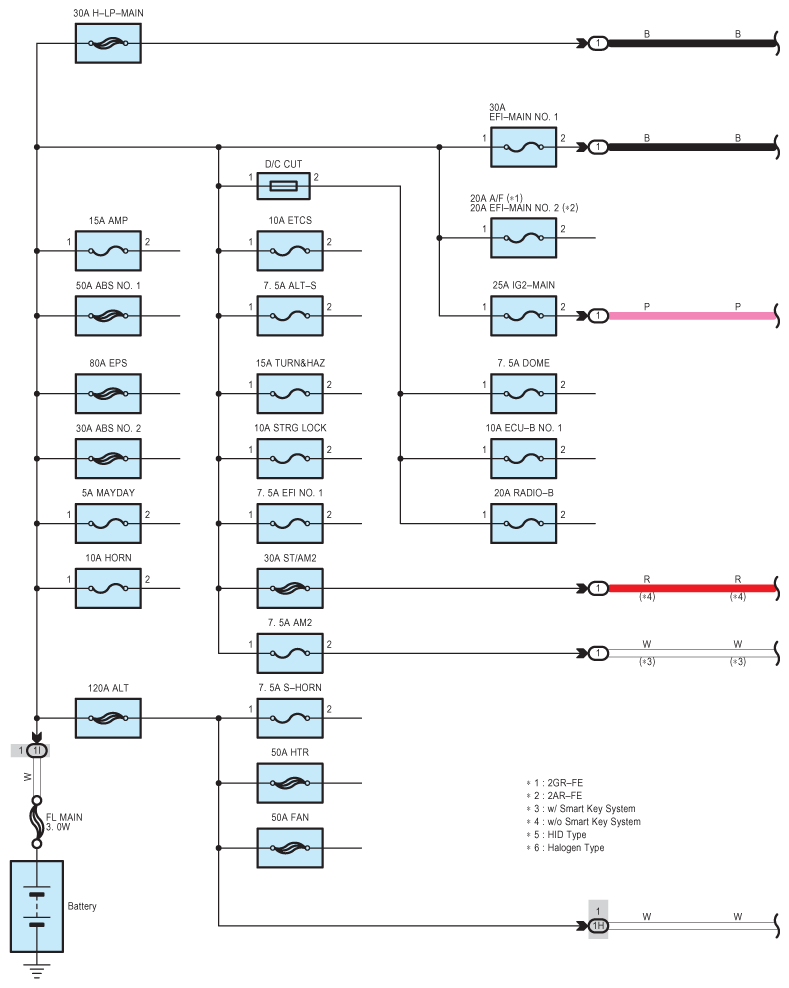

Fig 1: Power Source System Wiring Diagram (1 Of 4)
G09105014Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

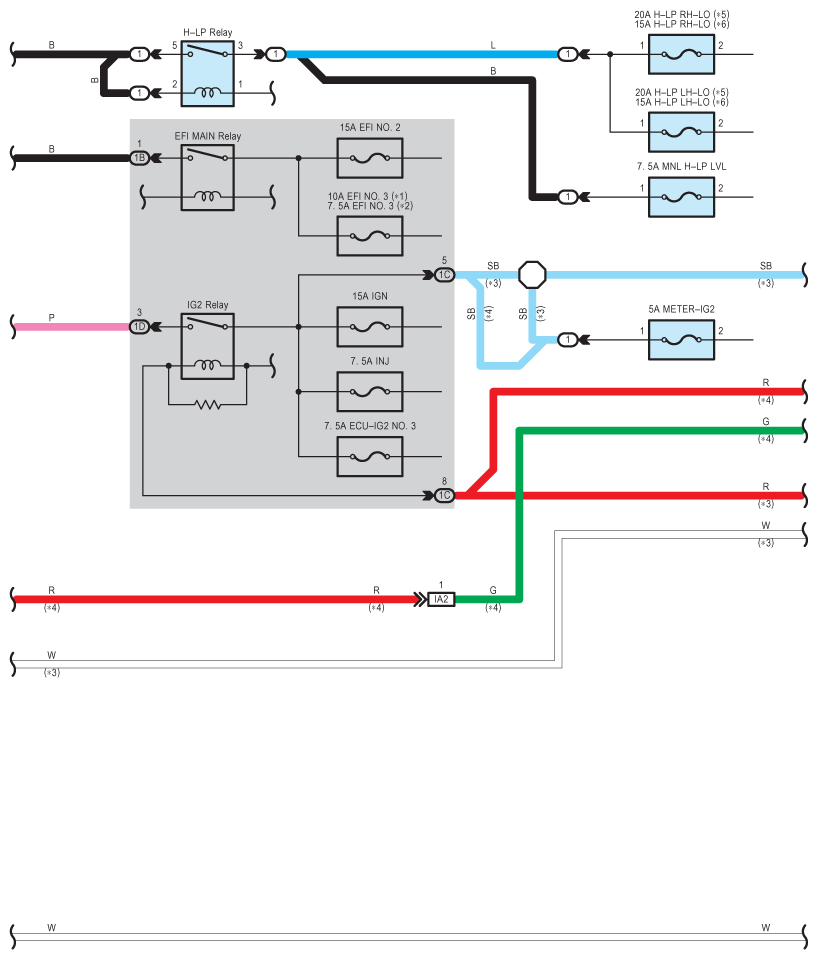

Fig 2: Power Source System Wiring Diagram (2 Of 4)
G09105015Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

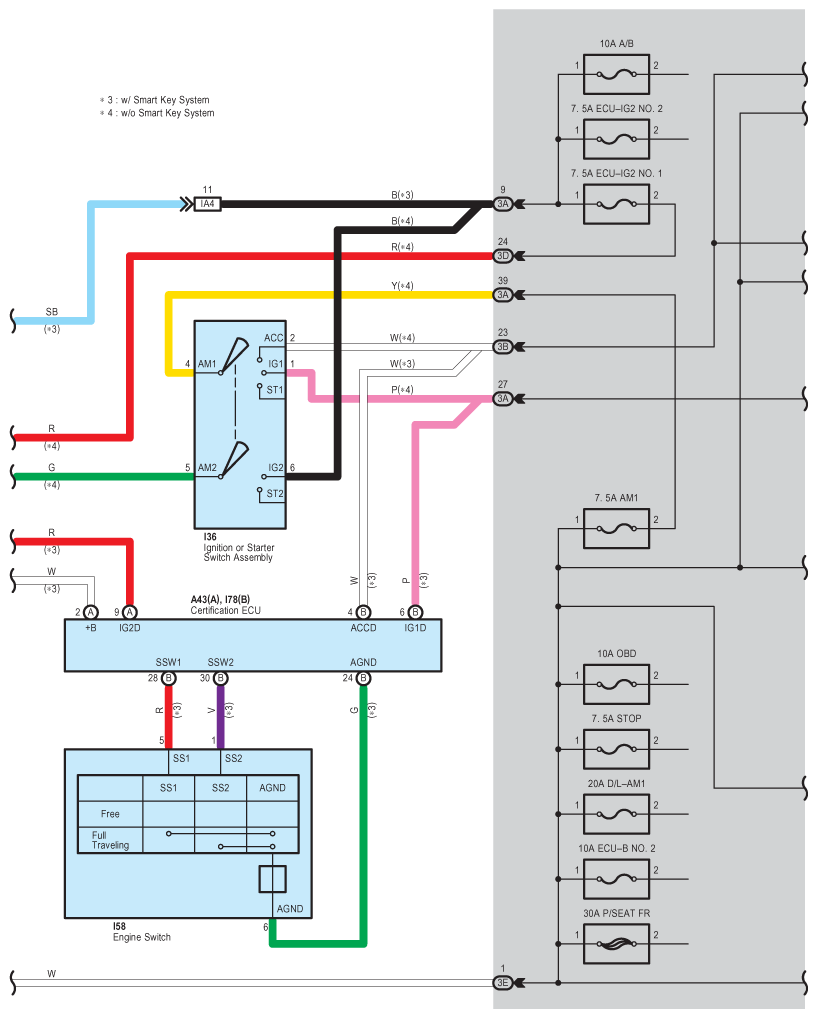

Fig 3: Power Source System Wiring Diagram (3 Of 4)
G09105016Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

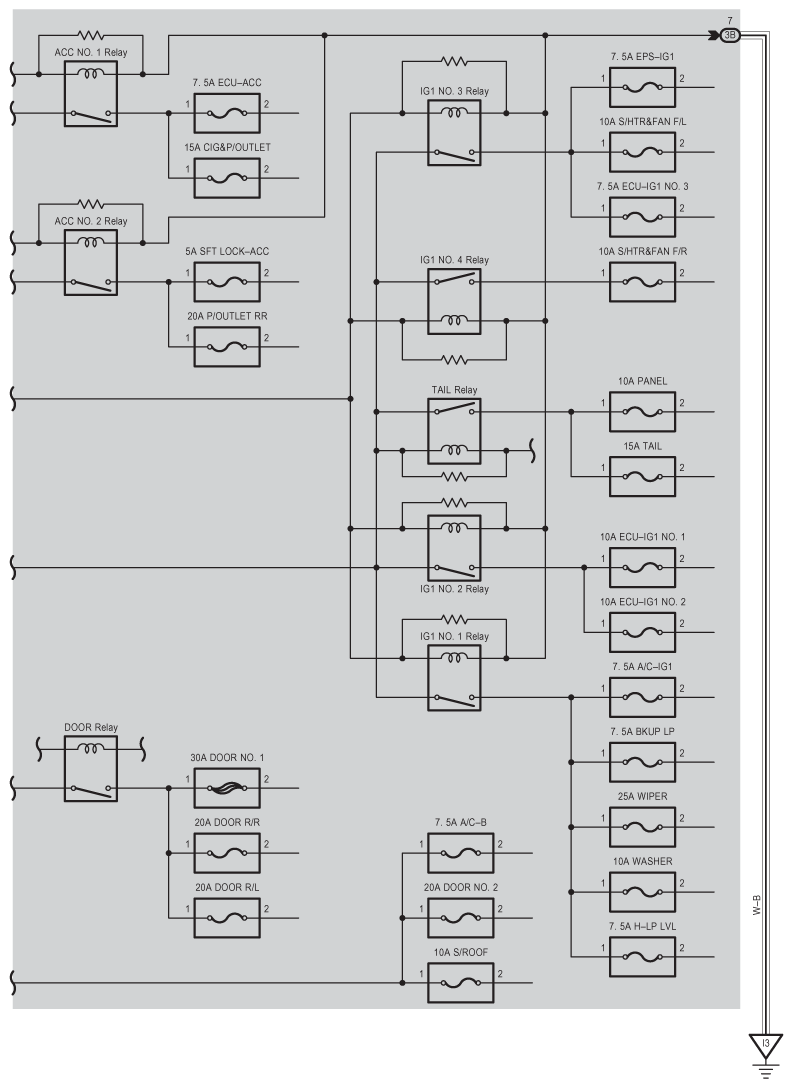

Fig 4: Power Source System Wiring Diagram (4 Of 4)
G09105017Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
