Navigation System (Diagnostics - Introduction)
›
Navigation System
›
System Diagram
›
System Diagram
System Diagram

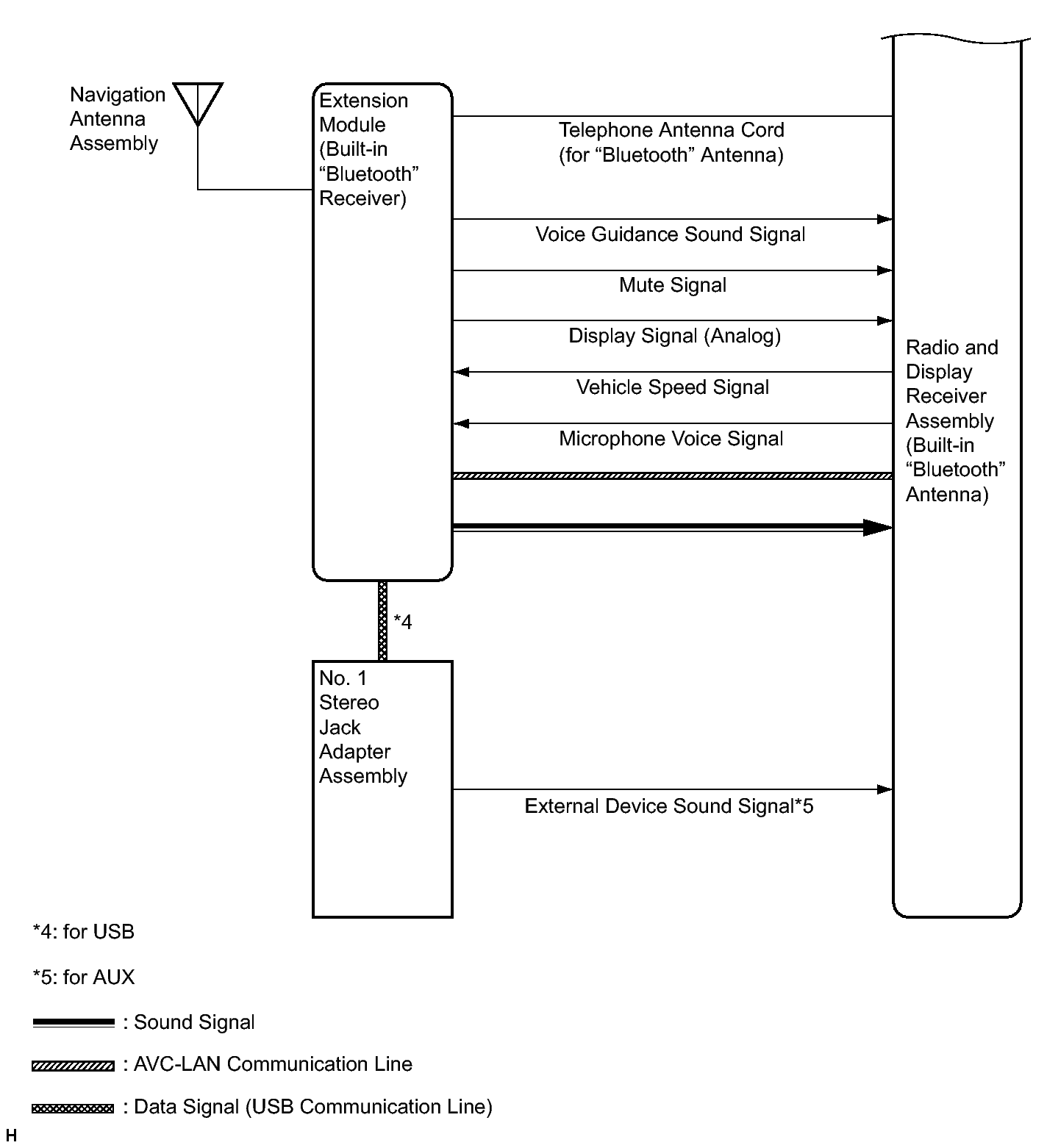

Fig 1: Navigation System System Diagram (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

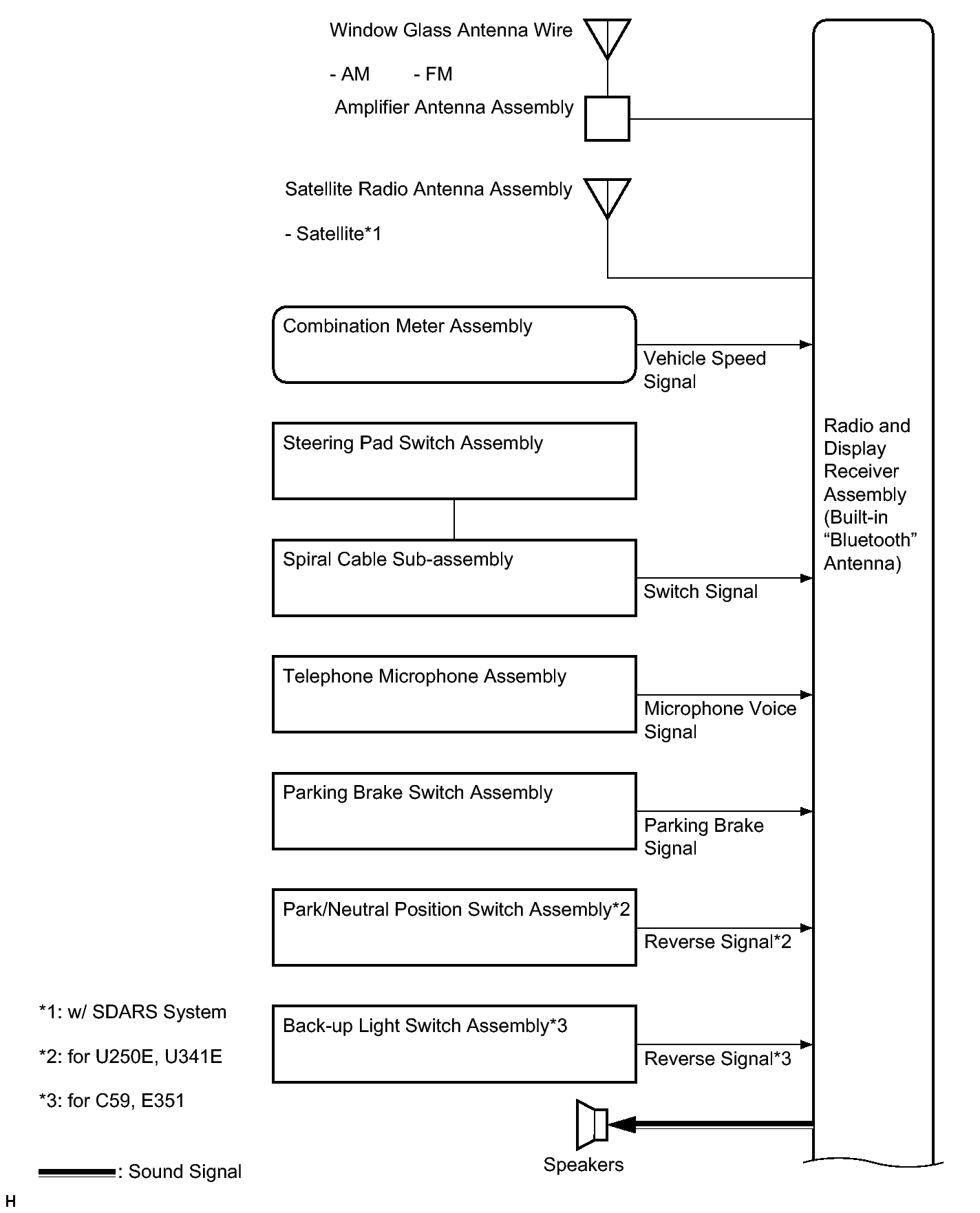

Fig 2: Navigation System System Diagram (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
