Charging (TMC Made): Notes

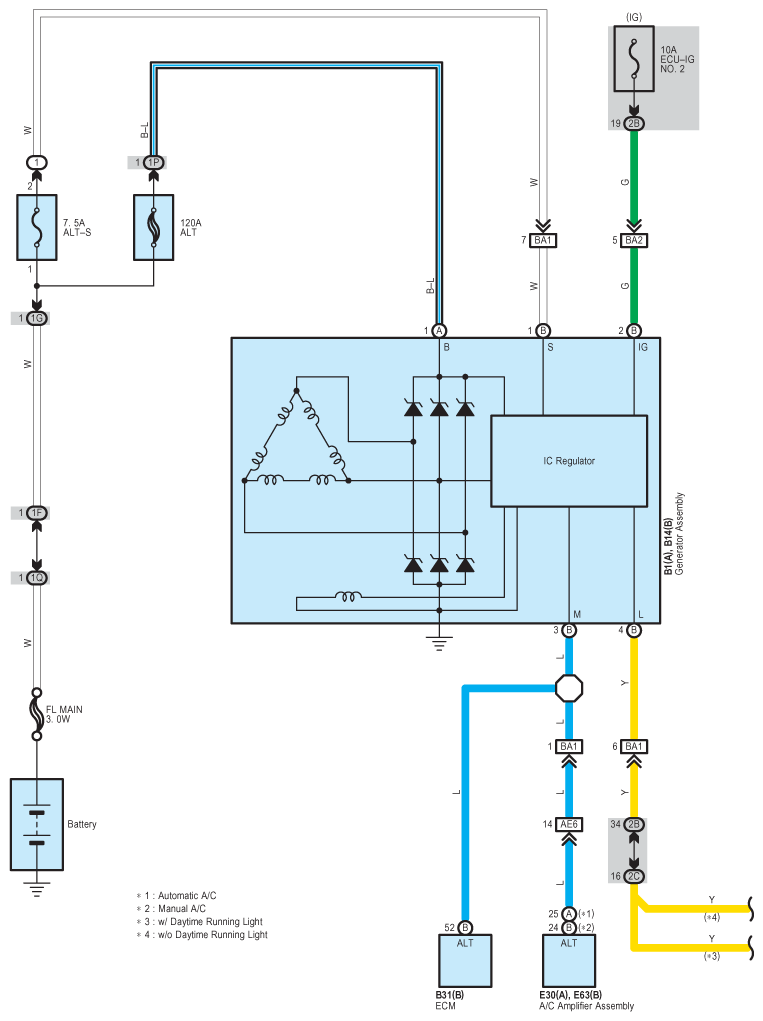

Fig 1: Charging System Wiring Diagram (TMC Made; 1 Of 2)
G09106428Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

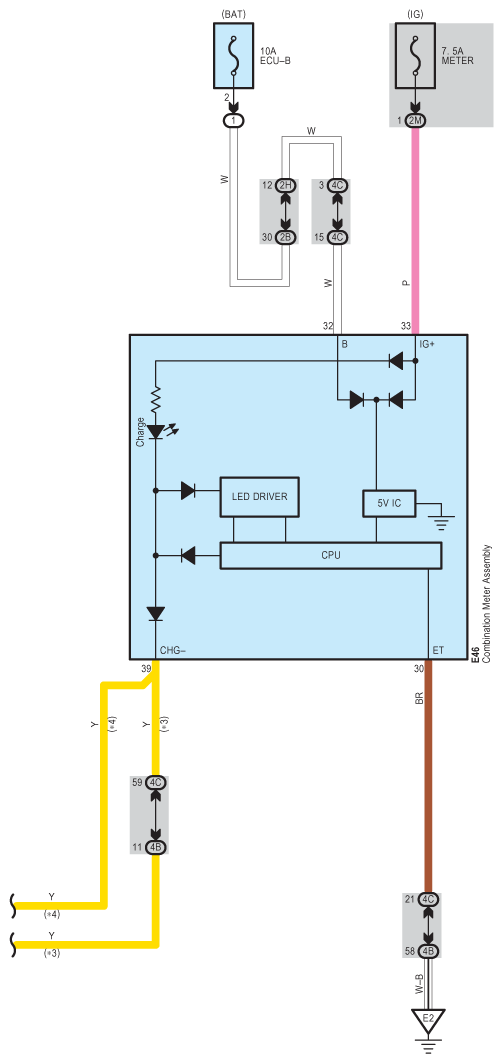

Fig 2: Charging System Wiring Diagram (TMC Made; 2 Of 2)
G09106429Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
