Cooling Fan (TMC Made)
›
Notes
Cooling Fan (TMC Made): Notes

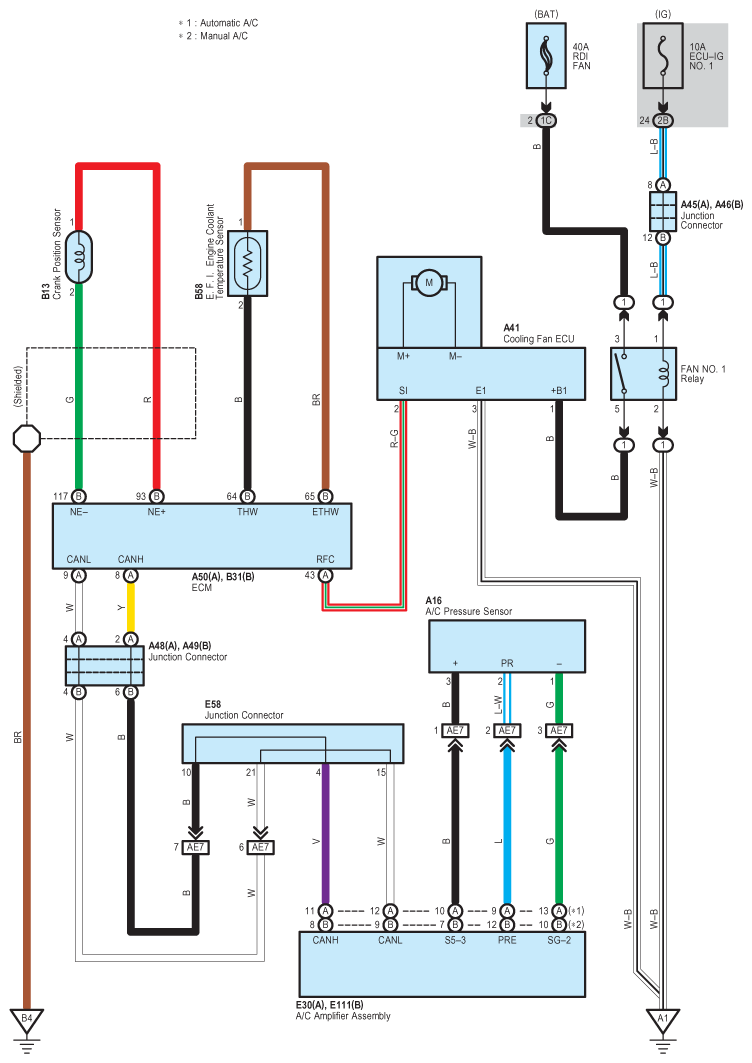

Fig 1: Cooling Fan System Wiring Diagram (TMC Made)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
