Cruise Control (2AZ-FE) (Except TMC Made): Notes

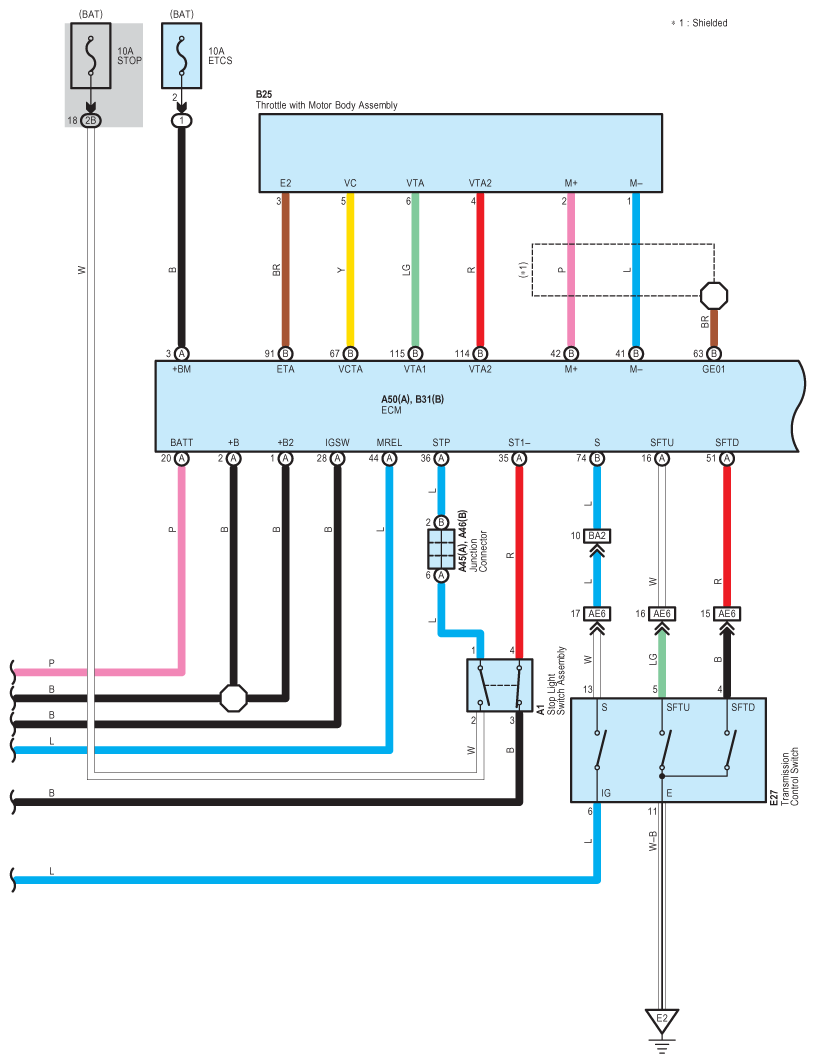

Fig 1: Cruise Control System Wiring Diagram (2AZ-FE Except TMC Made; 1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

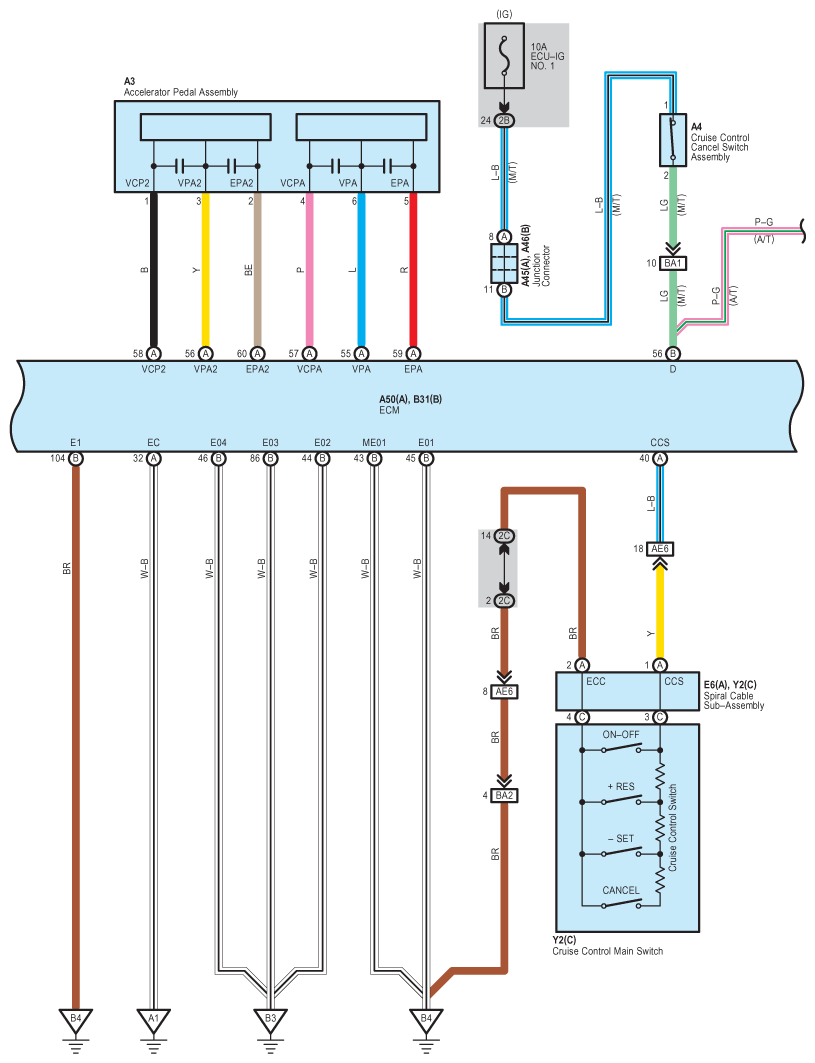

Fig 2: Cruise Control System Wiring Diagram (2AZ-FE Except TMC Made; 2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

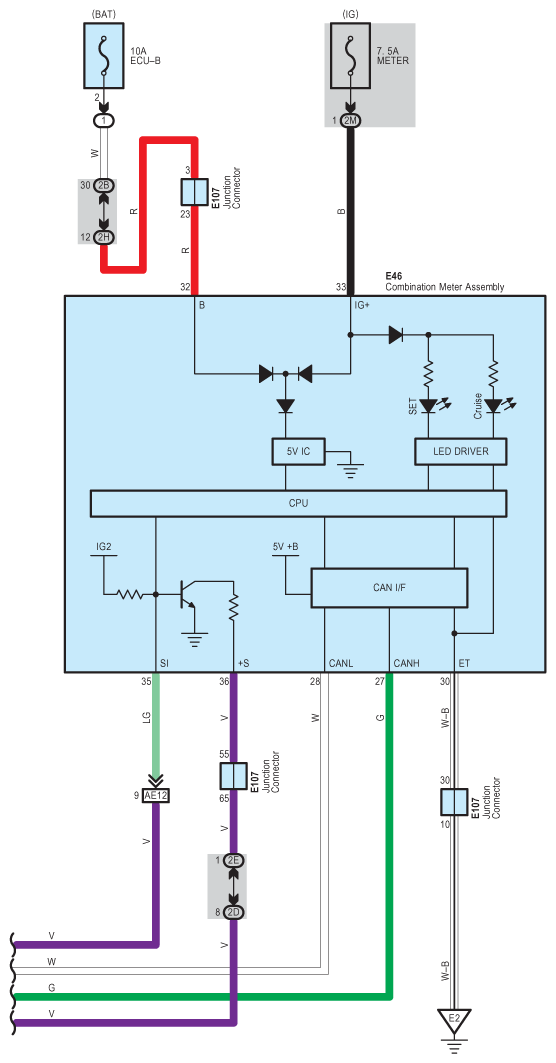

Fig 3: Cruise Control System Wiring Diagram (2AZ-FE Except TMC Made; 3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

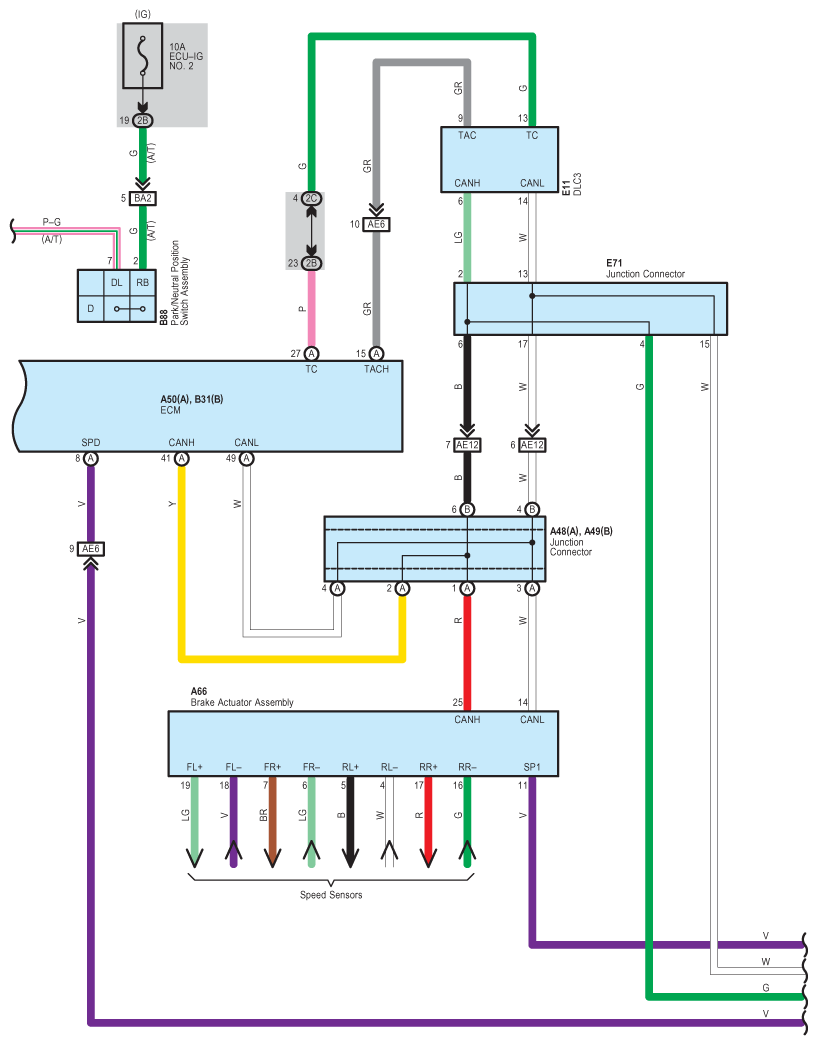

Fig 4: Cruise Control System Wiring Diagram (2AZ-FE Except TMC Made; 4 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

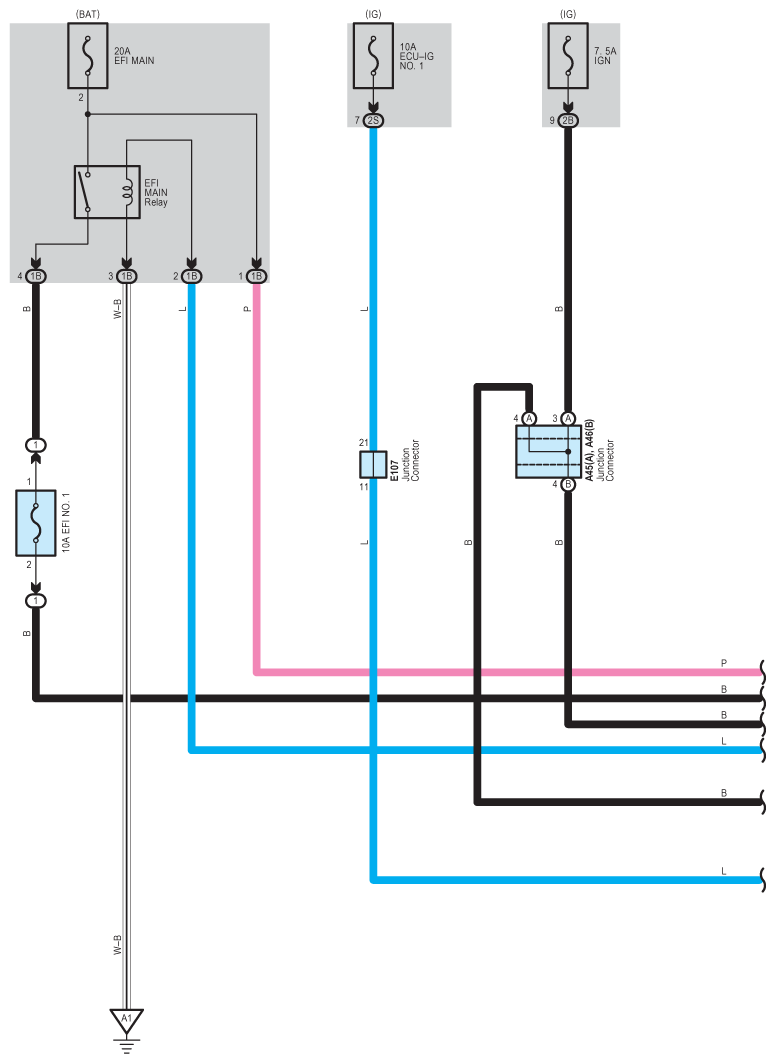

Fig 5: Cruise Control System Wiring Diagram (2AZ-FE Except TMC Made; 5 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
