Engine Immobilizer System (w/o Smart Key System) (Except TMC Made): Notes

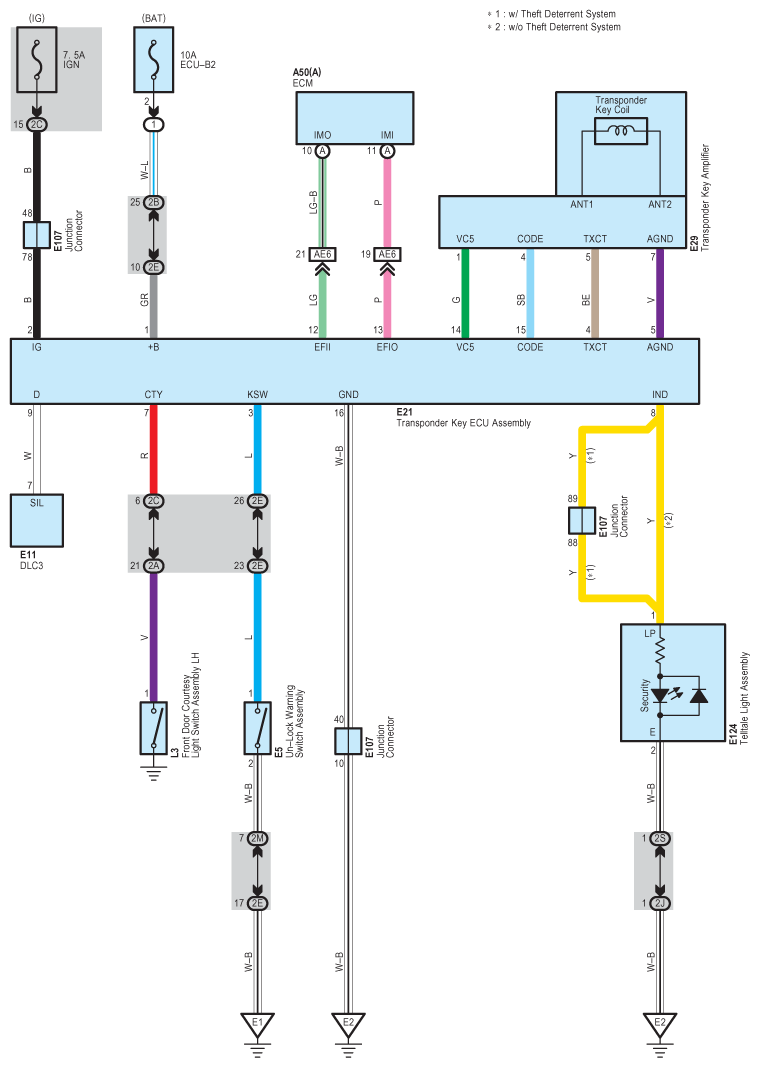

Fig 1: Engine Immobilizer System Wiring Diagram (W/O Smart Key System Except TMC Made)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
