Starting (w/o Smart Key System) (Except TMC Made): Notes

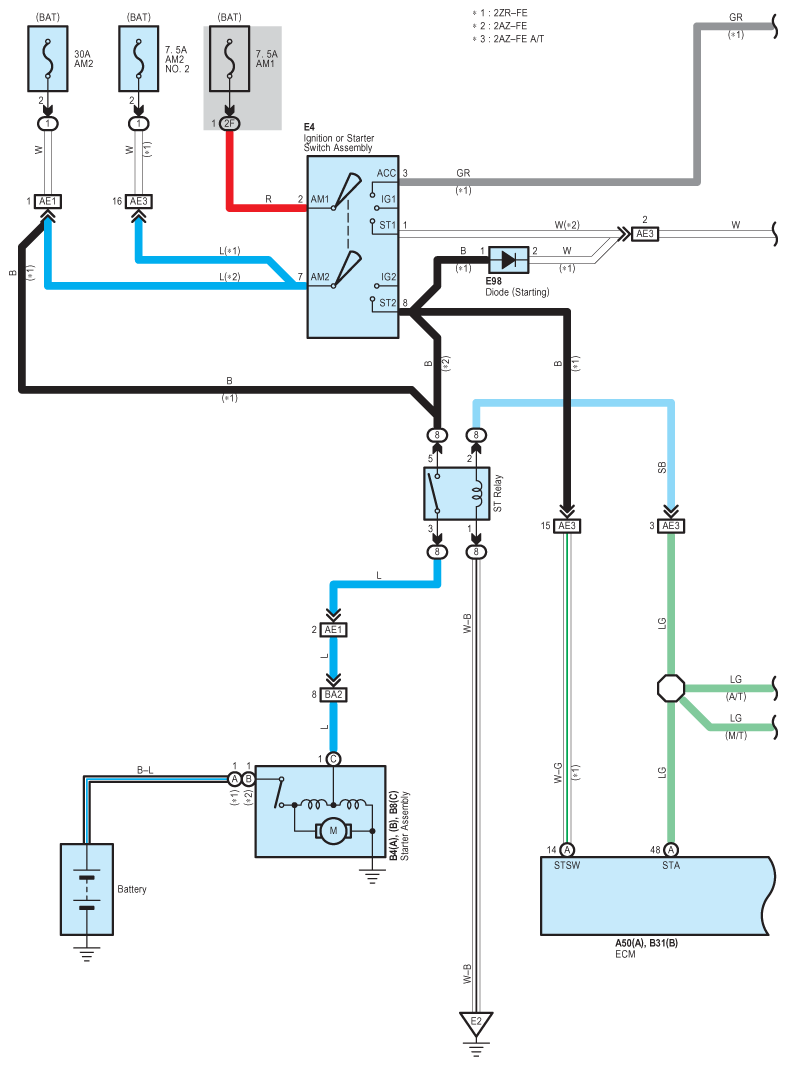

Fig 1: Starting W/O Smart Key System (Except TMC Made; 1 Of 2)
G09106563Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

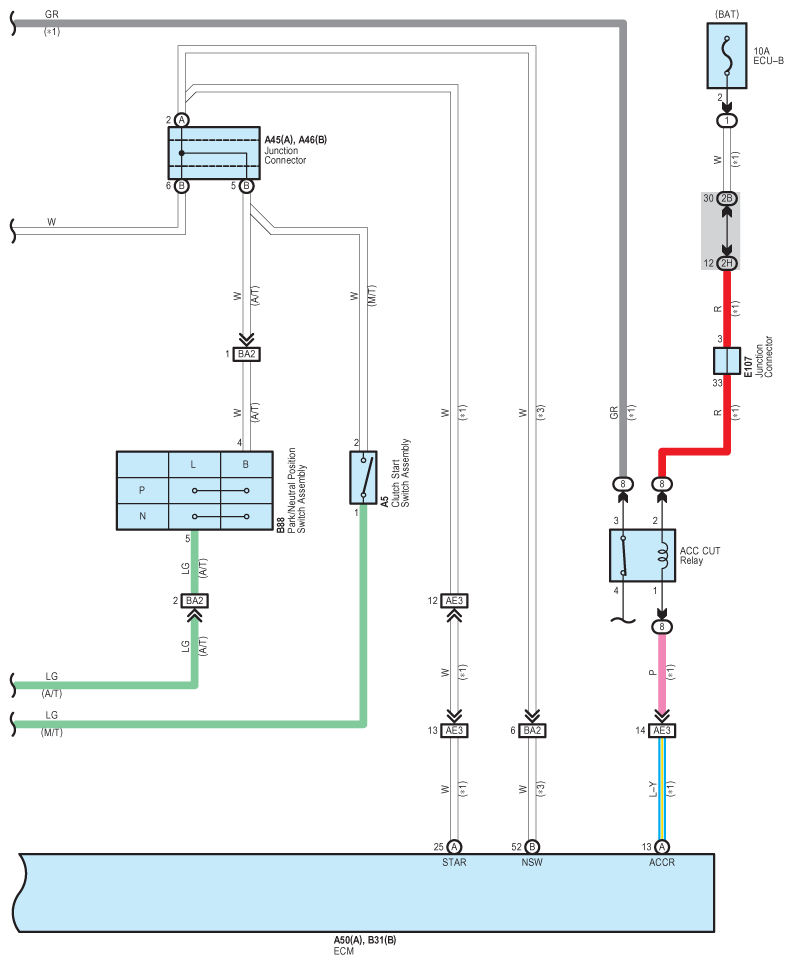

Fig 2: Starting W/O Smart Key System (Except TMC Made; 2 Of 2)
G09106564Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
