Toyota
›
2013
›
Corolla Base, Standard Trans
›
Repair and Diagnosis
›
Electrical
›
Body Electrical
›
OEM System Circuits
›
Back-Up Light (TMC Made)
›
Notes
Back-Up Light (TMC Made): Notes

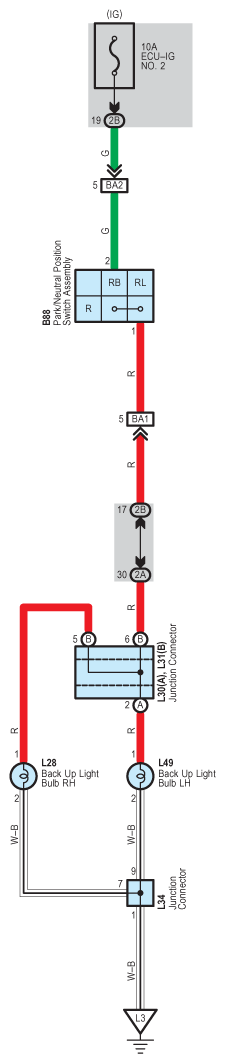

Fig 1: Back-Up Light System Wiring Diagram (TMC Made)
