EPS (Except TMC Made): Notes

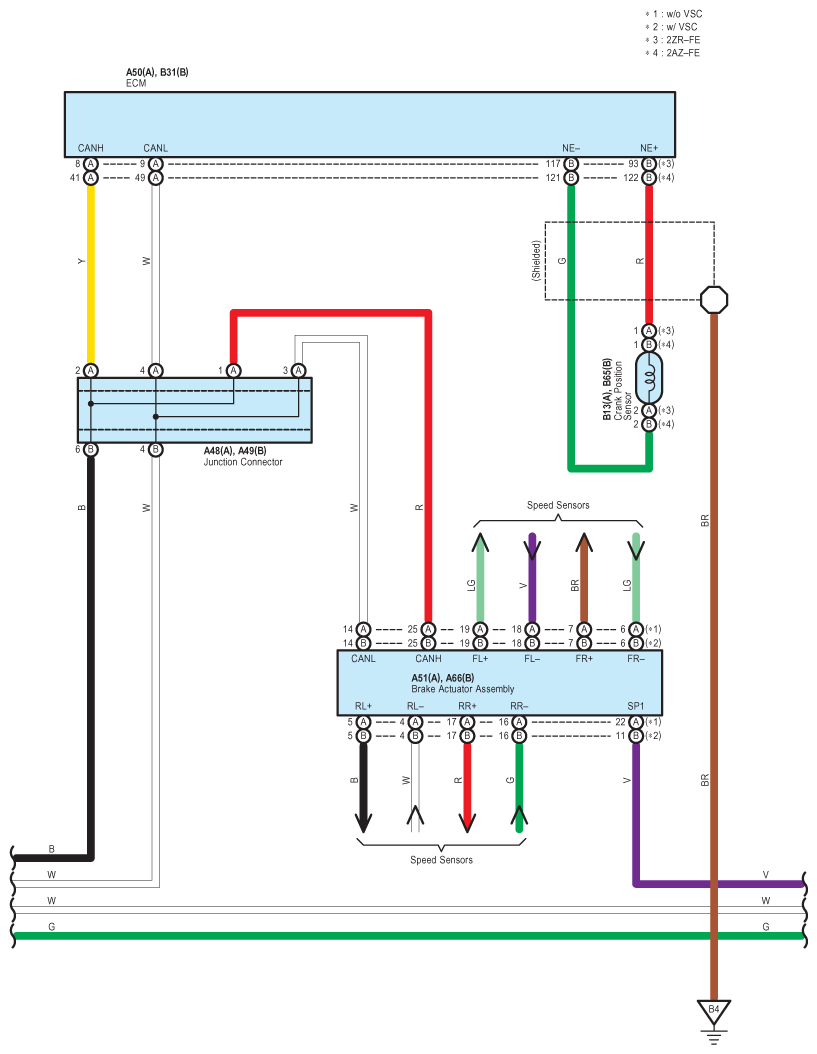

Fig 1: EPS System Wiring Diagram (Except TMC Made; 1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

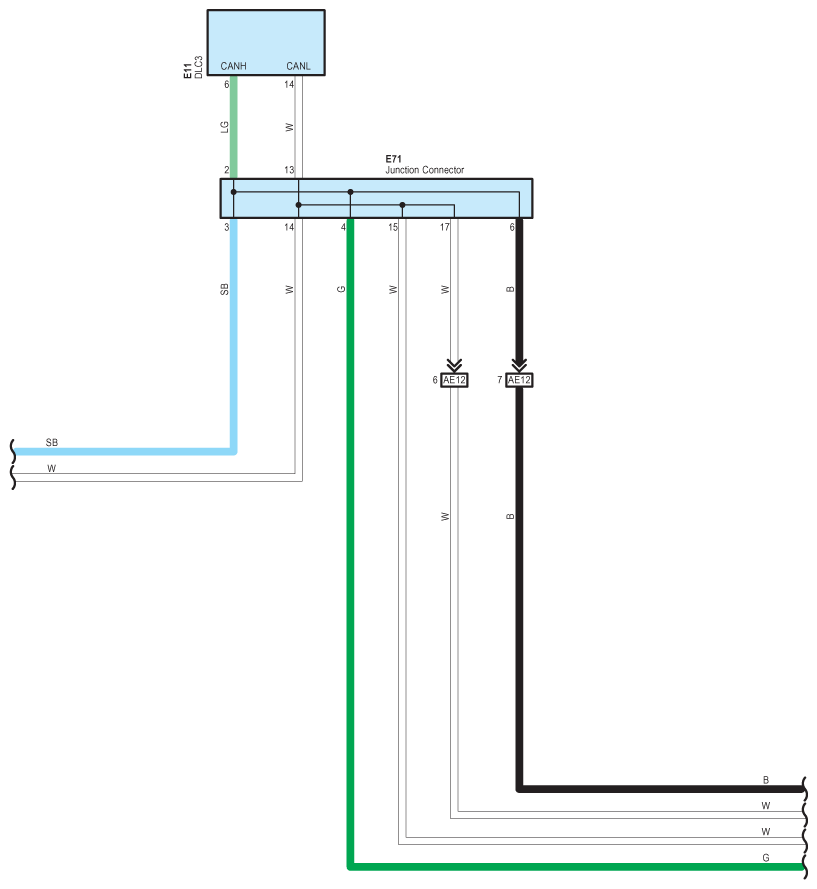

Fig 2: EPS System Wiring Diagram (Except TMC Made; 2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

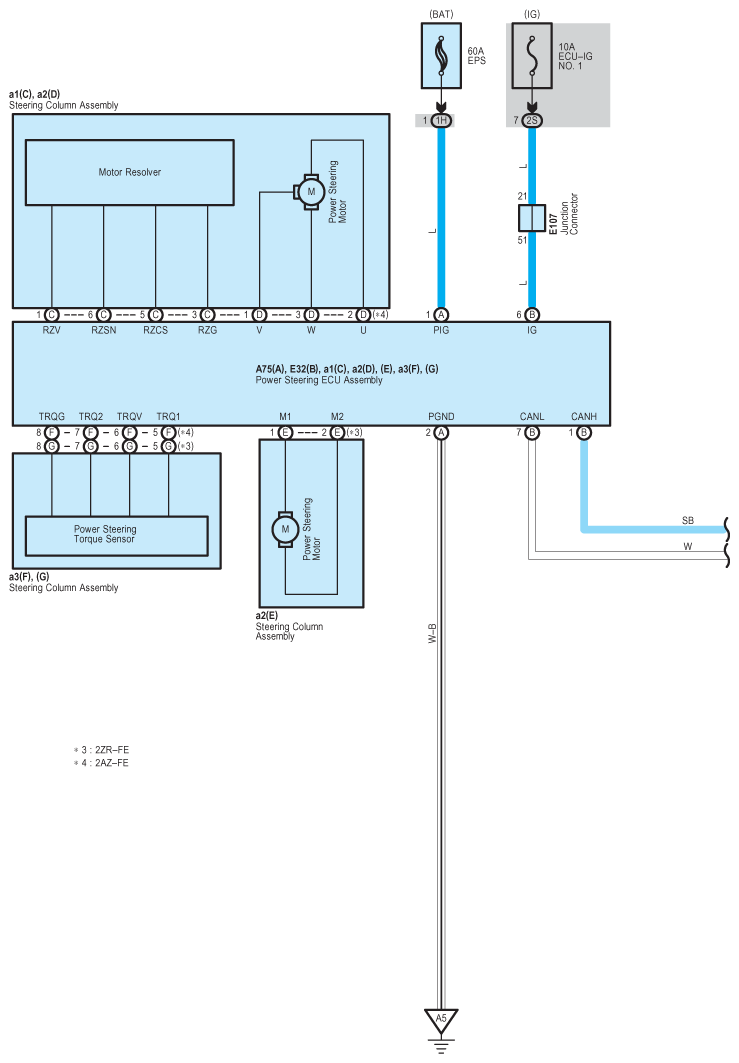

Fig 3: EPS System Wiring Diagram (Except TMC Made; 3 Of 4)

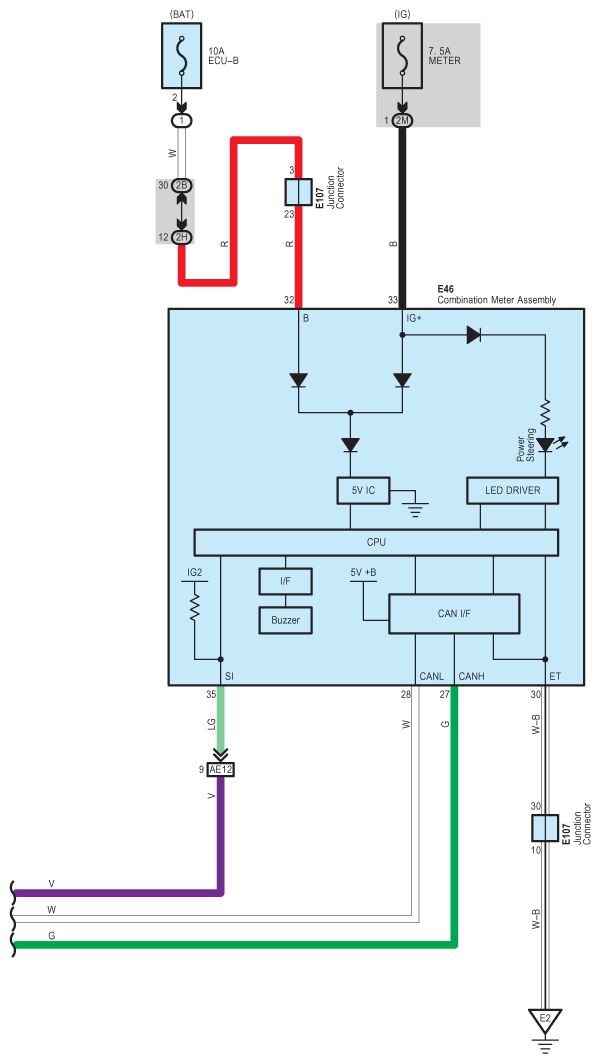

Fig 4: EPS System Wiring Diagram (Except TMC Made; 5 Of 4)
