Ignition (Except TMC Made): Notes

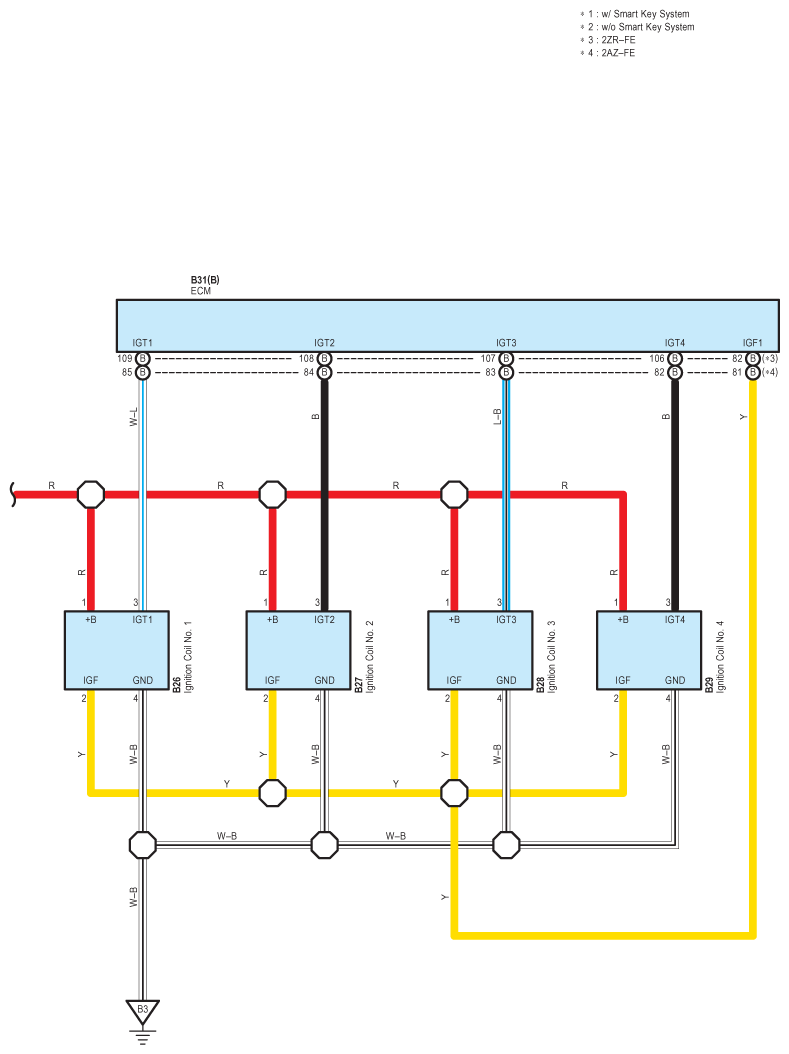

Fig 1: Ignition System Wiring Diagram (Except TMC Made; 1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

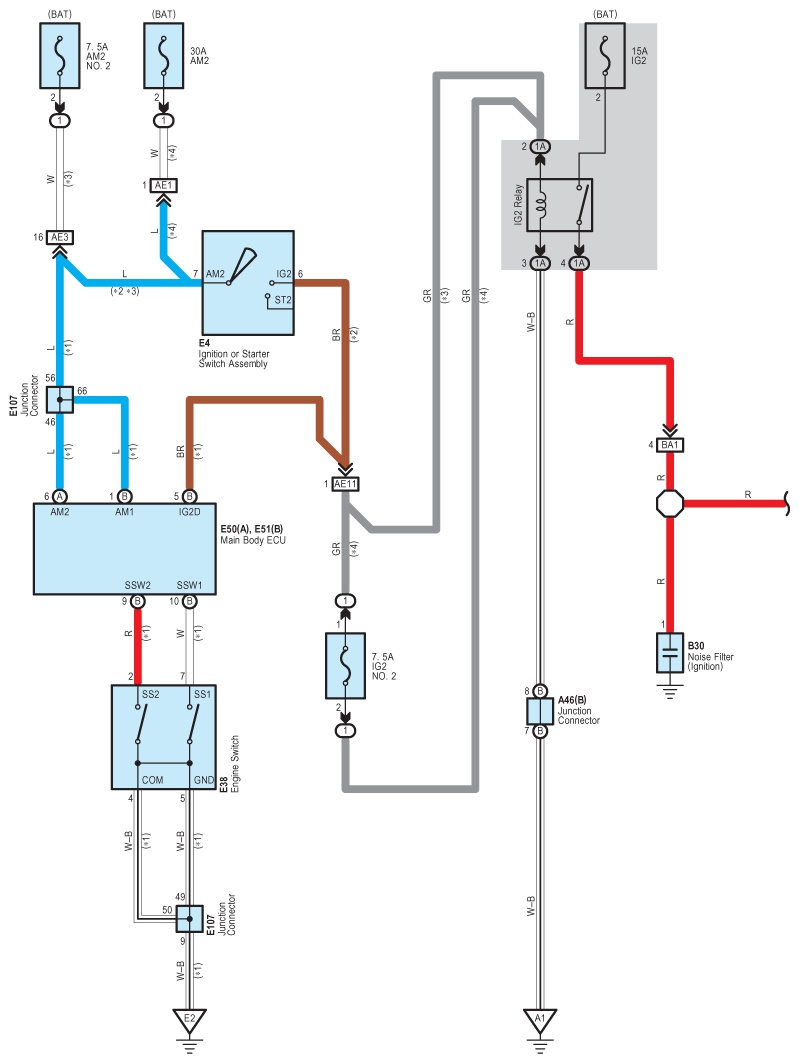

Fig 2: Ignition System Wiring Diagram (Except TMC Made; 2 Of 2)
