Interior Light (TMC Made): Notes

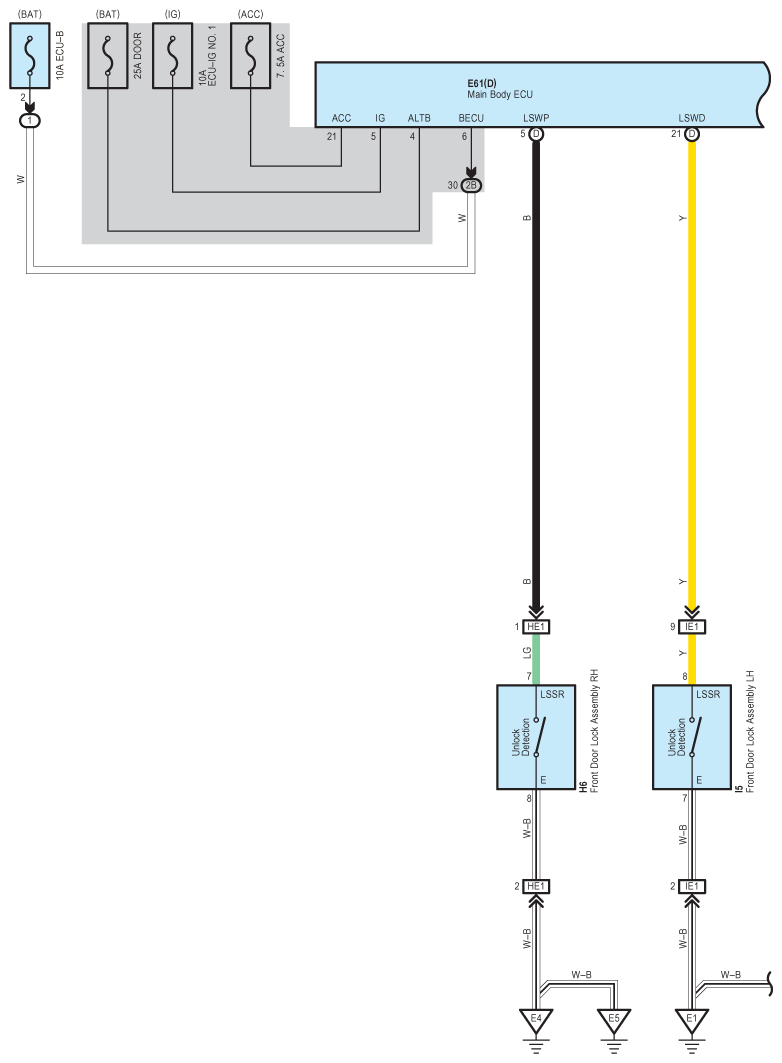

Fig 1: Interior Light System Wiring Diagram (TMC Made; 1 Of 3)
G09106461Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

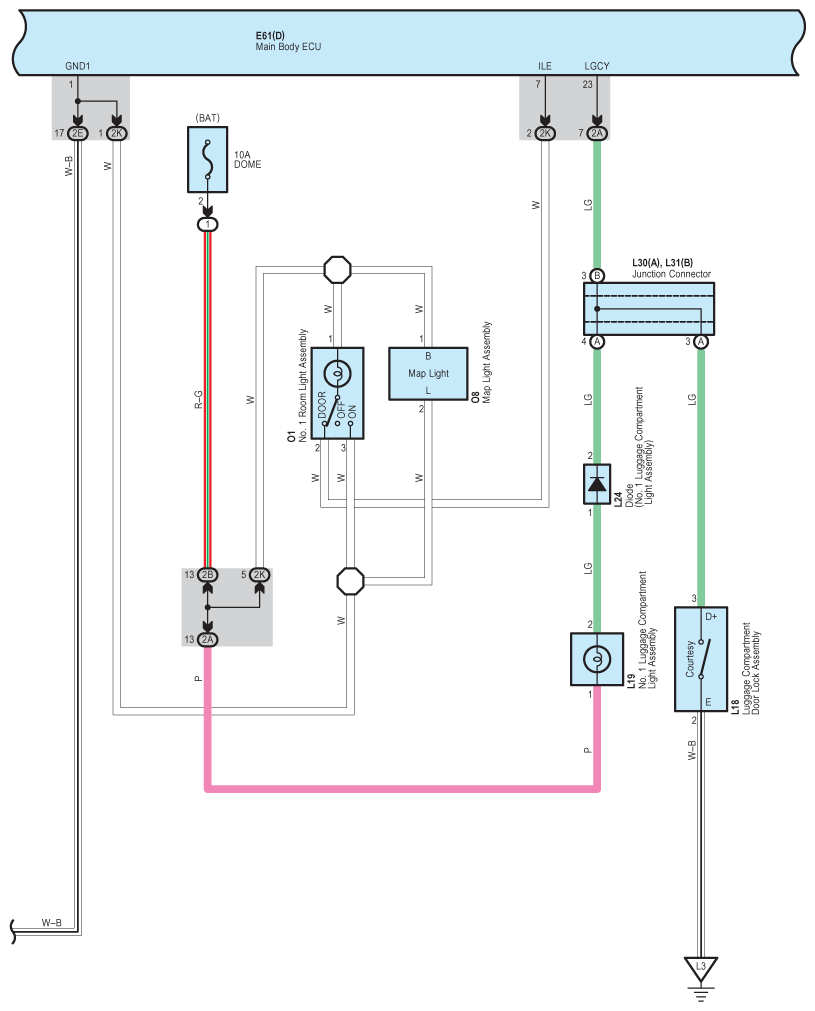

Fig 2: Interior Light System Wiring Diagram (TMC Made; 2 Of 3)
G09106462Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

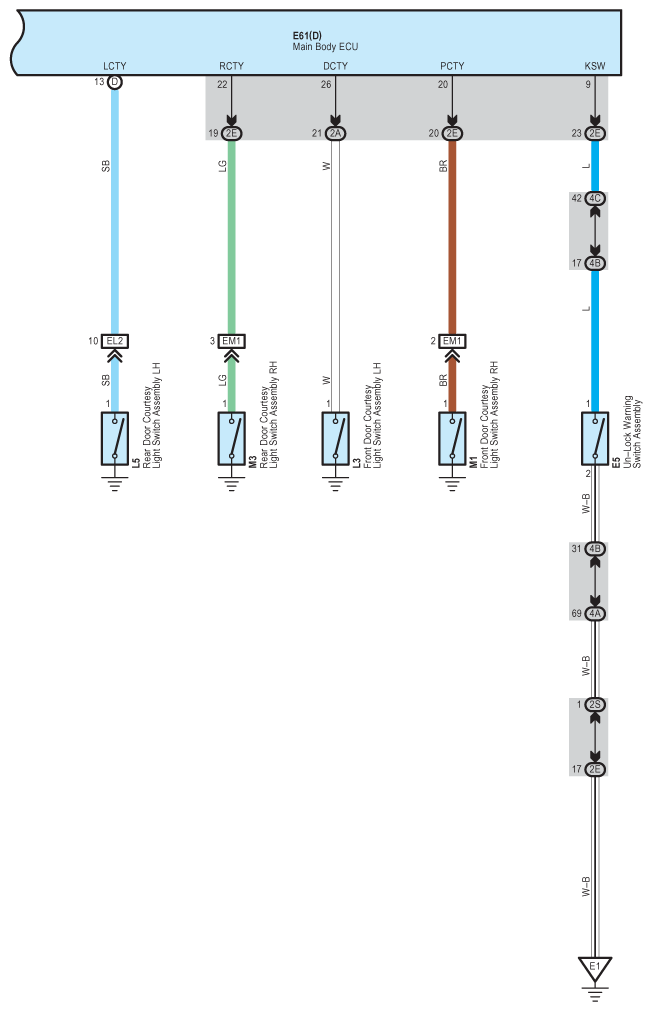

Fig 3: Interior Light System Wiring Diagram (TMC Made; 3 Of 3)
G09106463Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
