Manual Air Conditioning (Except TMC Made): Notes

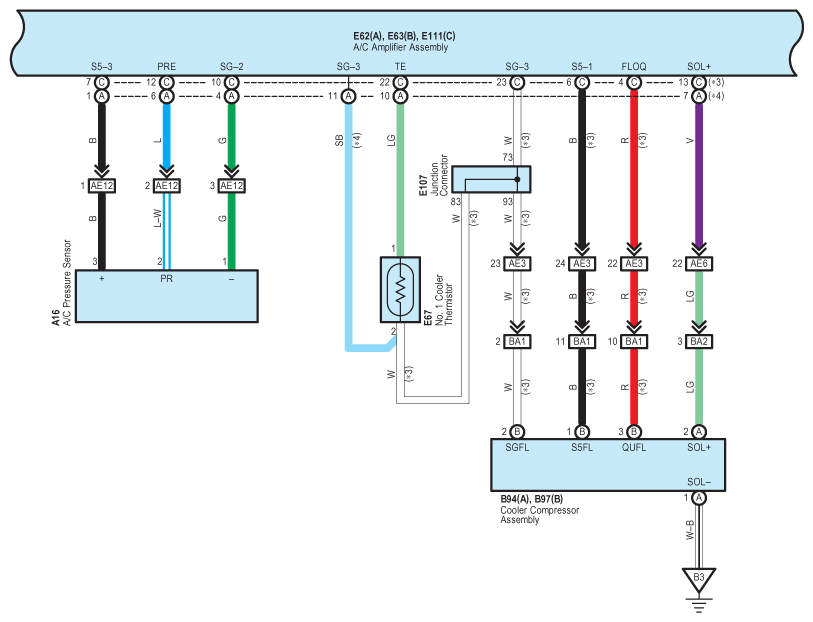

Fig 1: Manual Air Conditioning System Wiring Diagram (Except TMC Made; 1 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

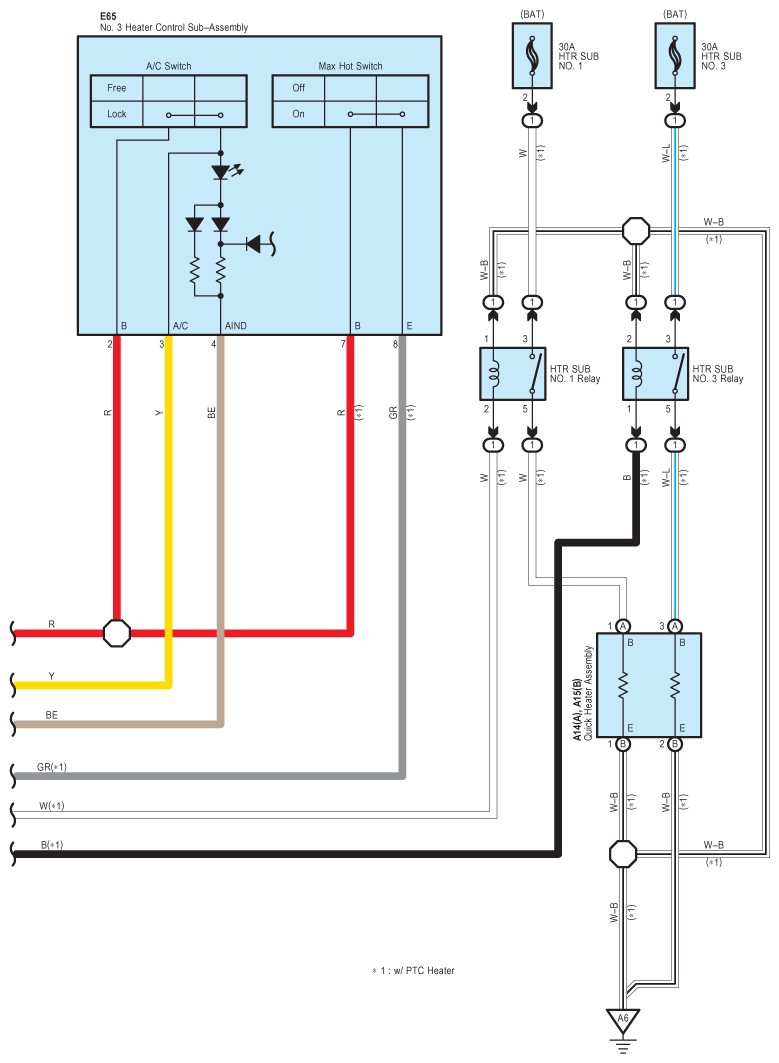

Fig 2: Manual Air Conditioning System Wiring Diagram (Except TMC Made; 2 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

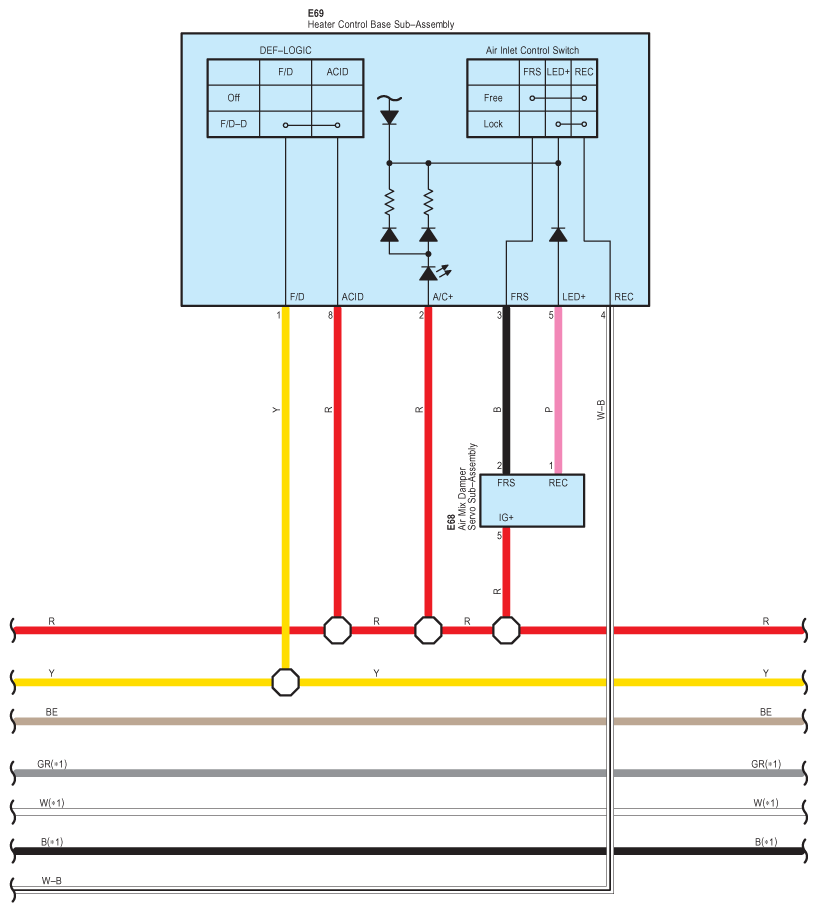

Fig 3: Manual Air Conditioning System Wiring Diagram (Except TMC Made; 3 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

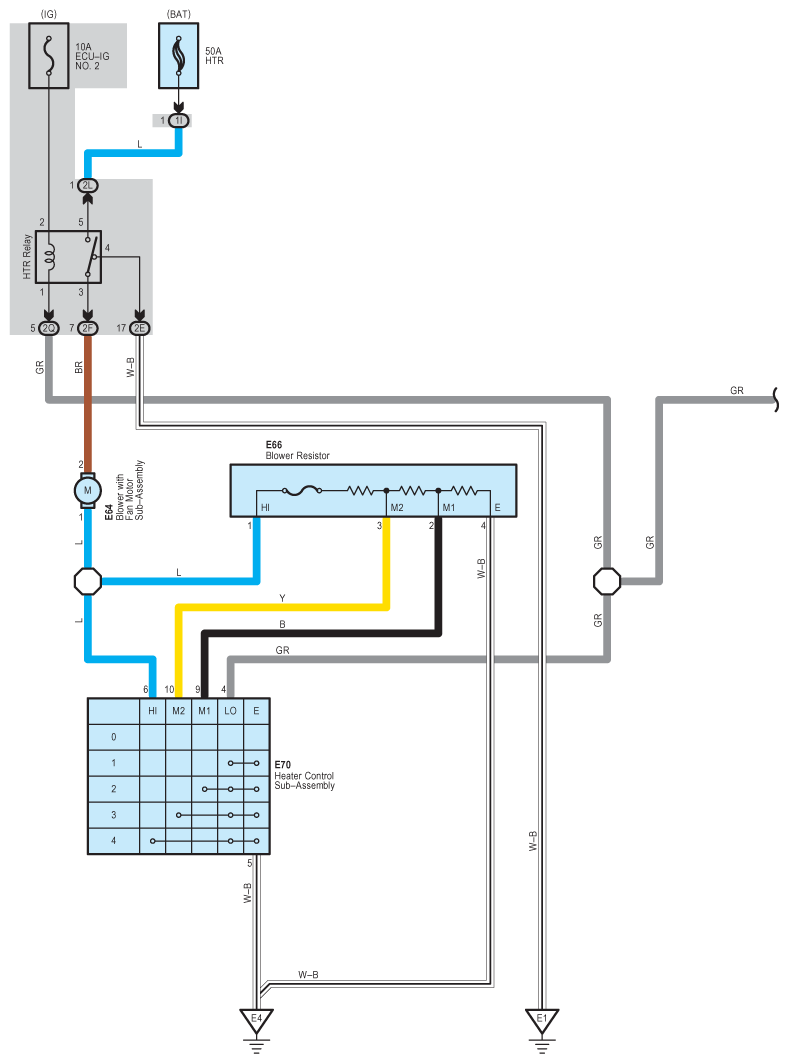

Fig 4: Manual Air Conditioning System Wiring Diagram (Except TMC Made; 4 Of 6)

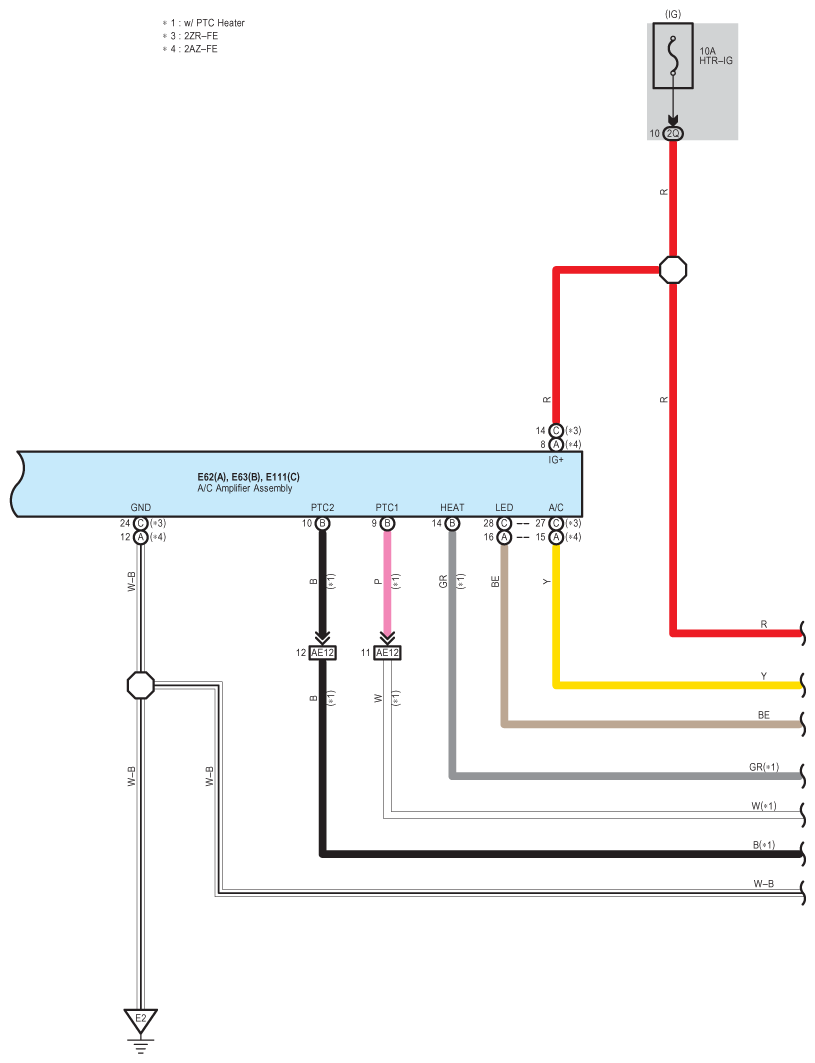

Fig 5: Manual Air Conditioning System Wiring Diagram (Except TMC Made; 5 Of 6)

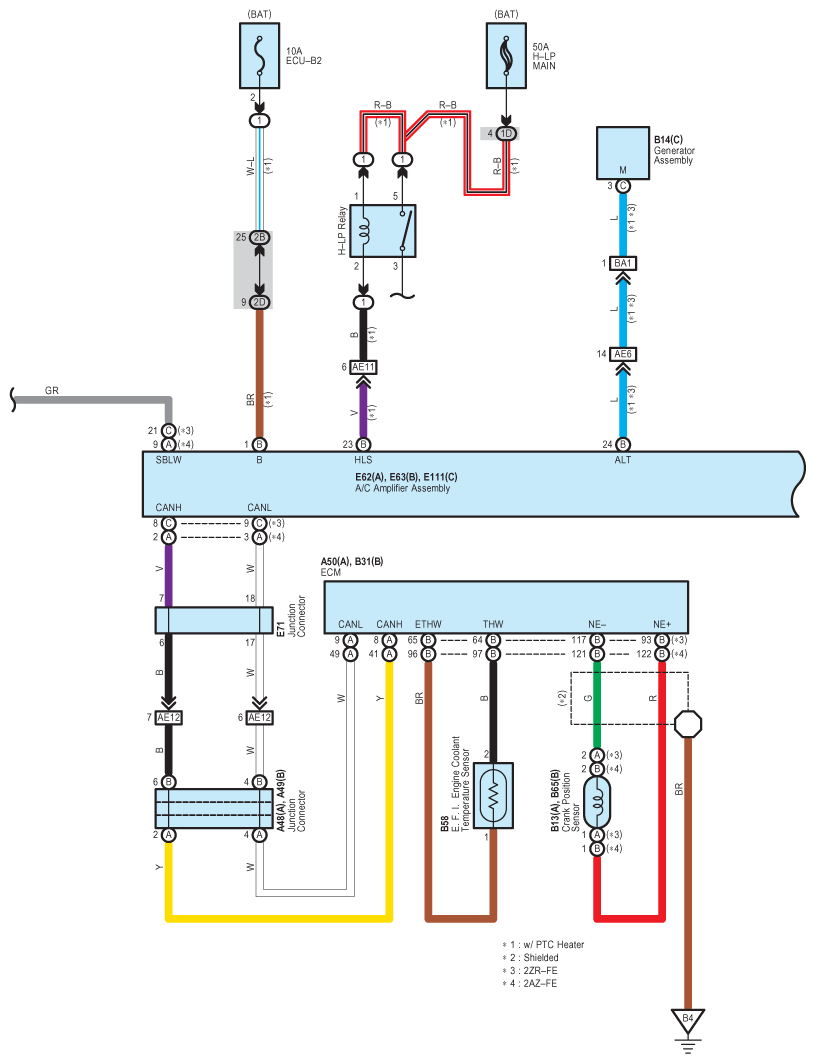

Fig 6: Manual Air Conditioning System Wiring Diagram (Except TMC Made; 6 Of 6)
