Audio System and Navigation System (TMC Made): Notes

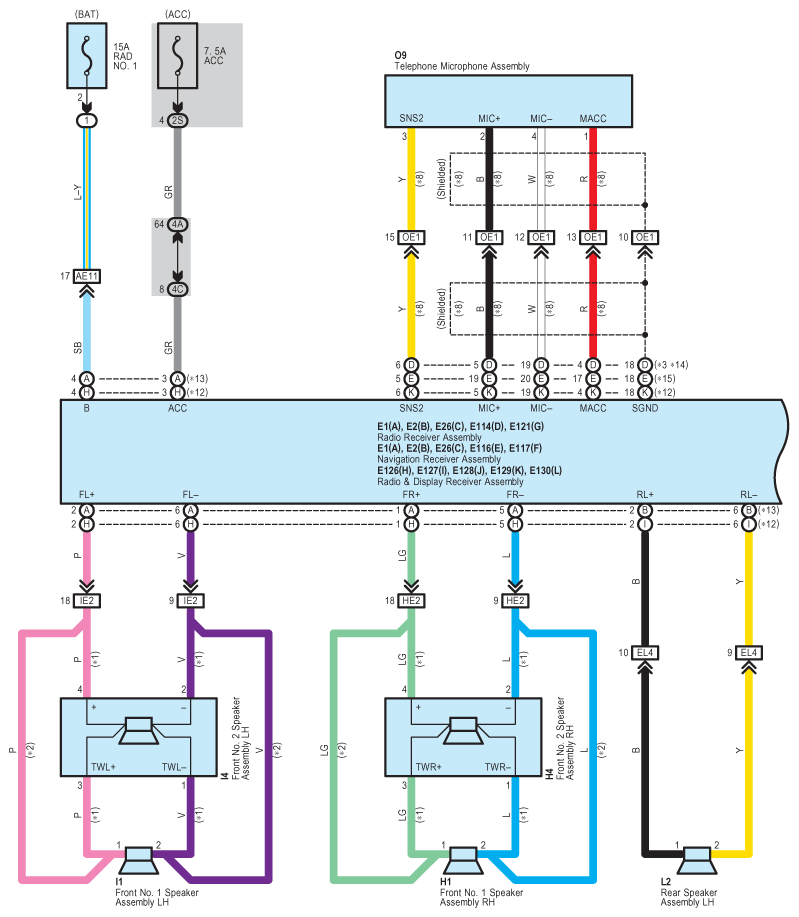

Fig 1: Audio And Navigation System Wiring Diagram (TMC Made; 1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

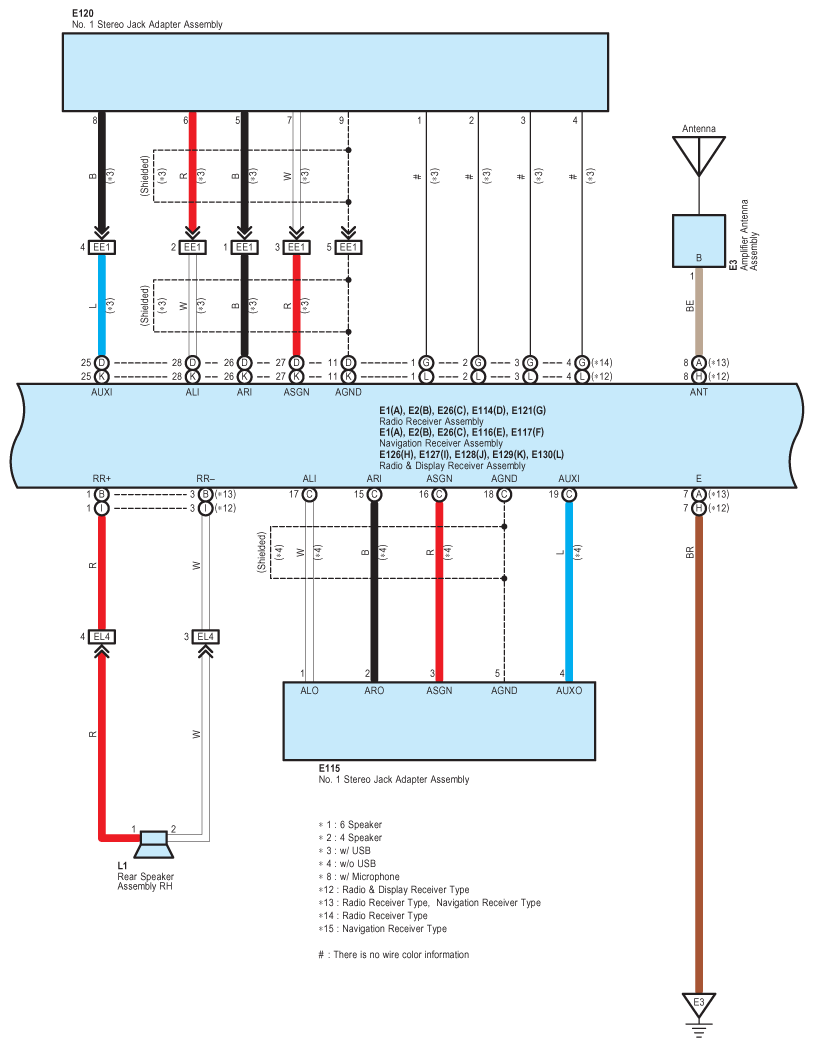

Fig 2: Audio And Navigation System Wiring Diagram (TMC Made; 2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

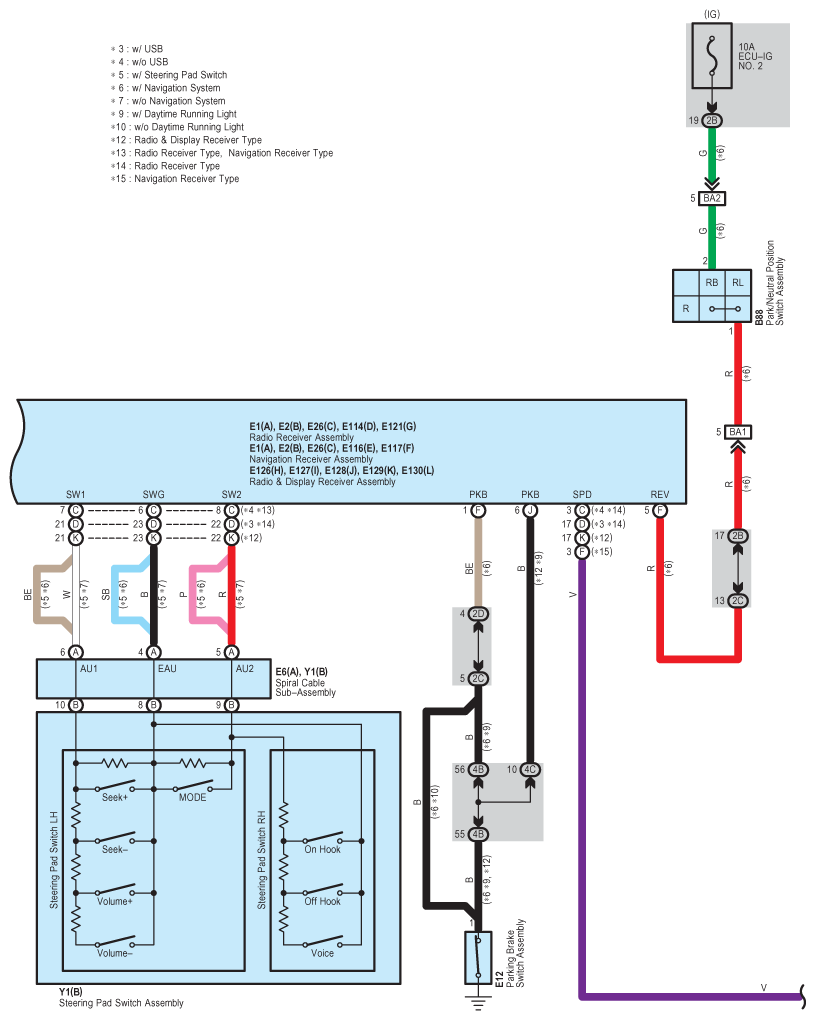

Fig 3: Audio And Navigation System Wiring Diagram (TMC Made; 3 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Audio And Navigation System Wiring Diagram (TMC Made; 4 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
