OEM System Circuits: Charging: Notes

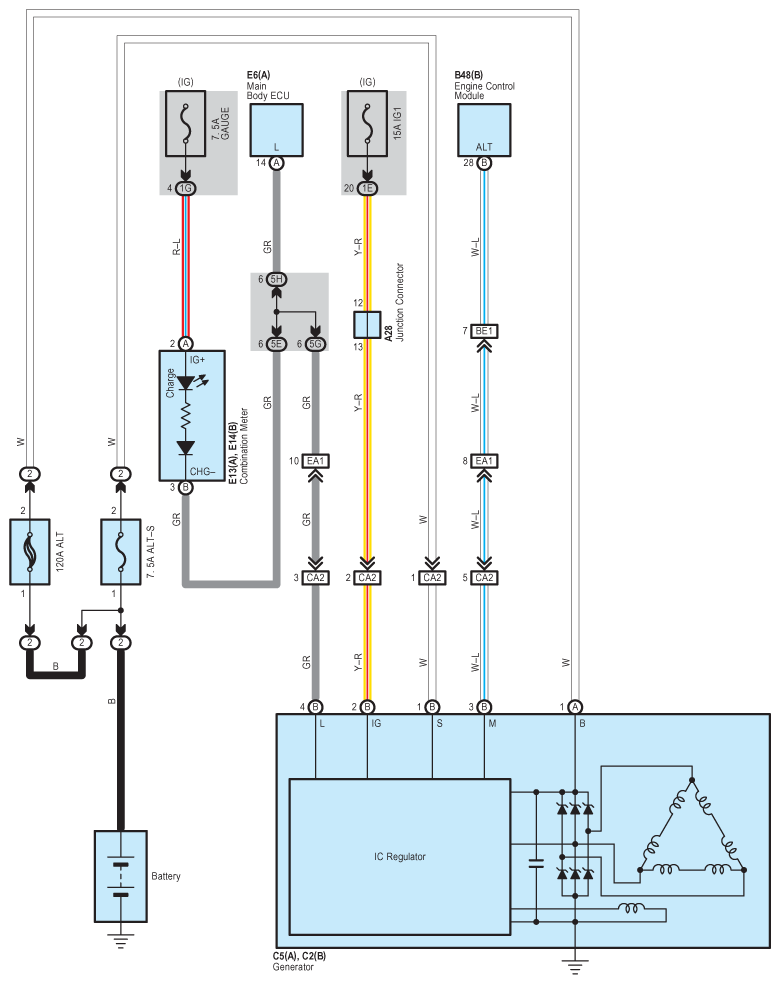

Fig 1: Charging Wiring Diagram

G09096977

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
