Clock
›
Notes
OEM System Circuits: Clock: Notes

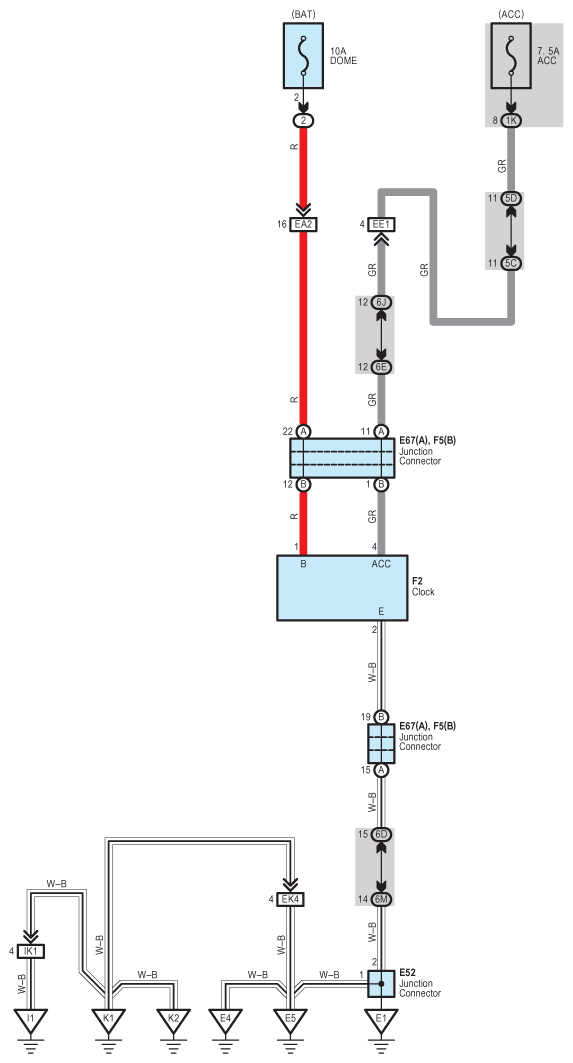

Fig 1: Clockwise Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
