Cruise Control: Notes — 2013 Toyota FJ Cruiser 4WD, Automatic T/Case Control Service Manual ~ FixVault

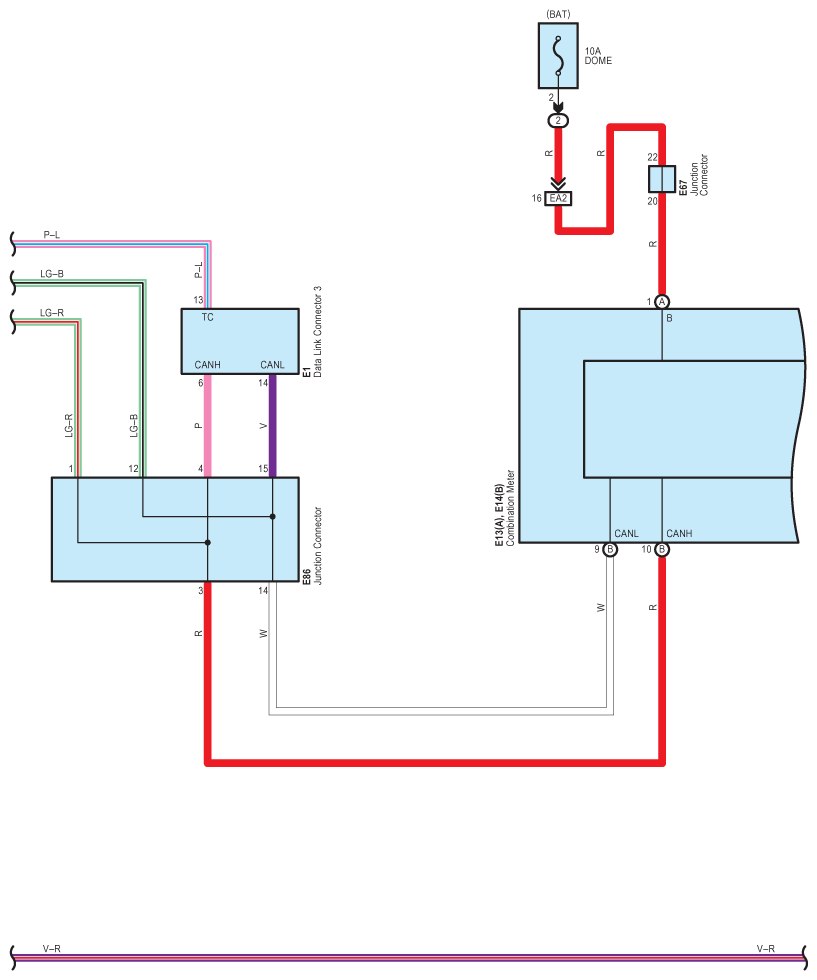

Fig 1: Cruise Control Wiring Diagram (1 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

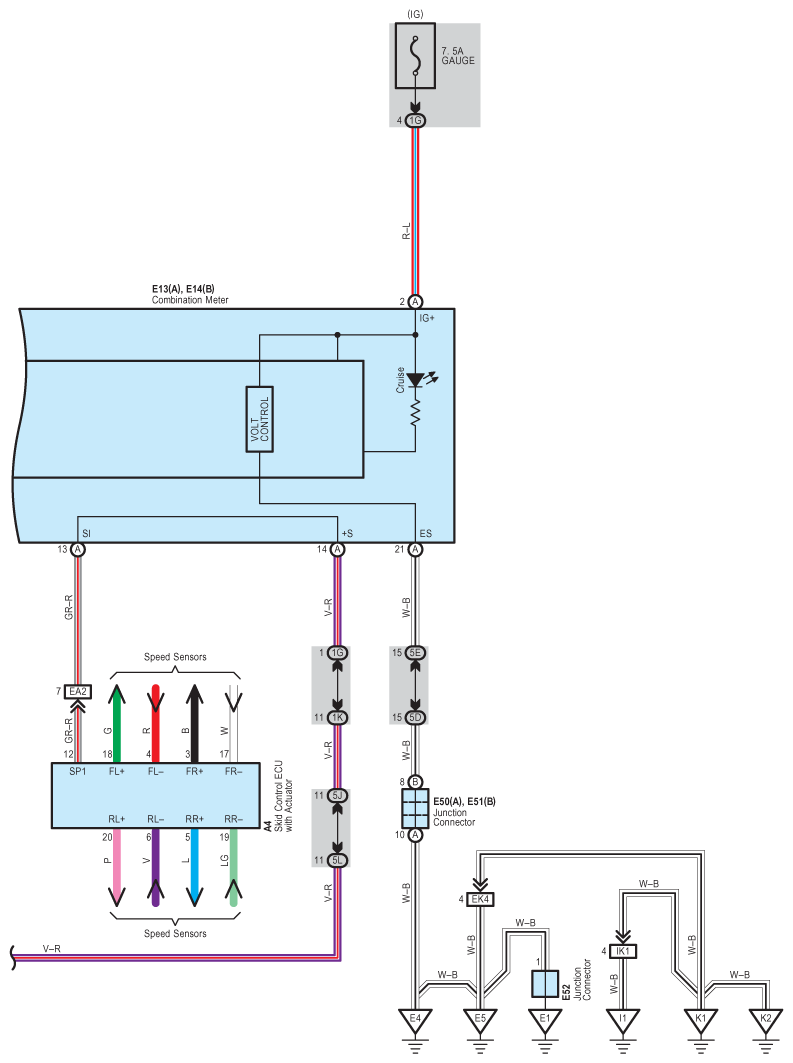

Fig 2: Cruise Control Wiring Diagram (2 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

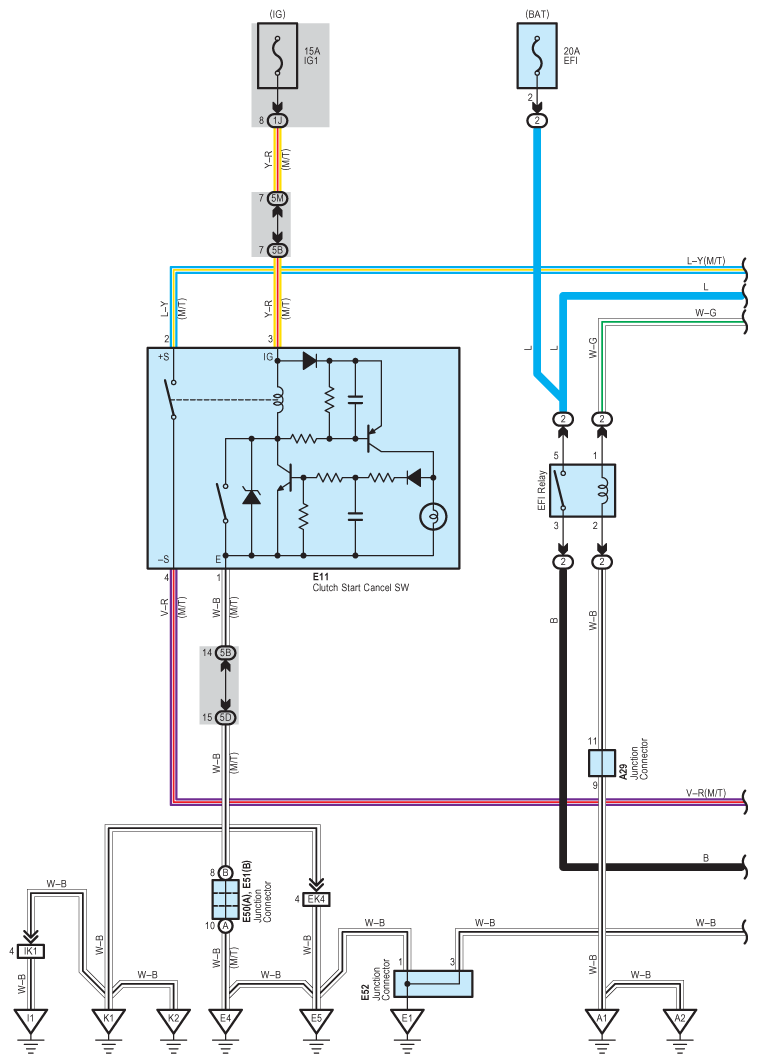

Fig 3: Cruise Control Wiring Diagram (3 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

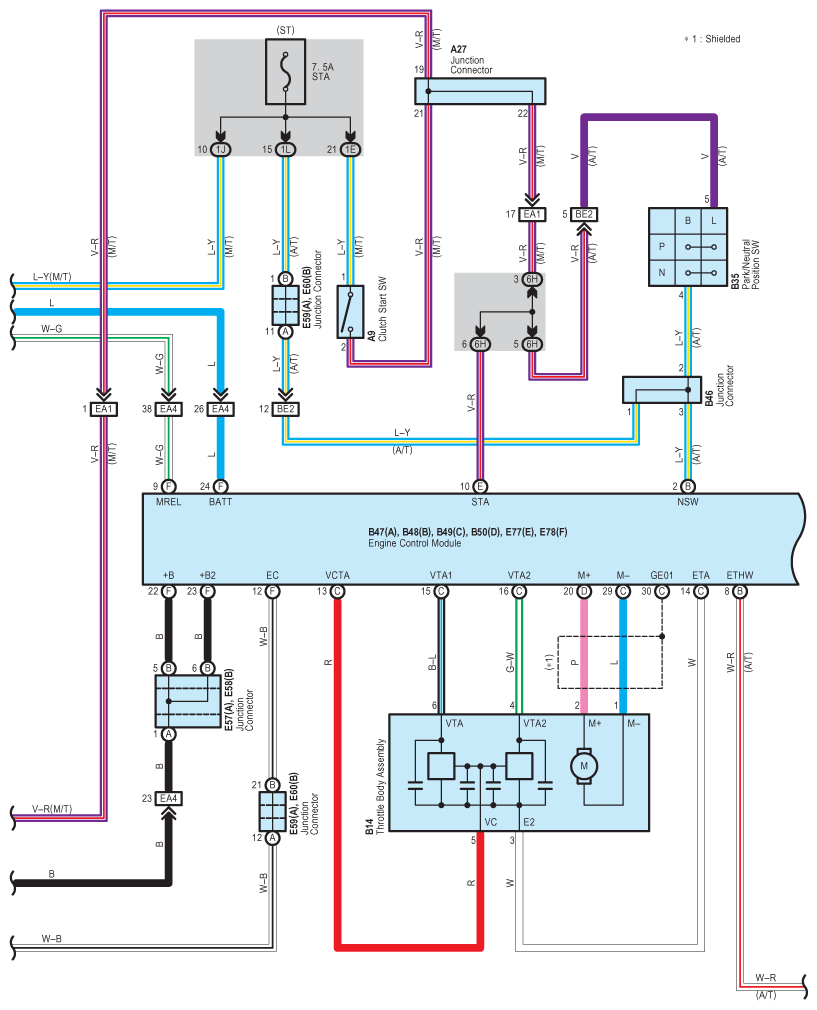

Fig 4: Cruise Control Wiring Diagram (4 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

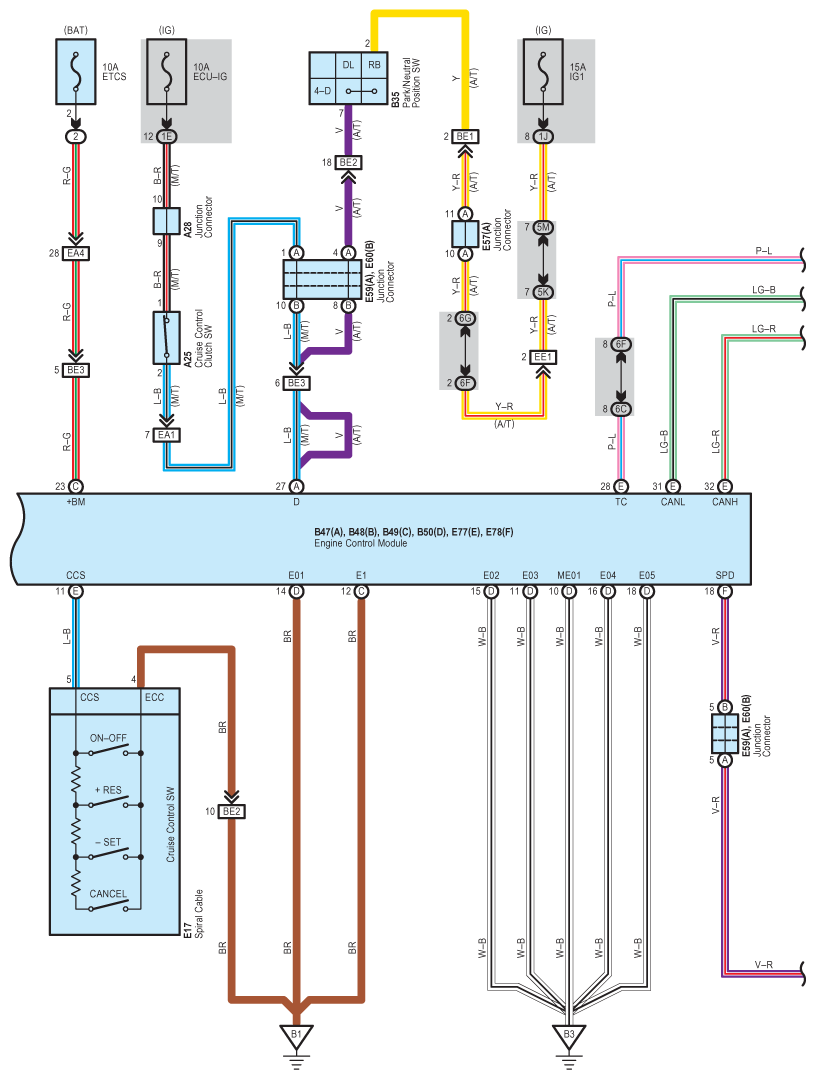

Fig 5: Cruise Control Wiring Diagram (5 Of 6)

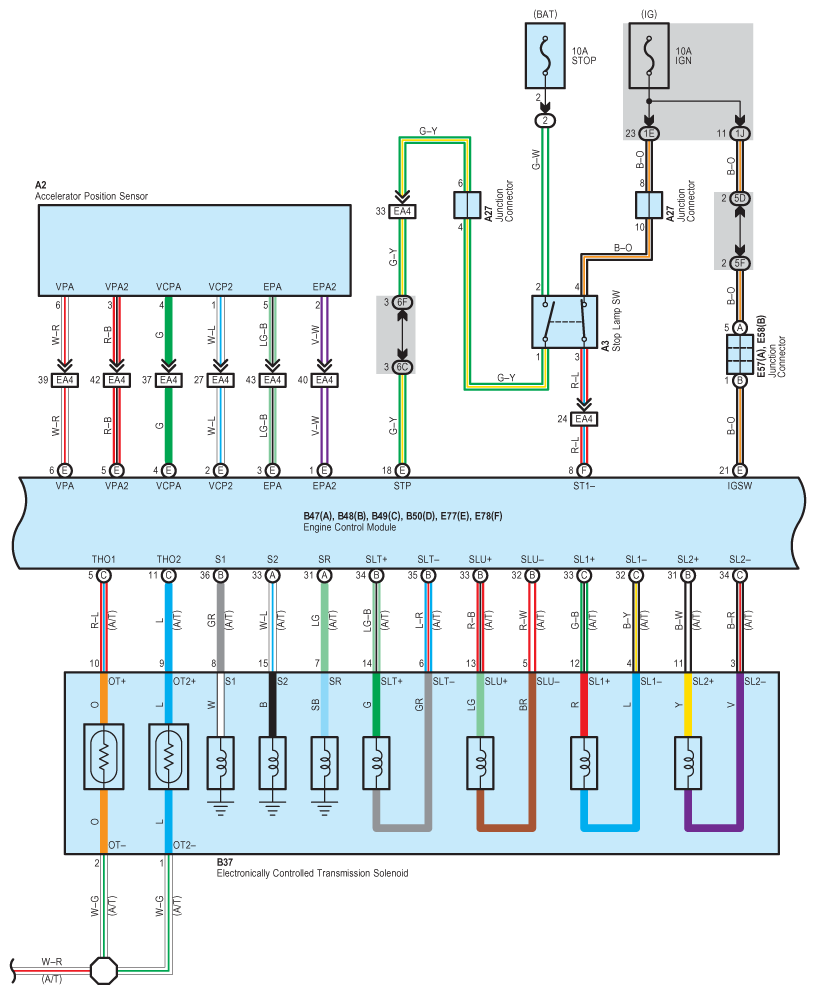

Fig 6: Cruise Control Wiring Diagram (6 Of 6)
