Interior Light: Notes

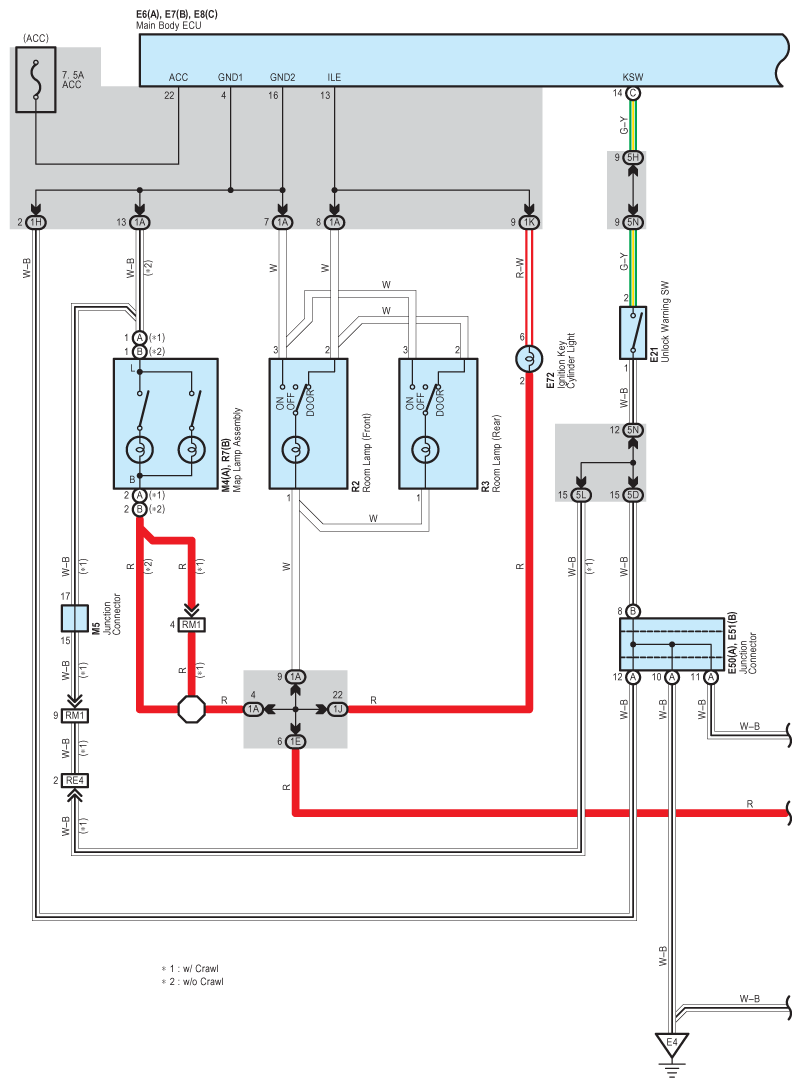

Fig 1: Interior Light Wiring Diagram (1 Of 7)

G09097009

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

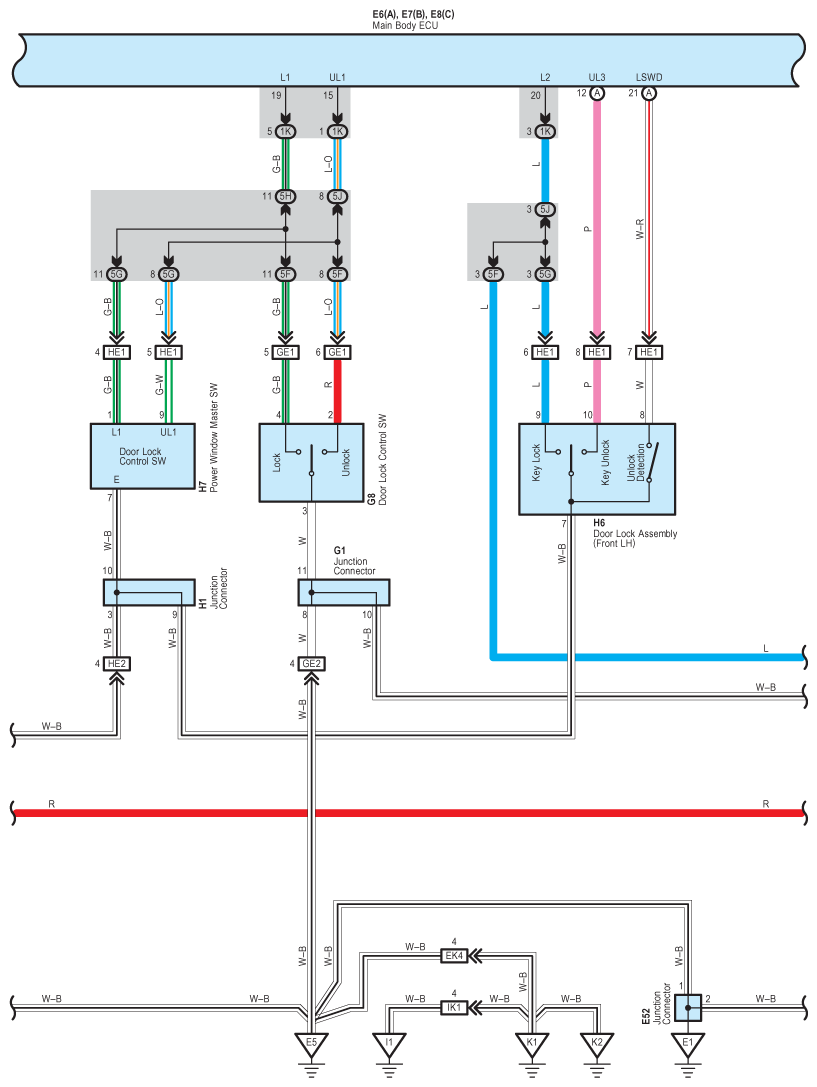

Fig 2: Interior Light Wiring Diagram (2 Of 7)

G09097010

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

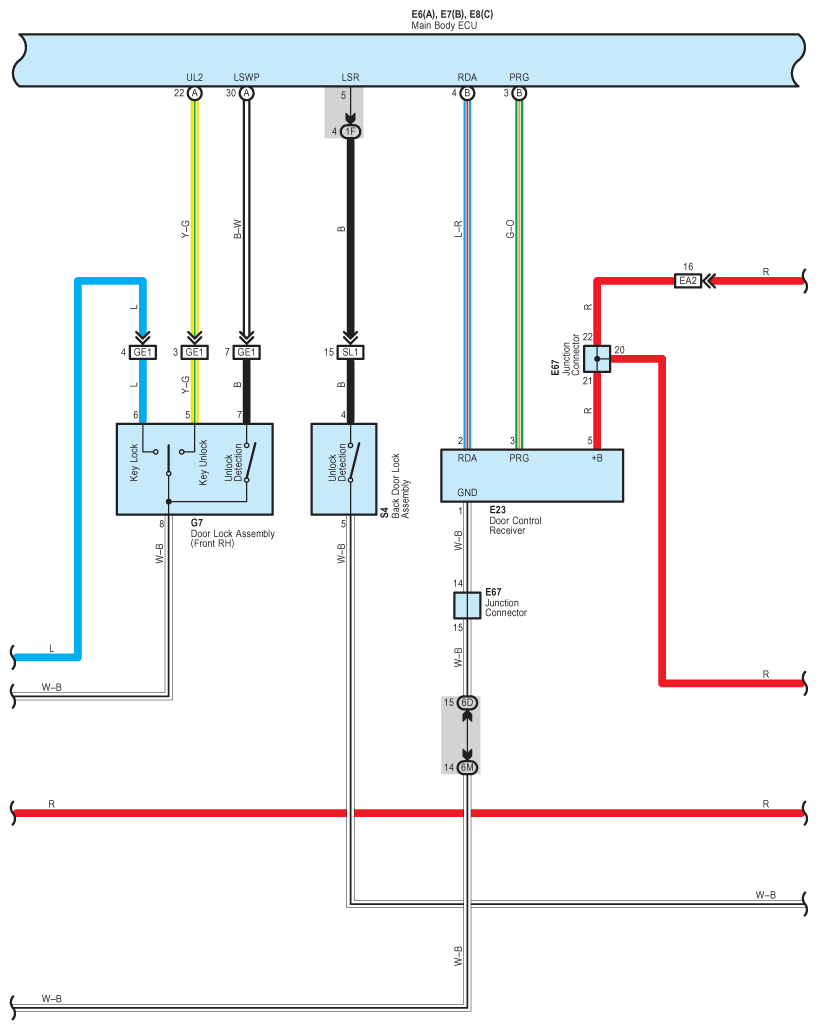

Fig 3: Interior Light Wiring Diagram (3 Of 7)

G09097011

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

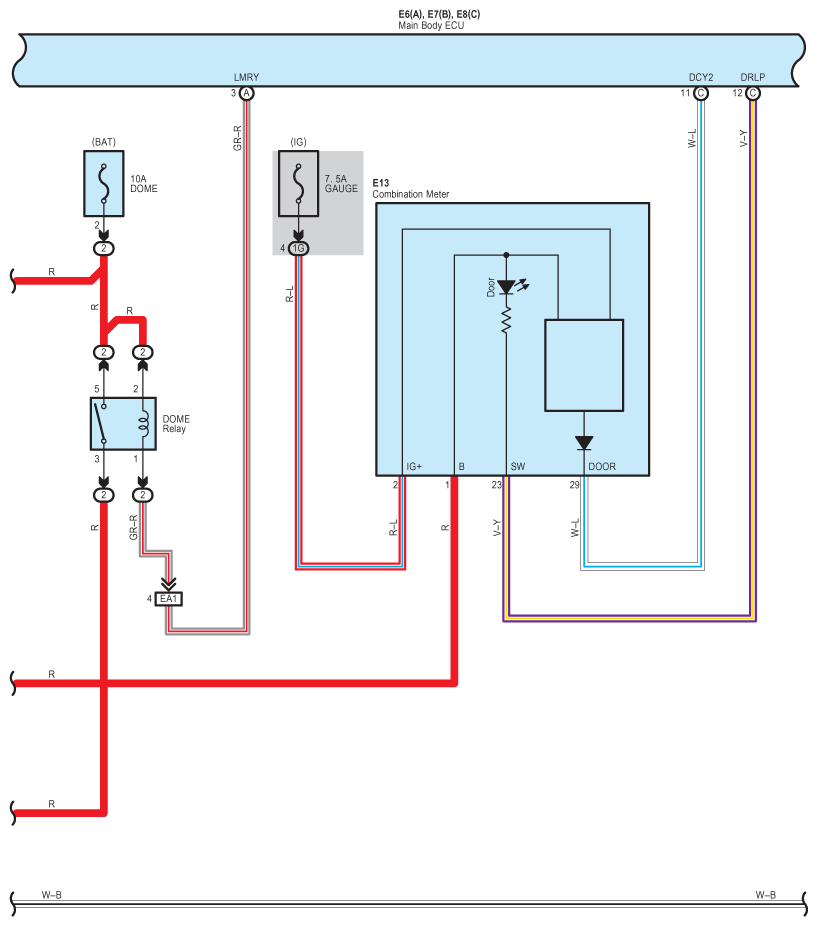

Fig 4: Interior Light Wiring Diagram (4 Of 7)

G09097012

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

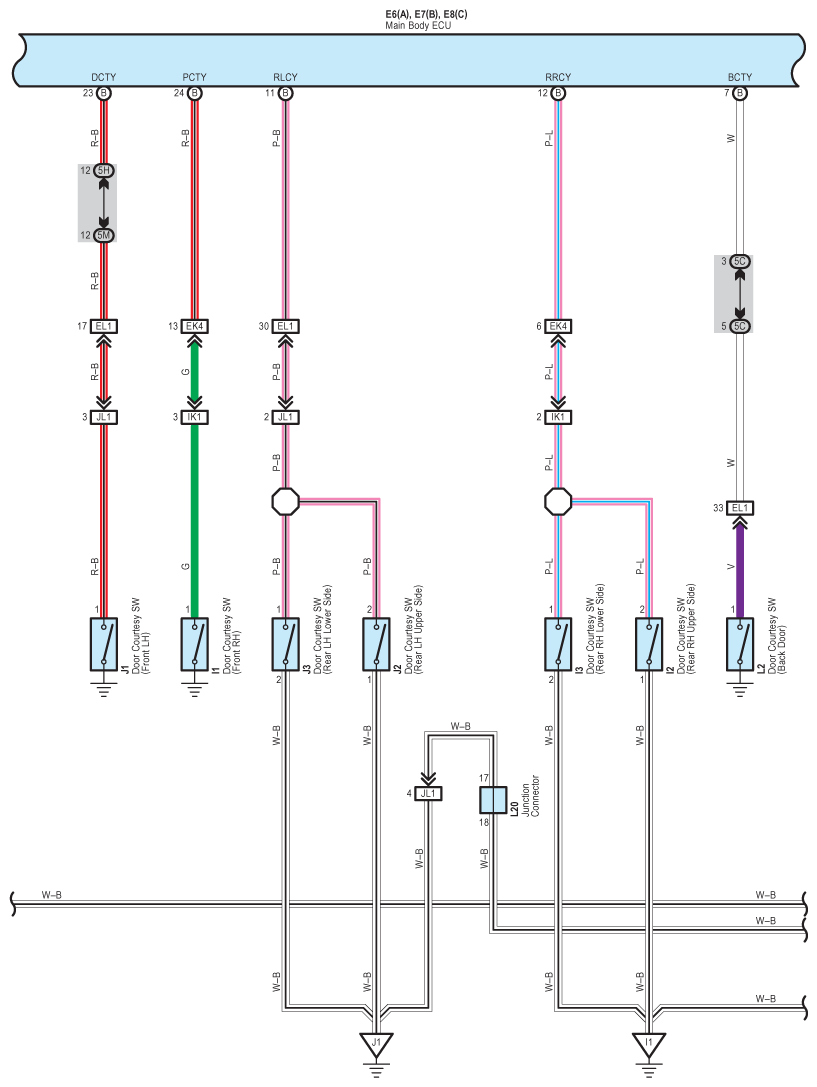

Fig 5: Interior Light Wiring Diagram (5 Of 7)

G09097013

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

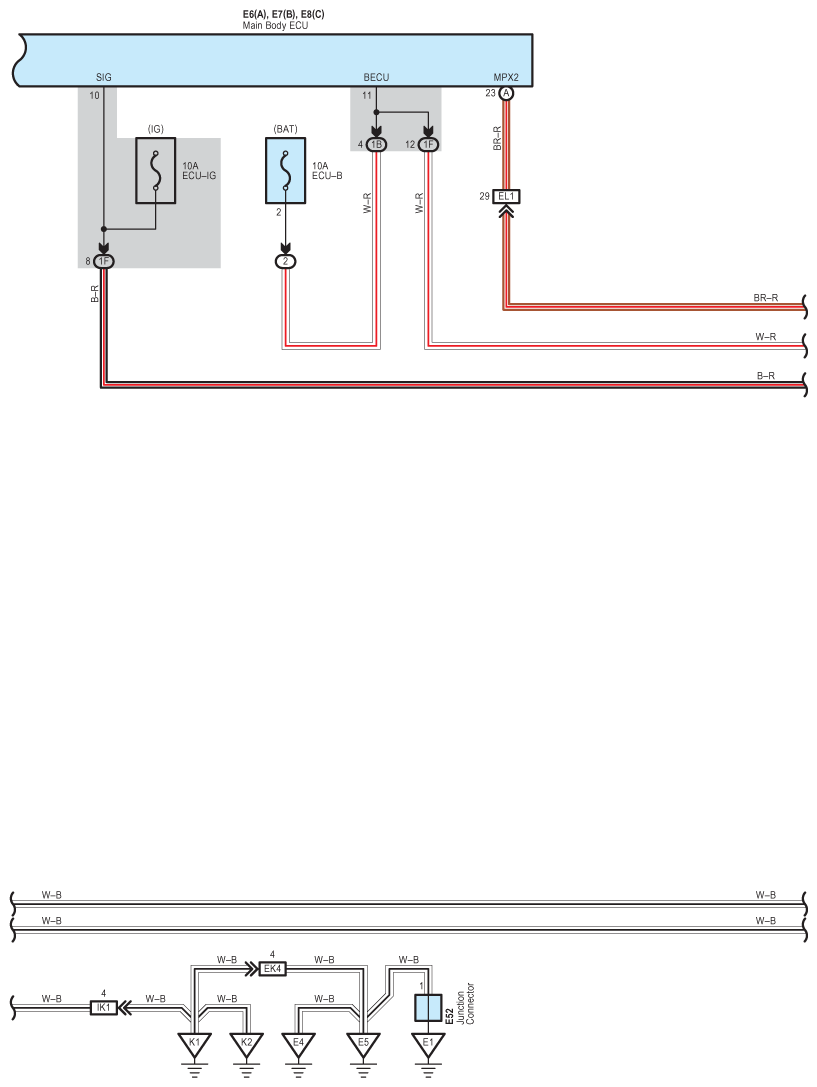

Fig 6: Interior Light Wiring Diagram (6 Of 7)

G09097014

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

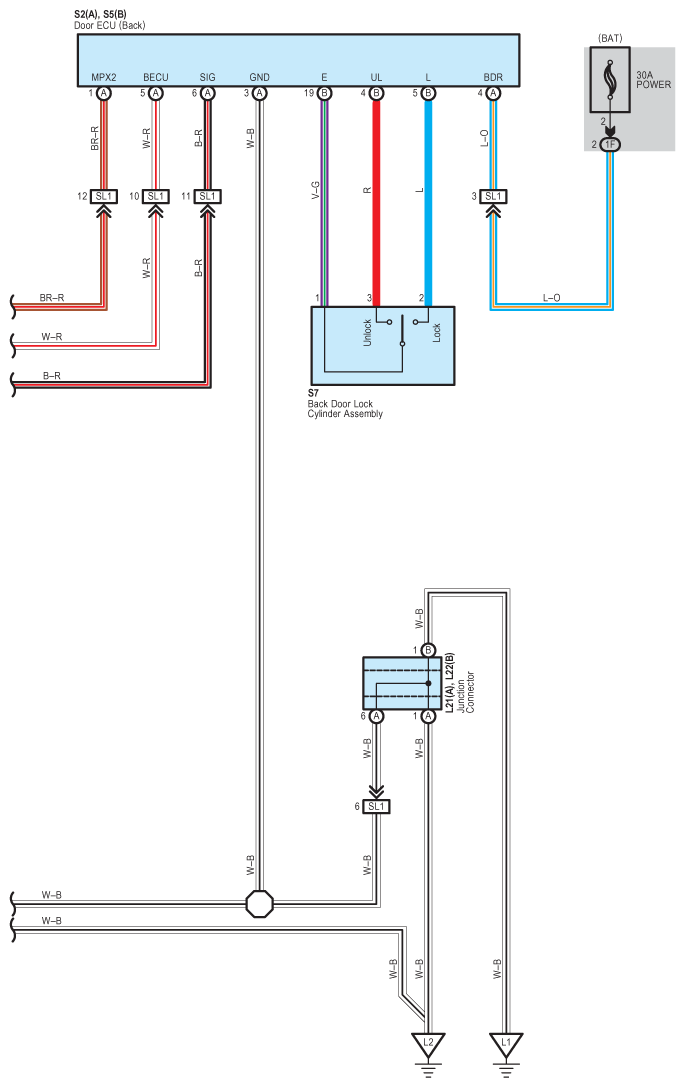

Fig 7: Interior Light Wiring Diagram (7 Of 7)

G09097015

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
